Dynamo Script - Join and Unjoin Elements with Order for Revit

$40.00
/
License
  • Are you a Student? Select the Educational Use.
This pair of Dynamo scripts automates joining and unjoining Revit elements in a controlled order, supporting categories like structural columns, floors, walls, and foundations. Ideal for BIM coordinators and MEP engineers cleaning models for accurate scheduling and coordination.
  • Digital Download
  • Revit Version: 2023
  • Dynamo Build: 2.17
  • Created by: Alfonso Davila

Free Products
Our Free Educational Use License is specifically designed for academic purposes. Under this license, RD Studio's free products can be utilized in educational settings, including classroom activities, academic projects, and other learning initiatives. When using a product, you are required to grant full credit to RD Studio, with an active link for online versions. Additionally, if a project using our product is showcased on social media, you must credit RD Studio with an active tag to our profile. Please note that commercial use of these products under this license is strictly prohibited.

Educational Use
Products labeled "Educational Use" are exclusively for student use in academic settings. These products are intended to support educational development and must not be employed for any commercial purposes.

Commercial Use
With the purchase of a Commercial Use License, you are authorized to use the product in commercial projects without the need to attribute RD Studio. However, the standard prohibitions on reproduction, distribution, and resale, as detailed in the "Strictly Forbidden" section, remain applicable.

University Multi-User License
The University Multi-User License is tailored for educational institutions, allowing up to 30 users, including students and teachers, to use our products for academic purposes. This license facilitates the use of our products in educational environments, such as classroom learning, academic research, and student projects. Redistribution or commercial use of these products under this license is not allowed.

Strictly Forbidden
You are not allowed to reproduce, distribute, copy or sell the contents of RD Studio at any circumstances. Products can’t be sold without being part of a bigger project or work combining RD Studio digital products with other graphics, modeling or digital elements. Also, you are not allowed to use products from RD Studio in similar or any competing services.

Zip Folders
To unzip a ZIP folder, right-click to select Extract Here.

How to Install Dynamo Scripts

1. Open Revit
2. From the Manage Tab > Dynamo

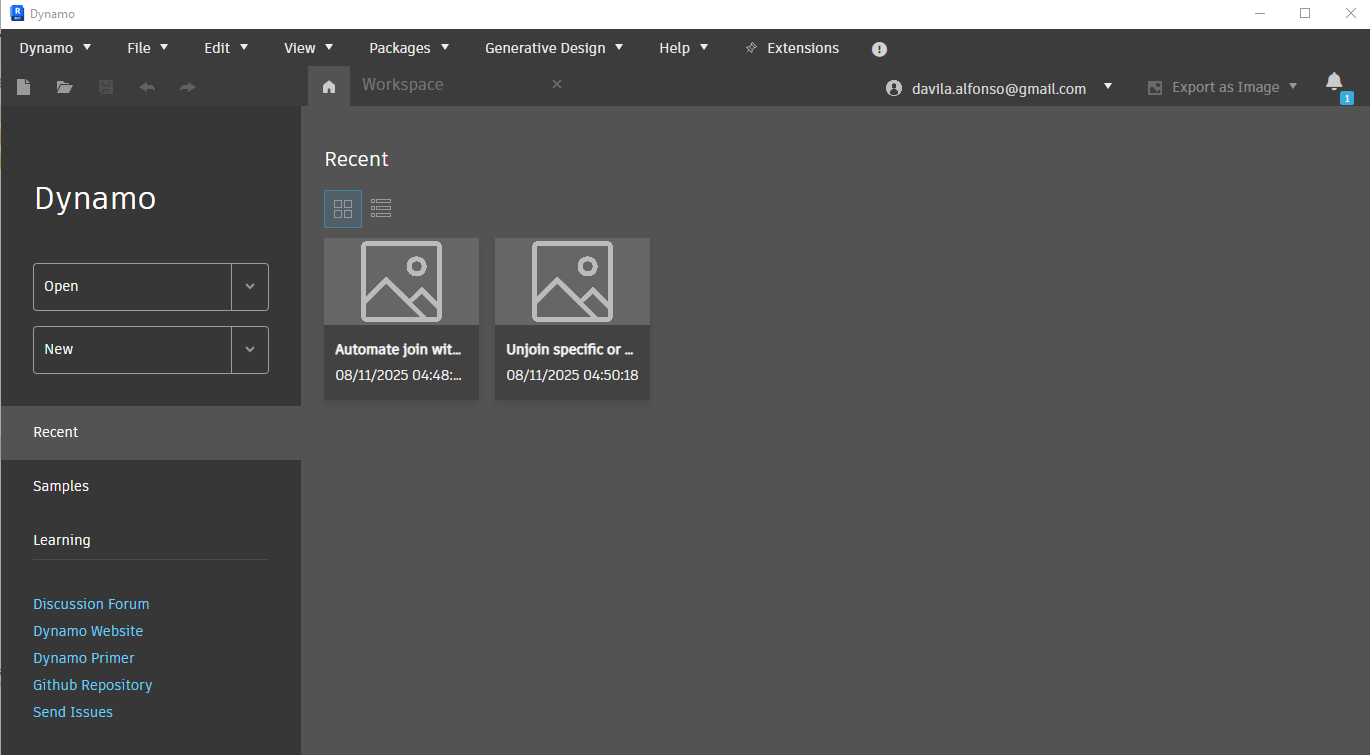

3. From Dynamo click File > Open and choose the dyn. file
4. To Run the script click on the Run button

For more information please visit our download and install instructions page.

Revit Dynamo script: Join and Unjoin Elements with Order for Revit

This pair of Dynamo scripts automates joining and unjoining Revit elements in a controlled order, supporting categories like structural columns, floors, walls, and foundations. Ideal for BIM coordinators and MEP engineers cleaning models for accurate scheduling and coordination.

Key Features:

  • Controlled Order: Joins/unjoins elements pairwise in a specified sequence (e.g., walls first).
  • Multi-Category Support: Handles OST_StructuralColumns, OST_Floors, OST_Walls, OST_GenericModels, OST_StructuralFoundations.
  • Efficient Filtering: Uses bounding box and optional geometry checks for speed.
  • Log Output: Generates detailed logs of joined/unjoined pairs and success rates.
  • BIM Cleanup: Improves model performance and schedule accuracy with transaction management.

Inputs Required:

  • Element Selection: None (automatically collects from categories).
  • Naming Conventions: None.
  • Template Application: None.
  • Geometric Parameters: None.
  • Randomization Controls: None.
  • Color and Material Settings: None.
  • Level or Height Information: None.
  • Optional: Boolean for precise geometry check (default: False).

Outputs Generated:

  • Elements joined/unjoined in the Revit model.

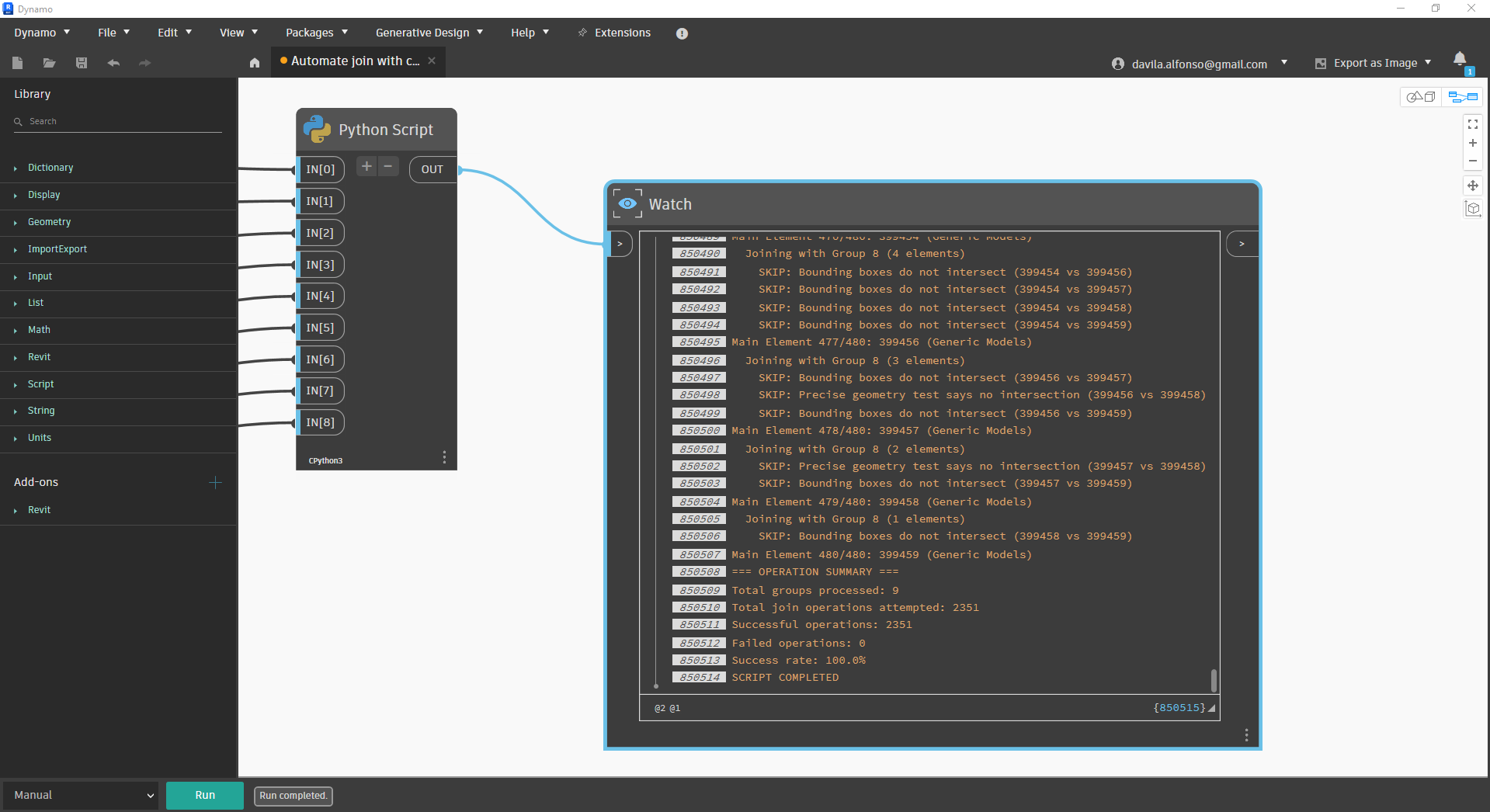

  • Log report (Dynamo console) with pairs, operations summary, and success rate.

Instructions:

  1. Open Revit 2023–2026 with elements modeled.
  2. Launch Dynamo 2.17+.

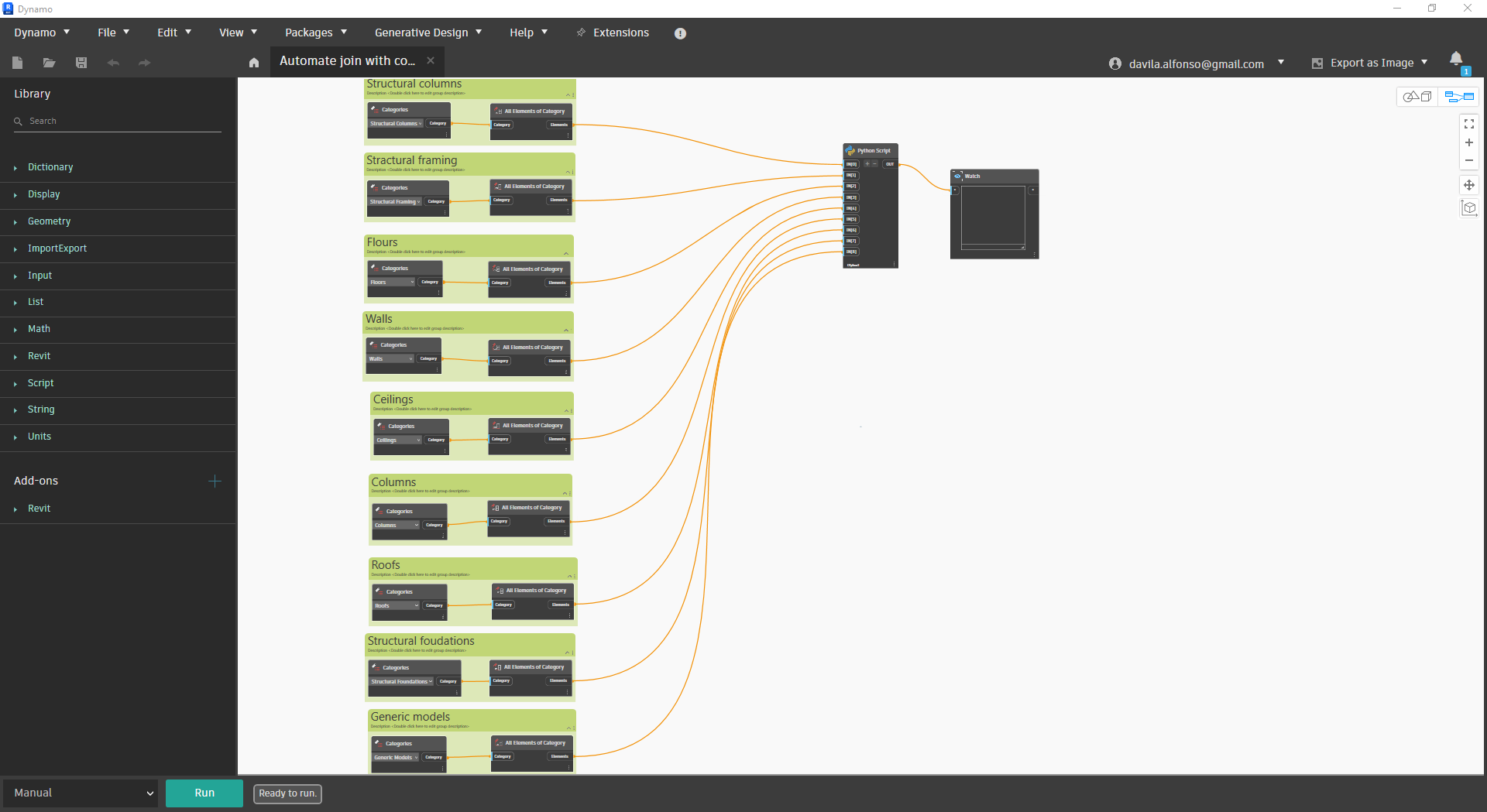

  3. For joining: Load Automate join with controlled order .dyn → Run.

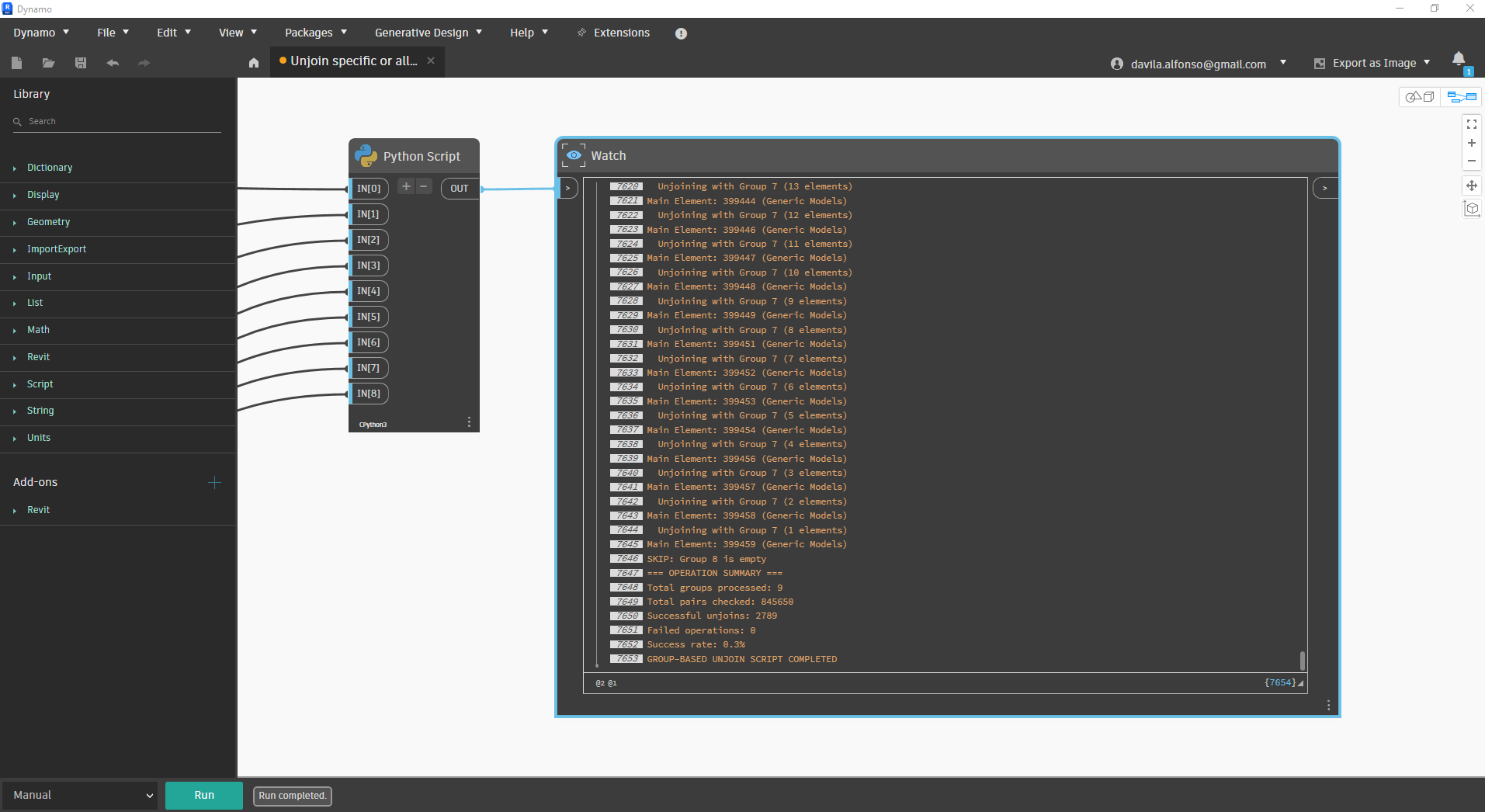

  4. For unjoining: Load Unjoin specific or all .dyn → Run.

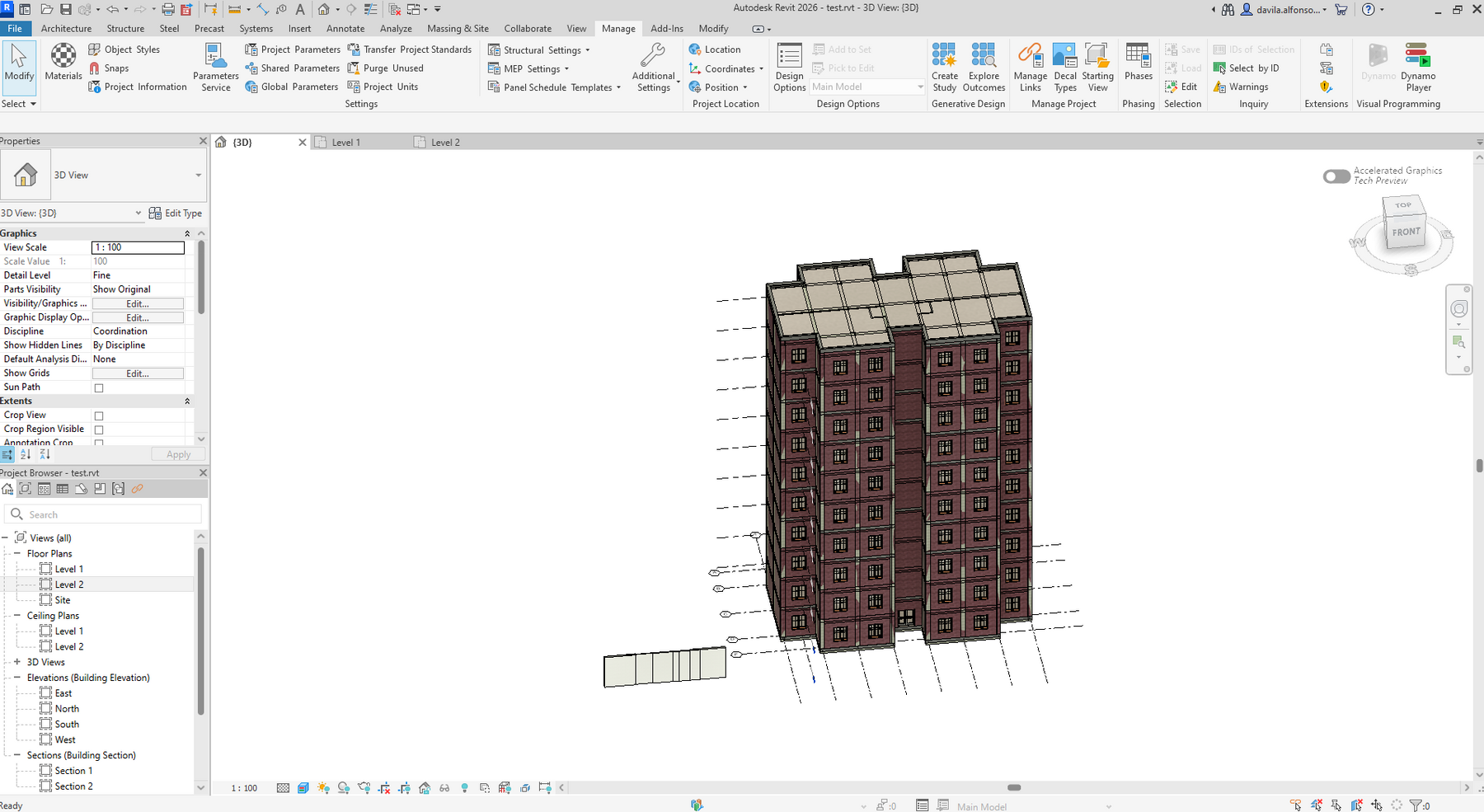

  5. Verify in Revit (e.g., 3D view) and check Dynamo console for logs.

Notes:

Compatibility: Revit 2023, 2024, 2025, 2026

Required Dynamo Packages:

This script contains the following custom nodes, so if don't have the packages please install it before using our script:

  • Dynamo 2.17+
  • IronPython 2.7 or CPython 3
  • RevitAPI (included with Revit)
  • RevitServices (included with Dynamo)
  • Clockwork 2.17.0 (optional for advanced joining)



Revit Version: 2023

Dynamo Build: 2.17

Alfonso Davila is a senior electrical engineer with over 20 years of experience in power distribution systems and MEP design. Specializing in Revit MEP and Dynamo automation, he develops NEC-compliant tools to streamline BIM workflows for MEP firms. Proficient in electrical design, load calculations, and NEC compliance, Alfonso ensures safety, efficiency, and compliance. He leads DynMEP Solutions, delivering innovative scripts for Revit users worldwide.
