Revit Track Lights System - Professional Pack (66 Families)

• Product Type: Revit Track Lighting System family pack (.rfa)
• Includes: 66 fully parametric Revit families – 5 track profiles, 18 shapes, and 37 lighting fixtures types
• Compatible with: Revit 2020 and newer – includes Metric and Imperial files

The Revit Track Lights System – Starter Pack brings precision and flexibility to ceiling lighting design. Developed especially for lighting designers and BIM professionals who often struggle to find non-branded, parametric, and high-detail Revit families, this pack delivers clean geometry, adaptive layouts, and efficient performance — all in one streamlined system.

Ideal for residential, commercial, and hospitality interiors, this Starter Pack lets you create accurate, visually refined lighting compositions directly inside Revit. Every family is optimized for fast modeling, consistent documentation, and full compatibility with office BIM standards.

18 Track Shapes

Includes 18 layout options:

1. Linear

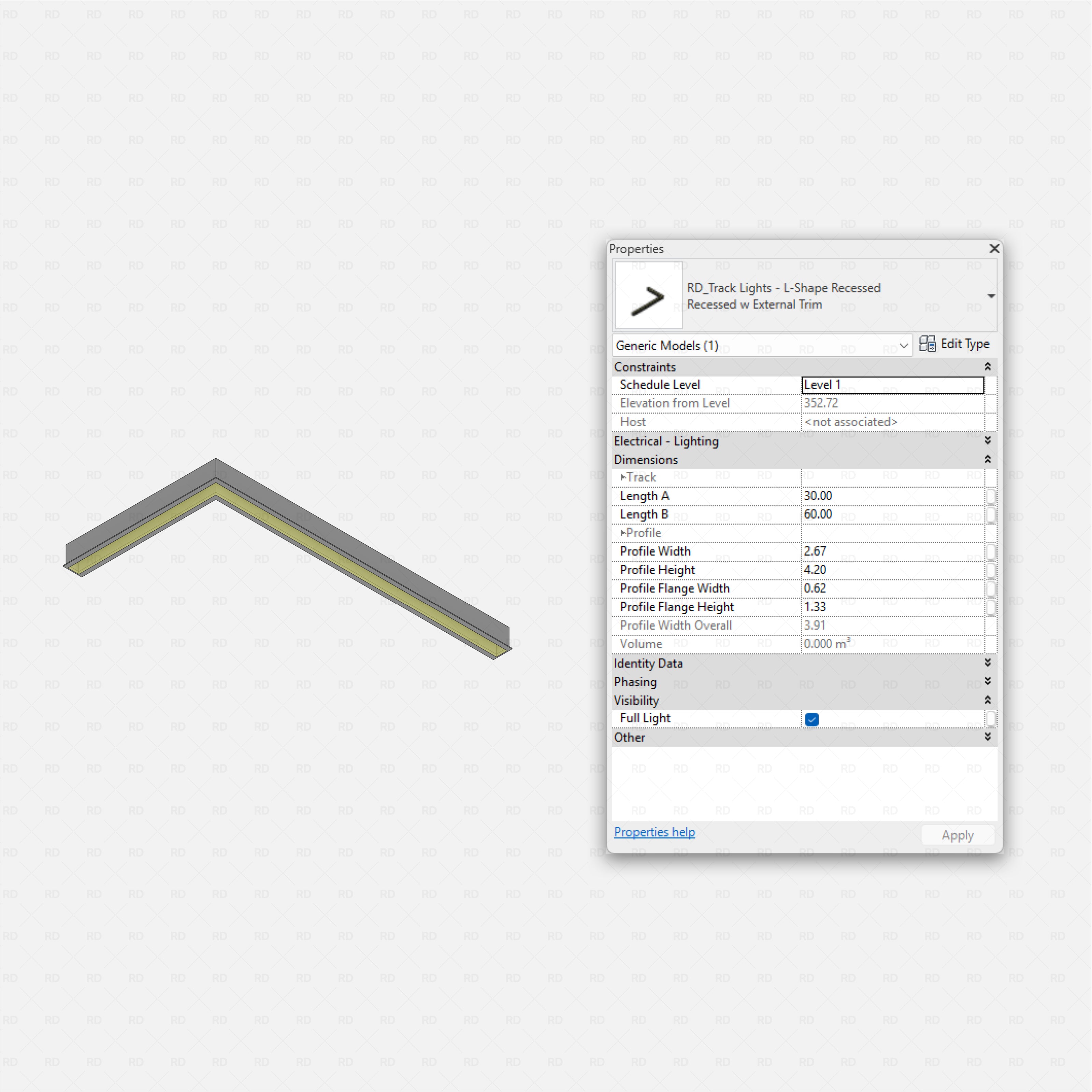

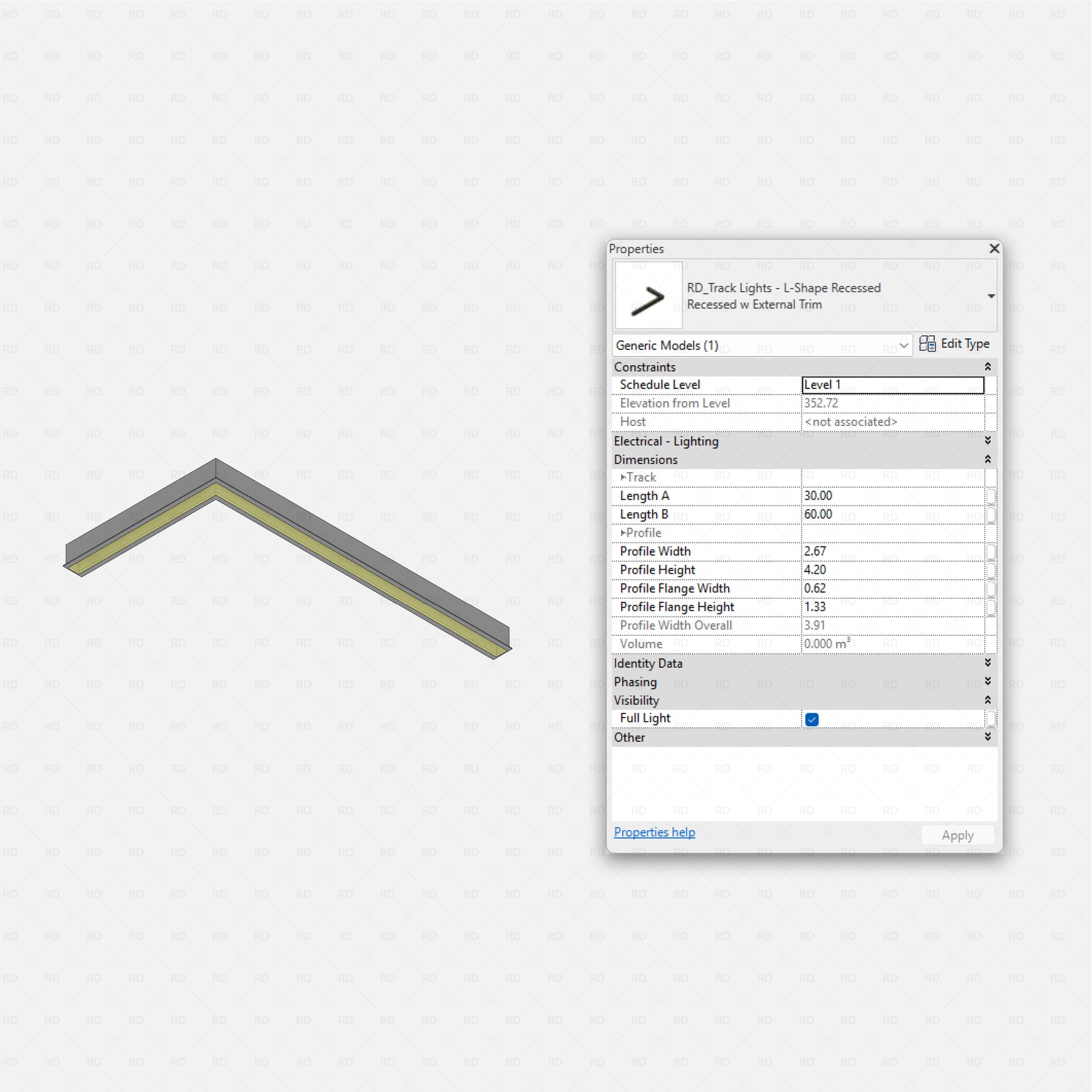

2. L-shape
3. U-shape
4. Rectangular
5. T-shape
6. Z-shape
7. Circular
8. Oval
9. Circular
10. Semi Circular
11. Arc
12. Hexagon
13. Rounded Rectangular
14. X-Shape
15. S-shape 01

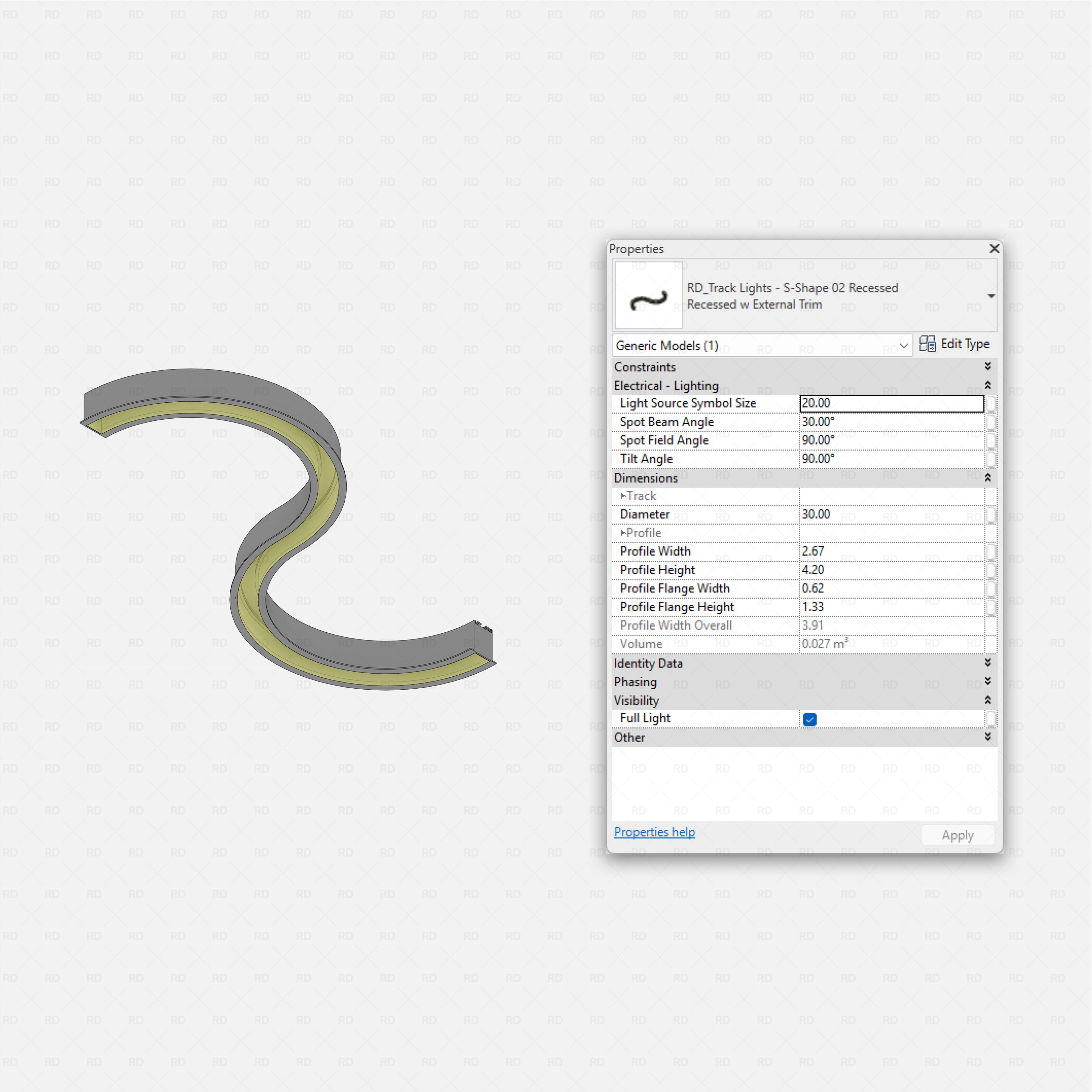

16. S-shape 02
17. Custom L-shape
18. Custom Z-shape

Built to snap perfectly into your ceiling design. Each track type is fully parametric, allowing you to extend, mirror, or connect configurations with ease, whether you’re planning a continuous corridor layout or a detailed retail ceiling grid.

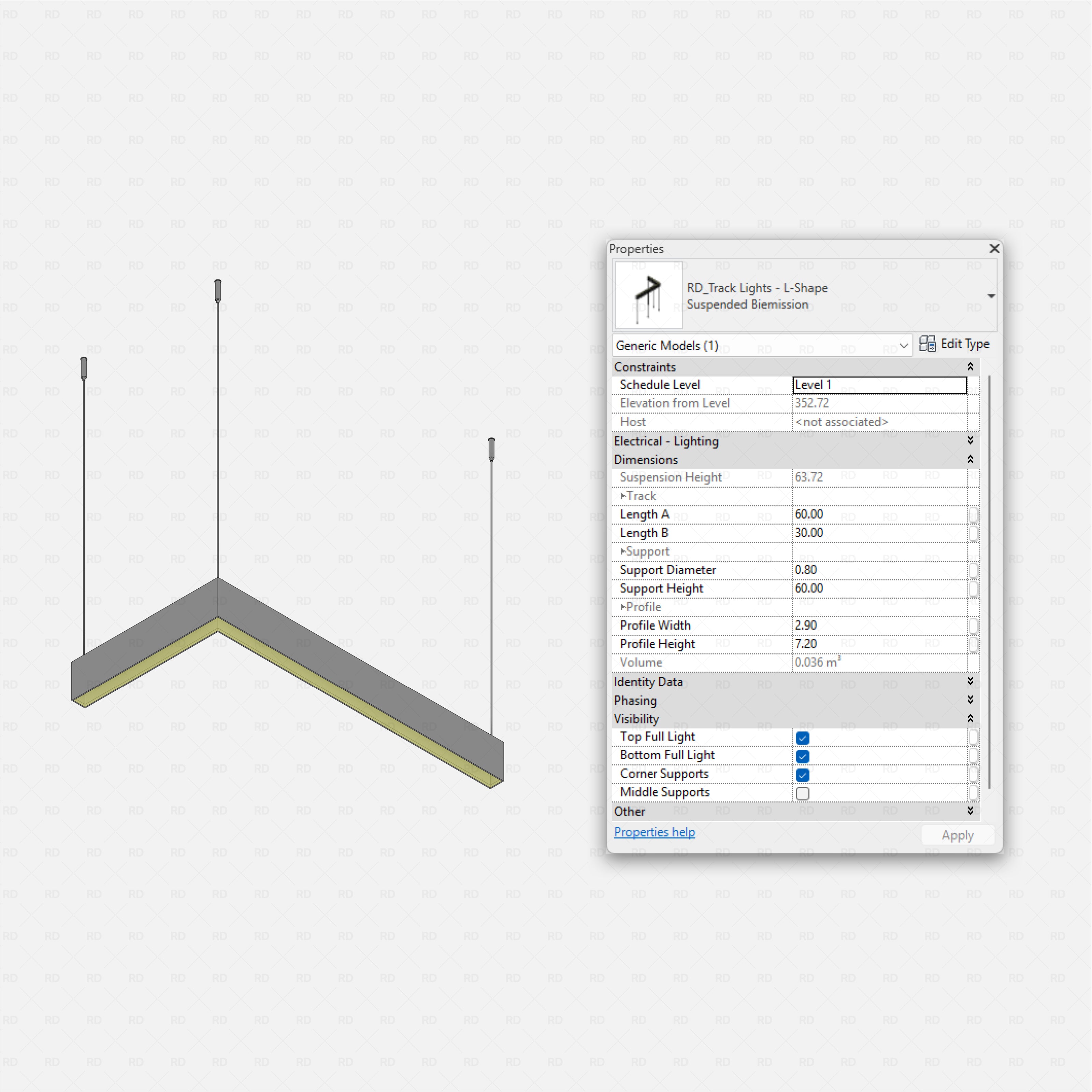

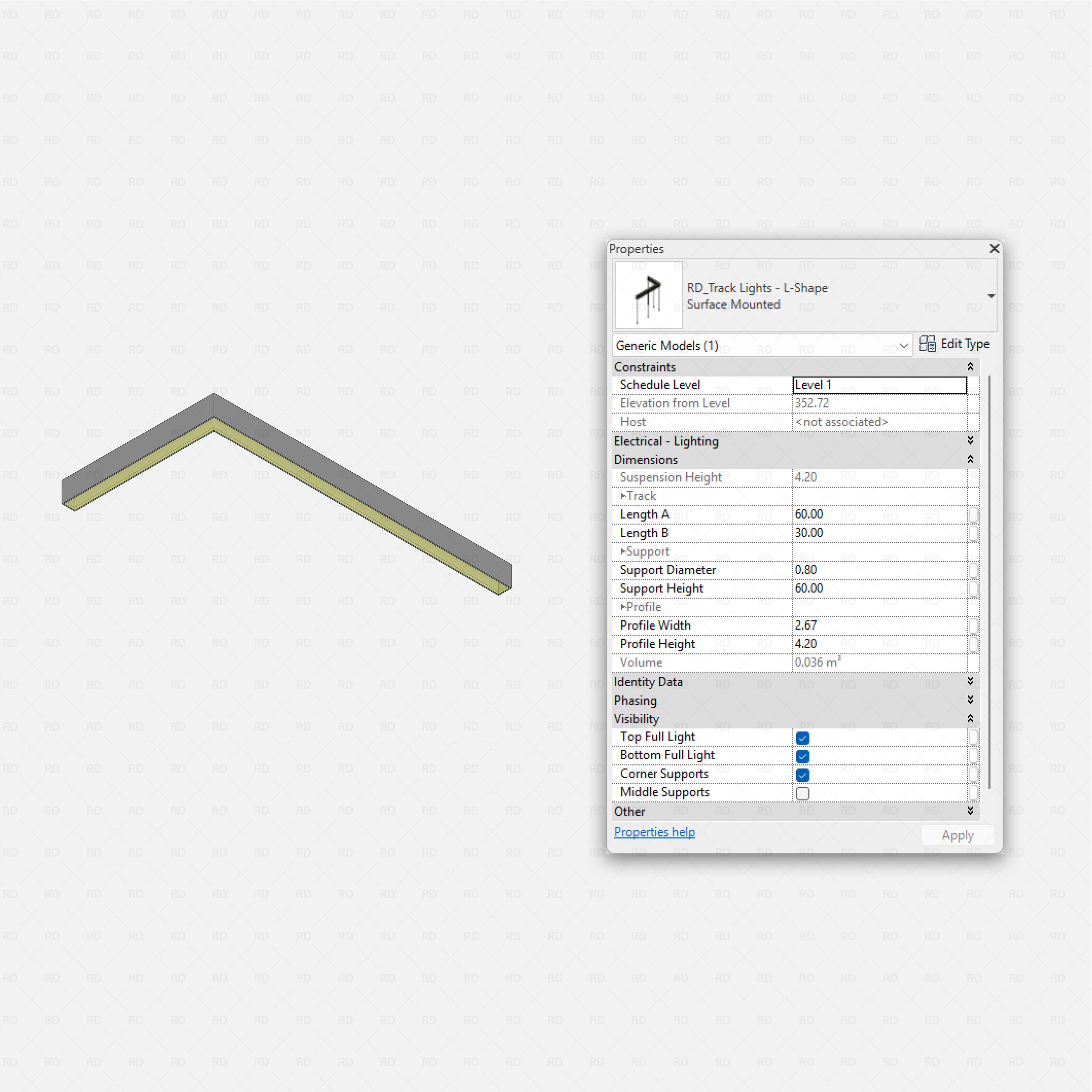

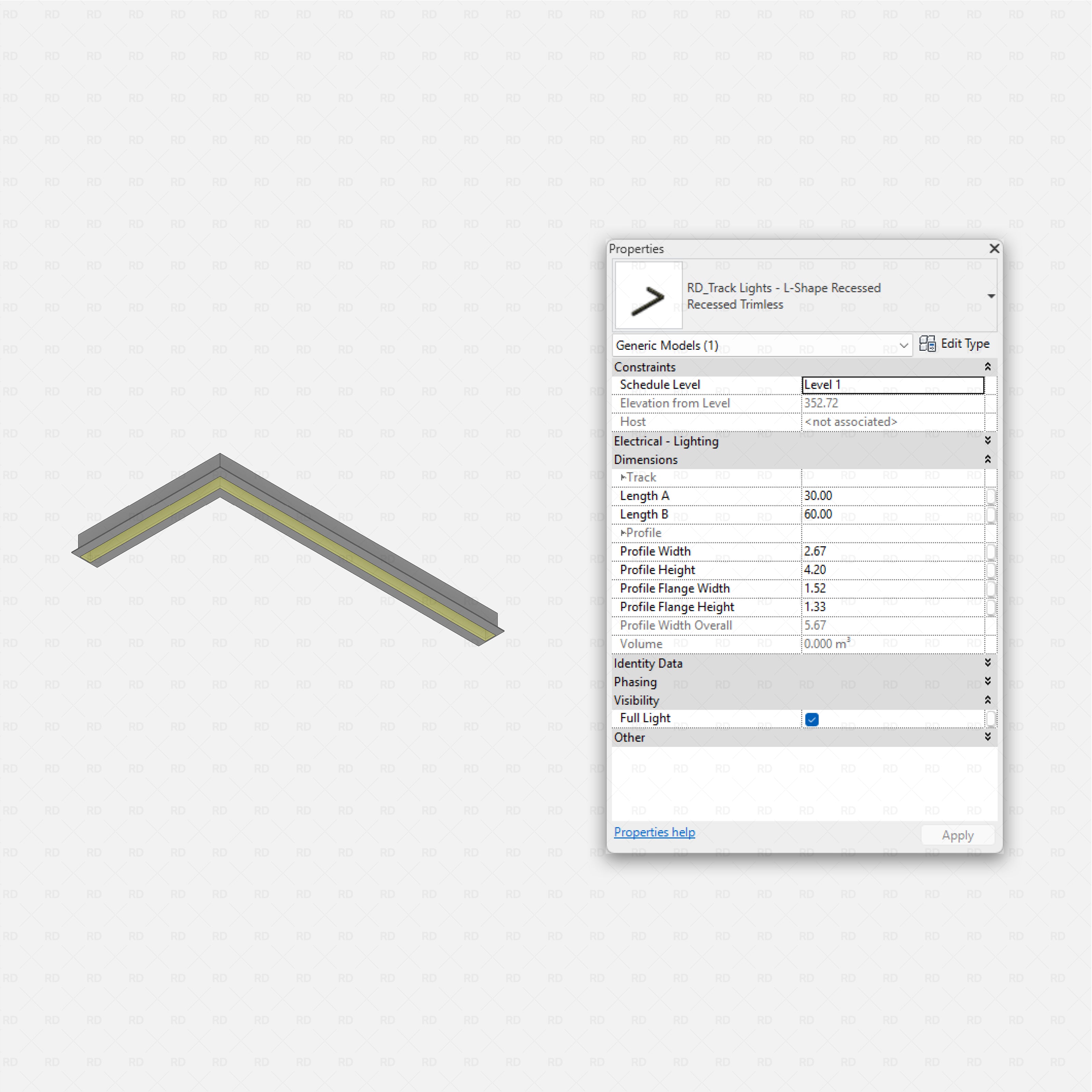

5 Track Profiles

1. Recessed Trimless
2. Recessed with External Trim
3. Surface Mounted

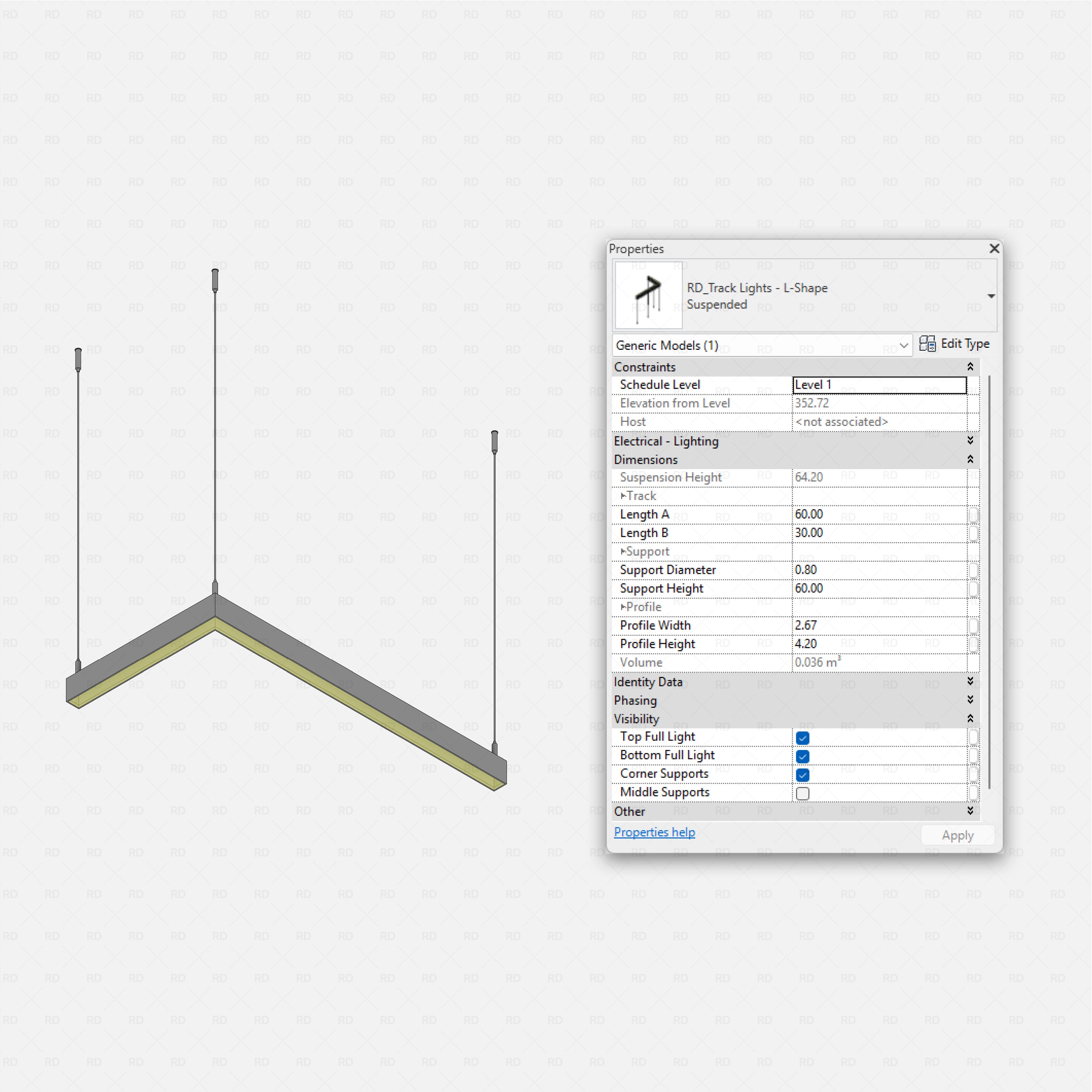

4. Suspended
5. Suspended Biemission

All options feature precise geometric detailing and adjustable parameters for width, height, and flange size, allowing you to match architectural finishes from minimal to expressive.

Detail Level: Fine vs Coarse

Each family automatically adapts to Revit’s Detail Level settings. At Coarse, you’ll see simplified outlines for lightweight modeling and quick coordination. Switch to Fine for realistic extrusion details and clean documentation in sections and renderings. This dual-level design ensures both performance and precision in every project stage.

37 Lighting Fixture Types

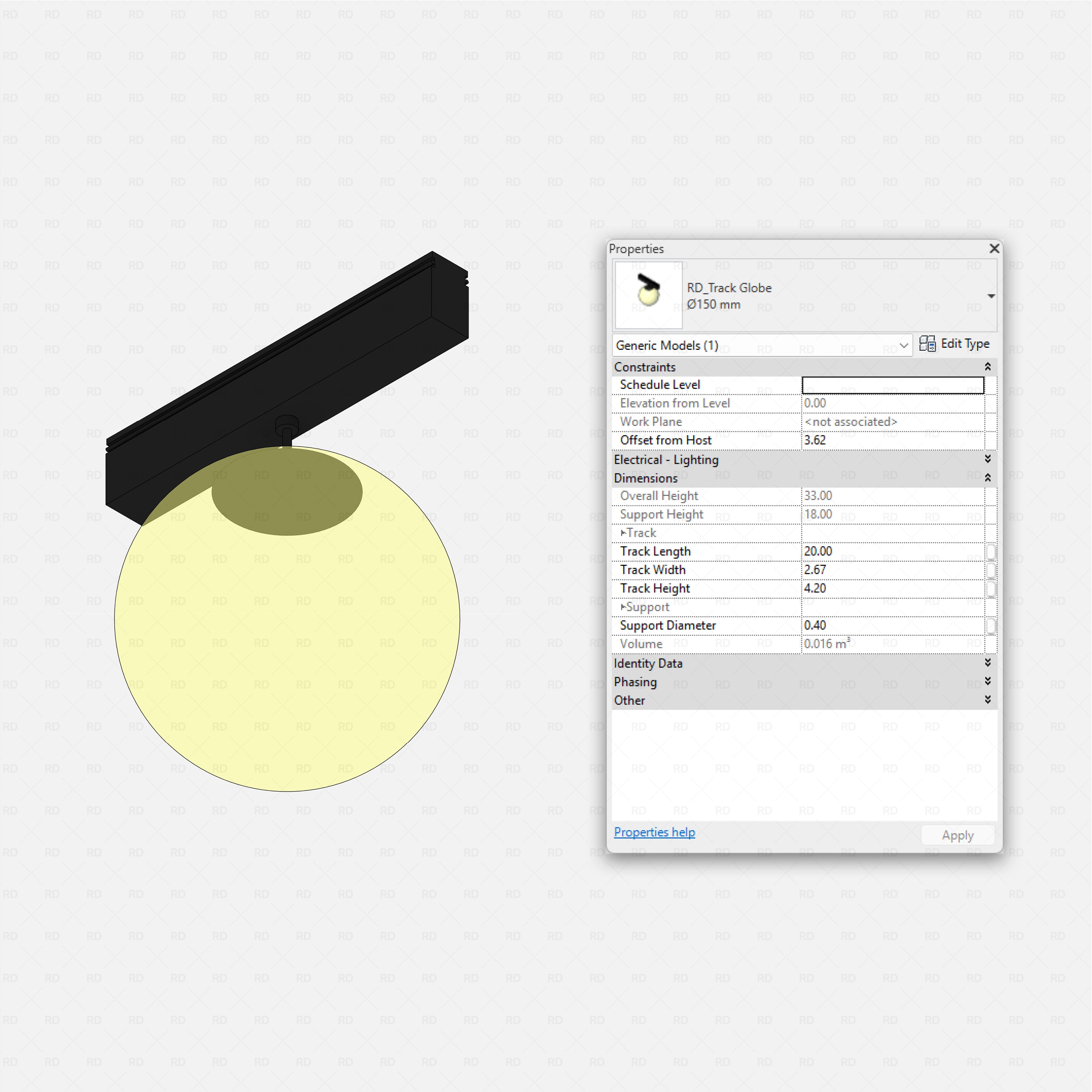

A concise set of modern fixtures - cylinders, pendants, globes, and spots - designed to complement the track system.

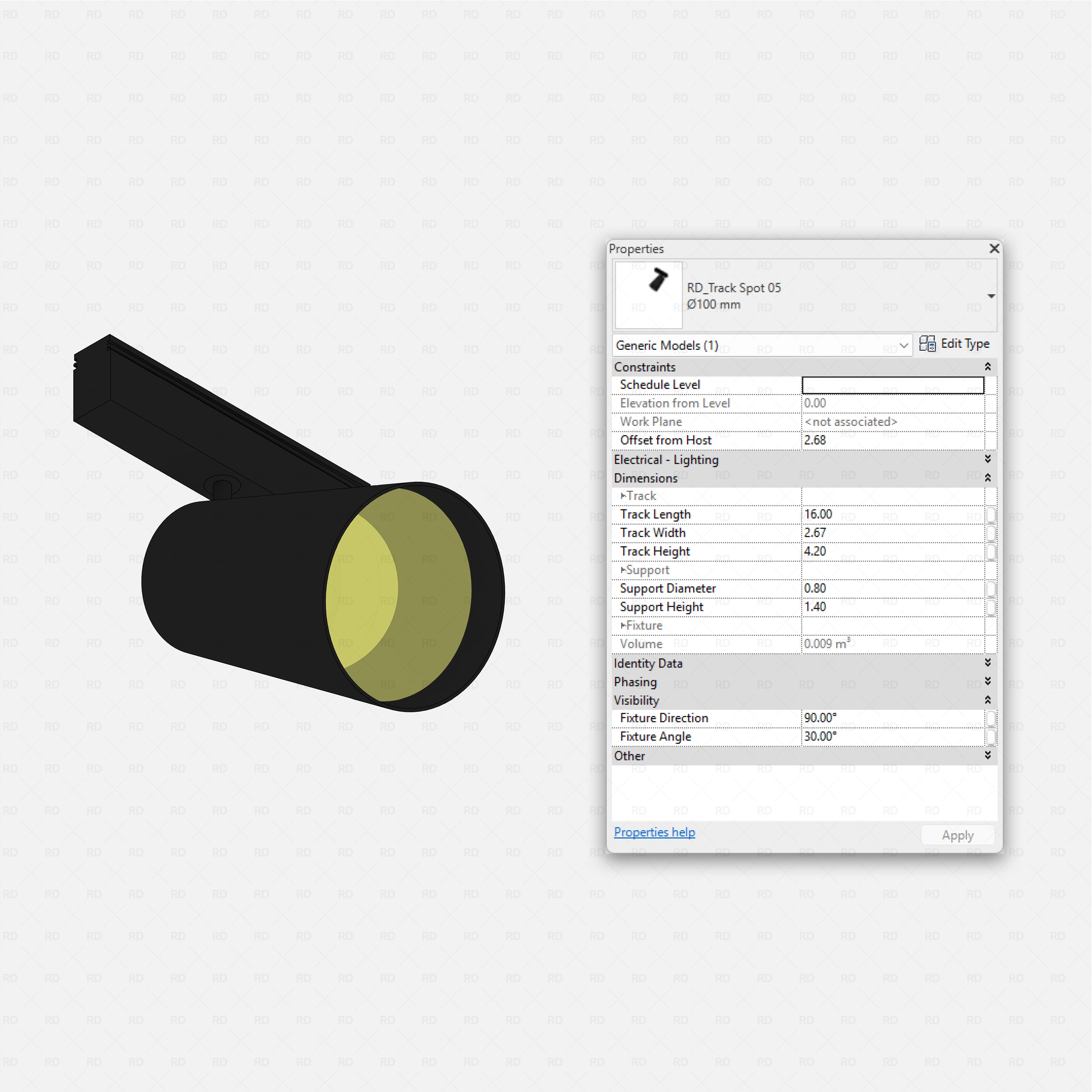

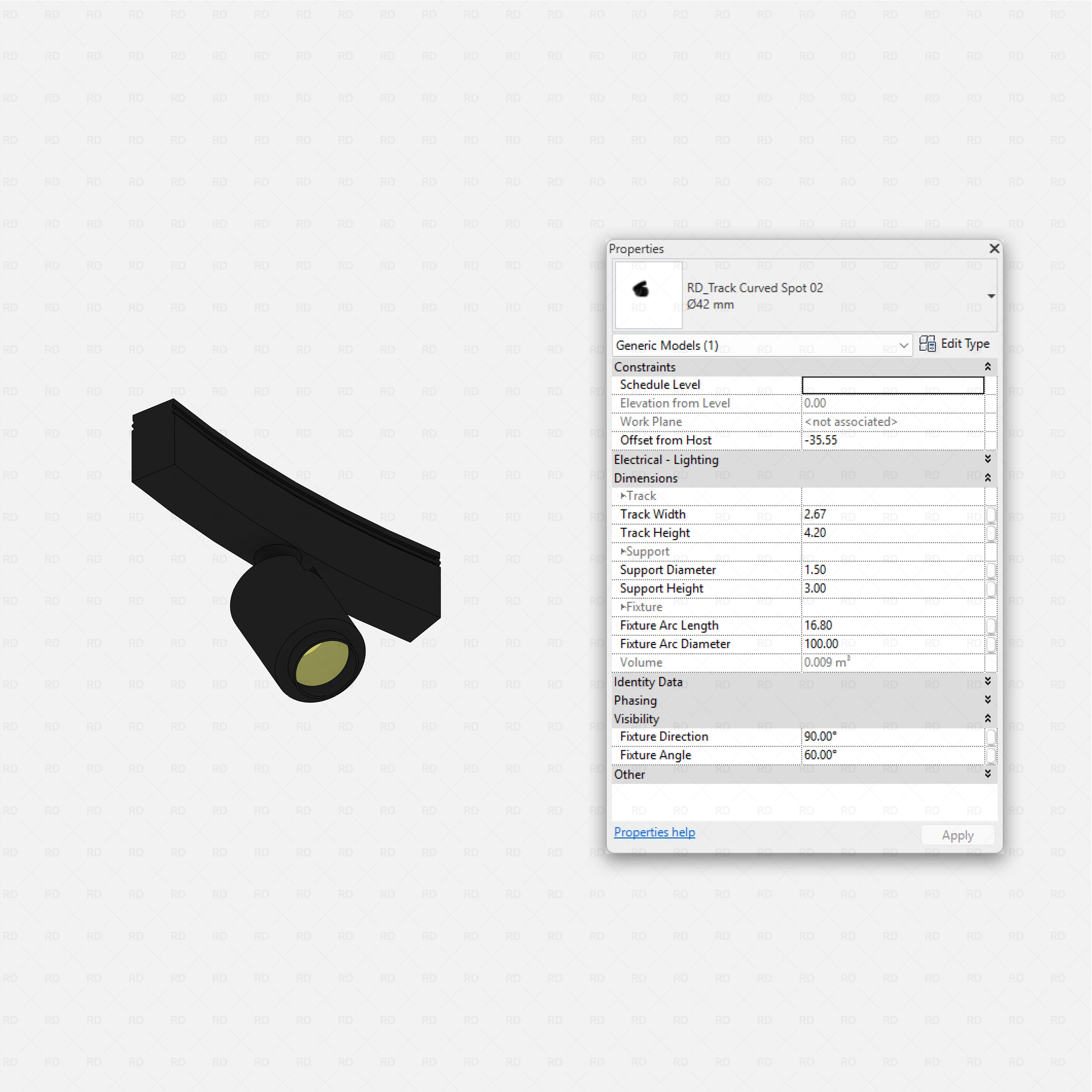

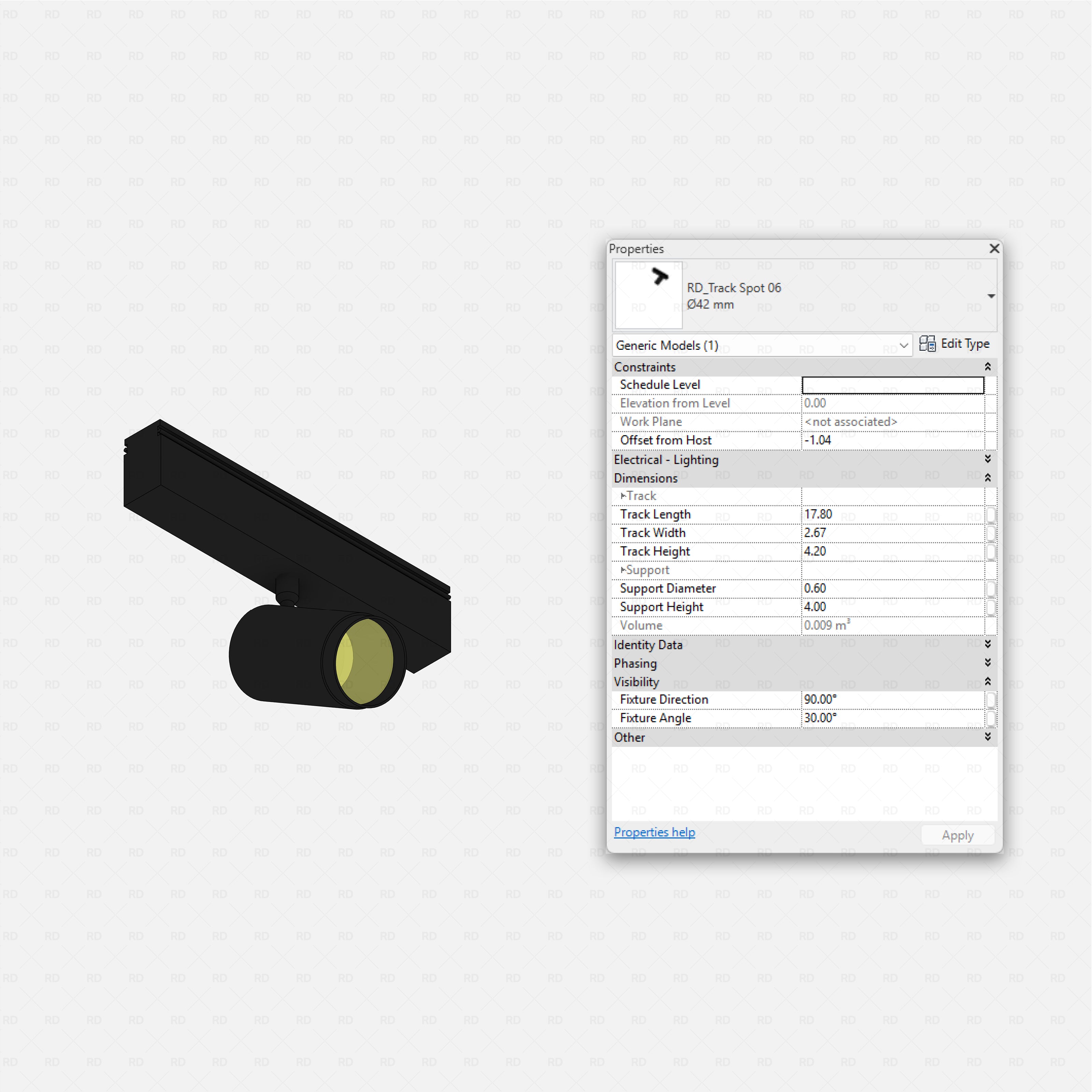

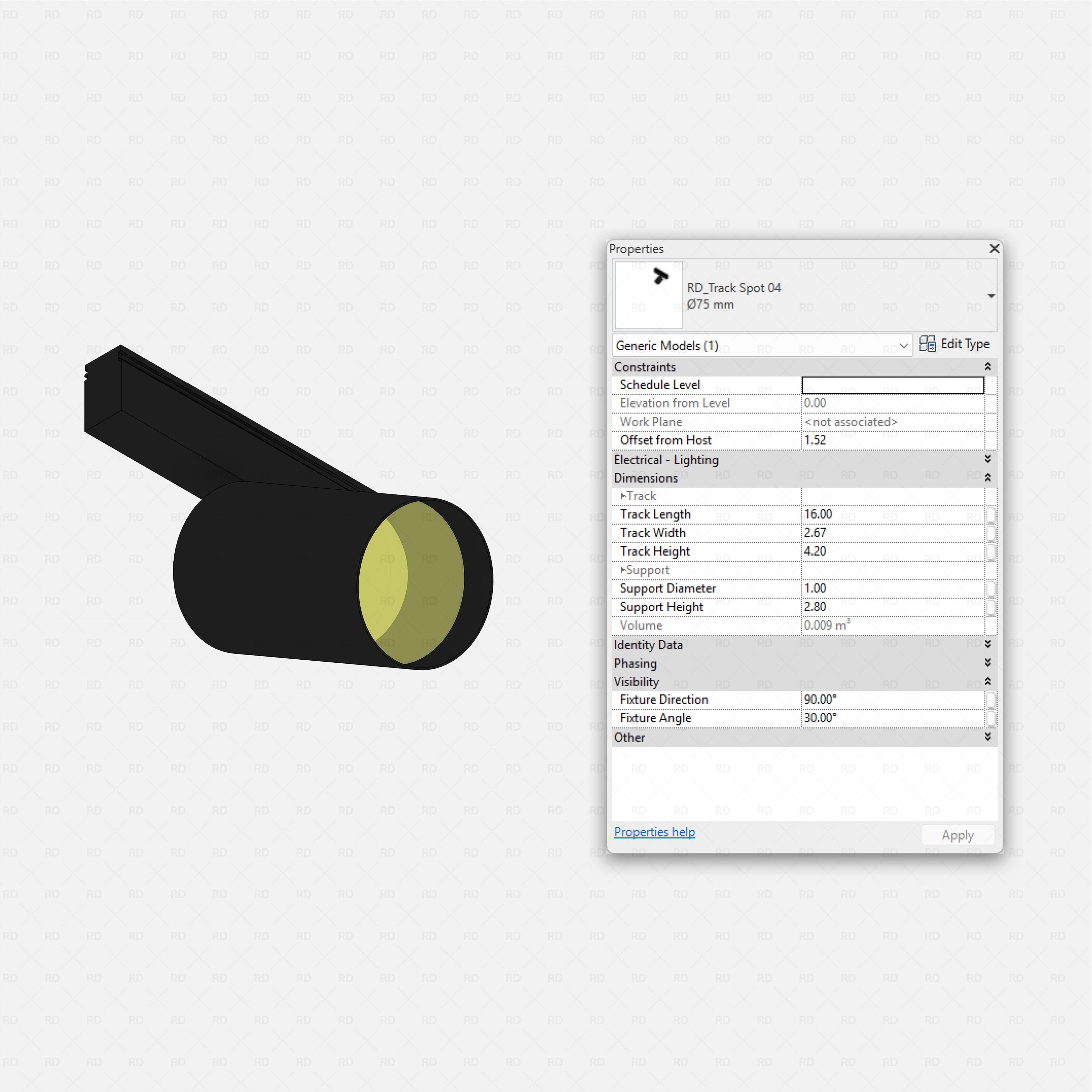

Spots

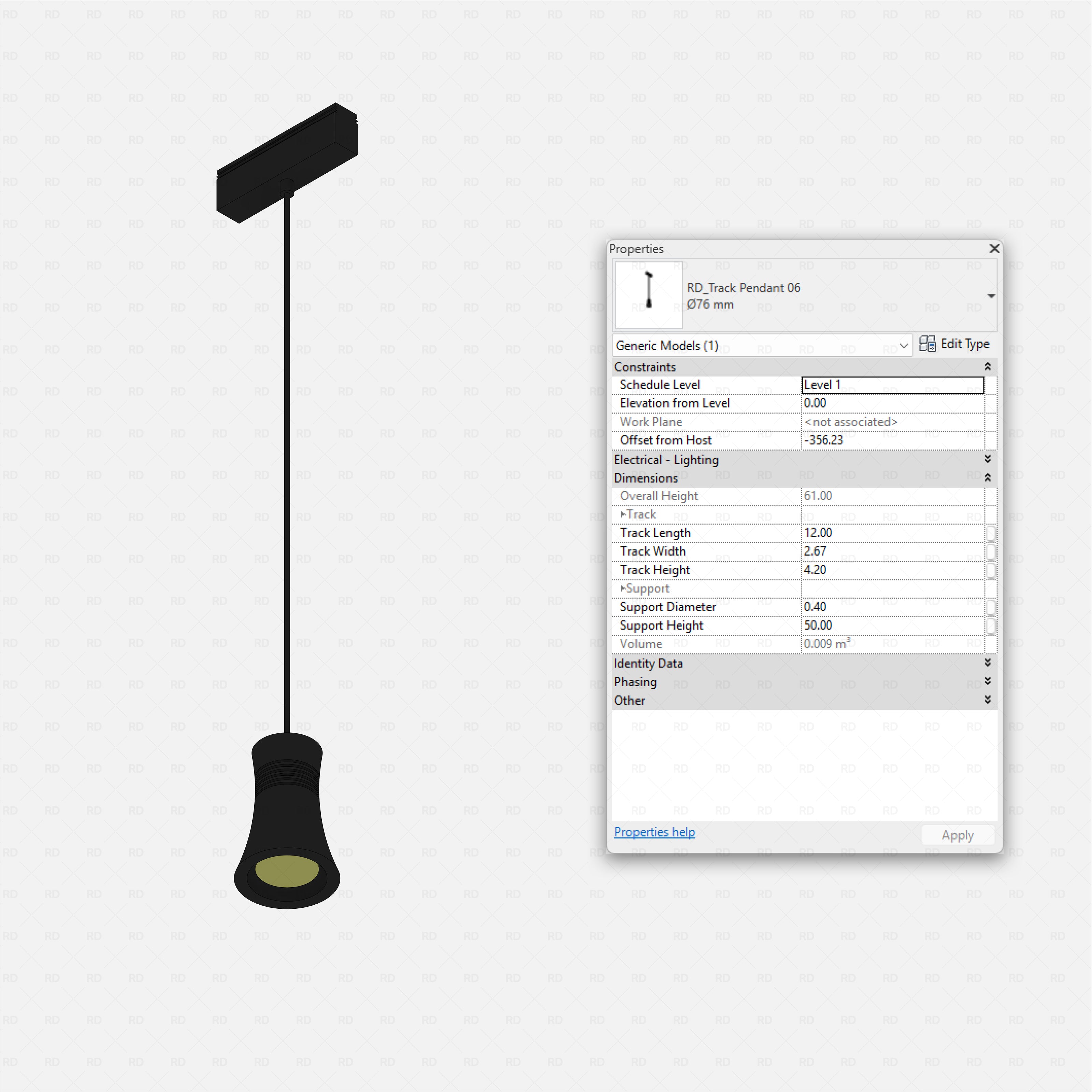

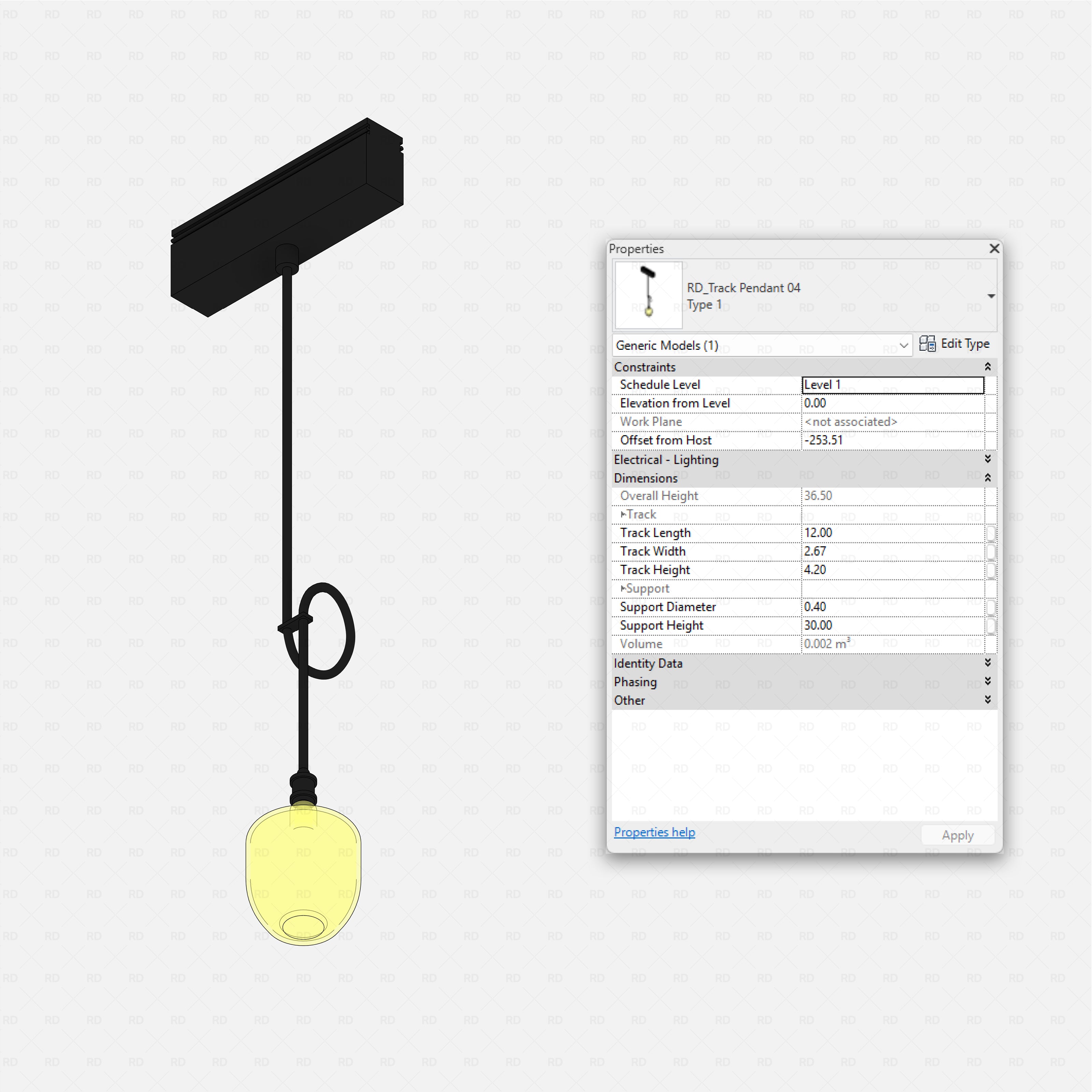

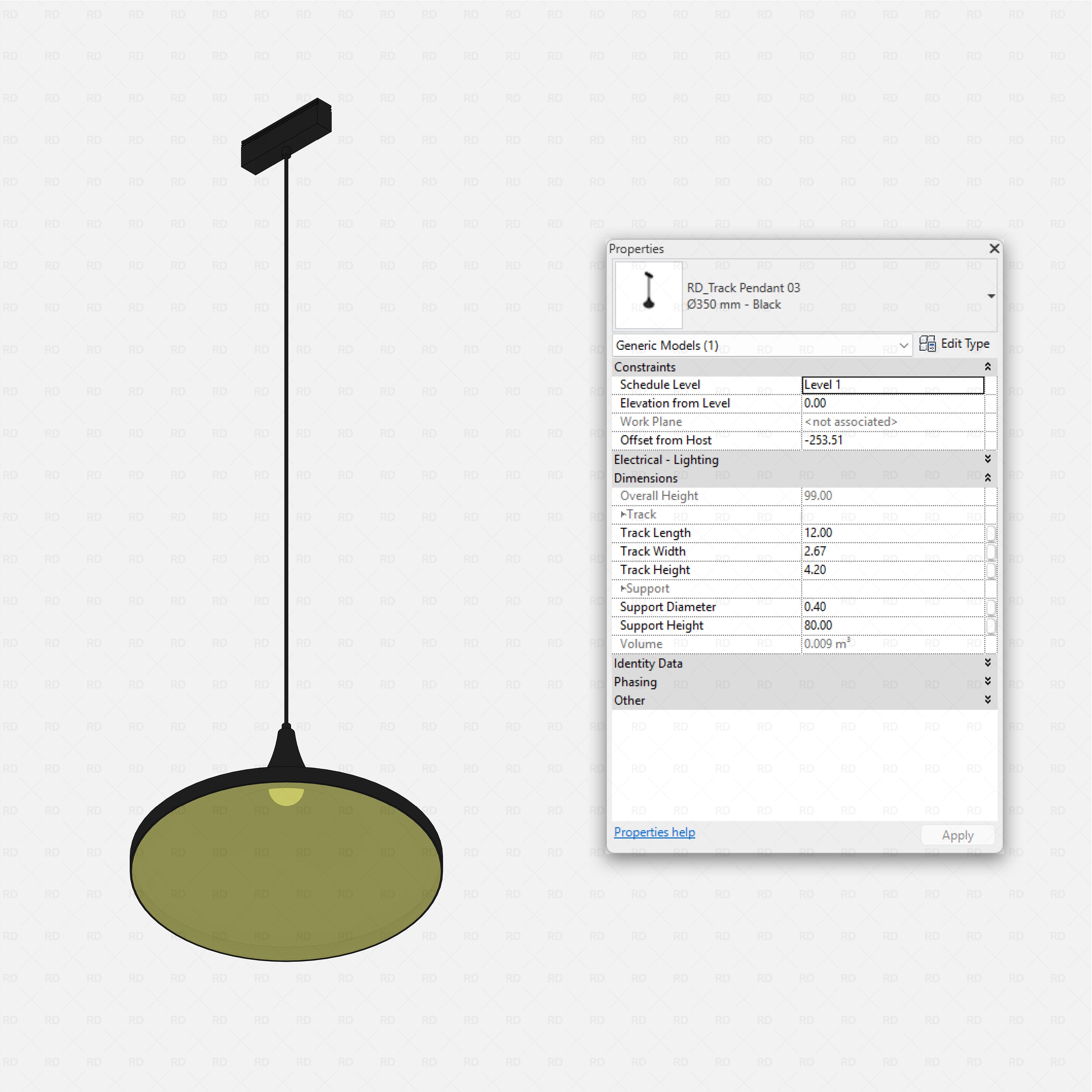

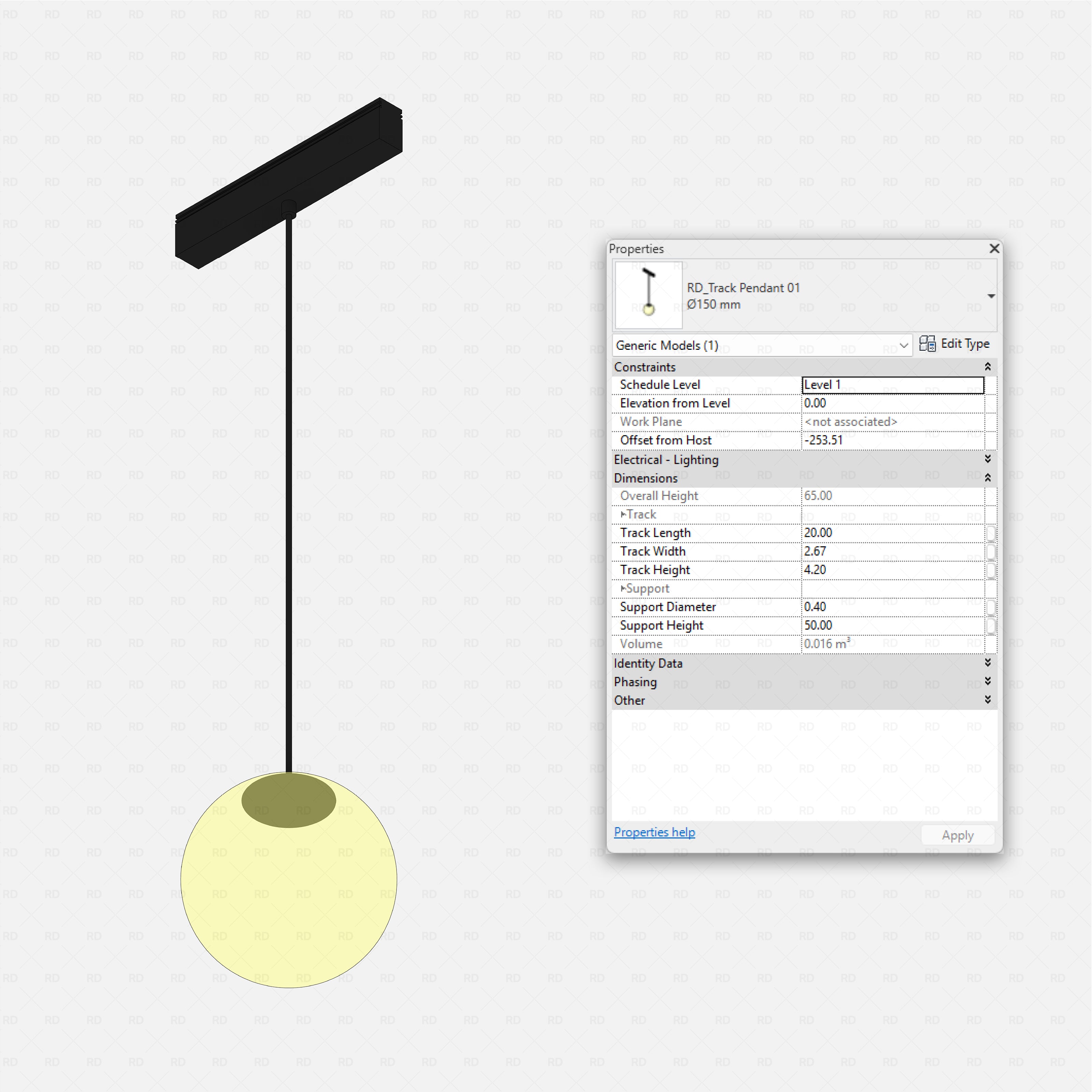

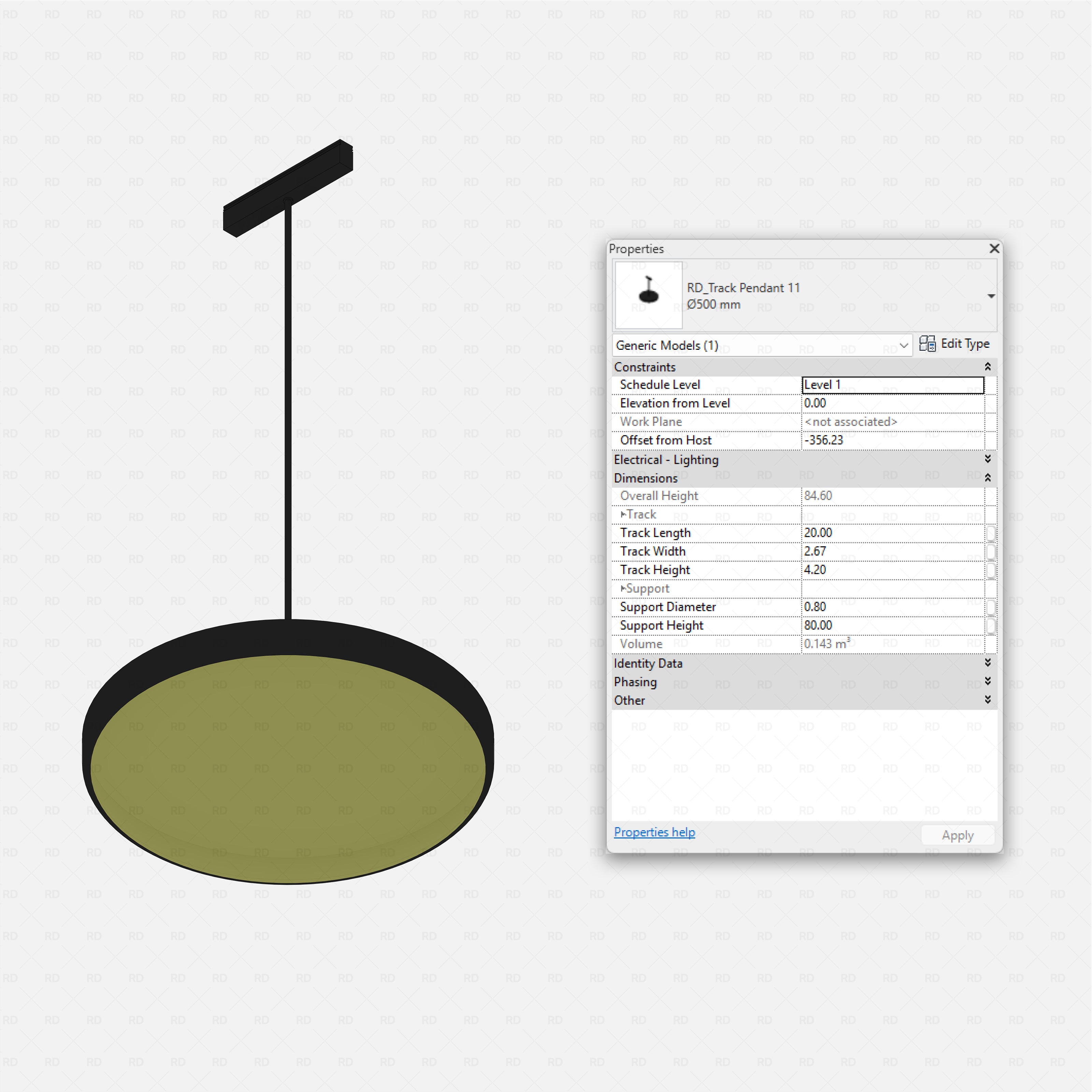

Pendants

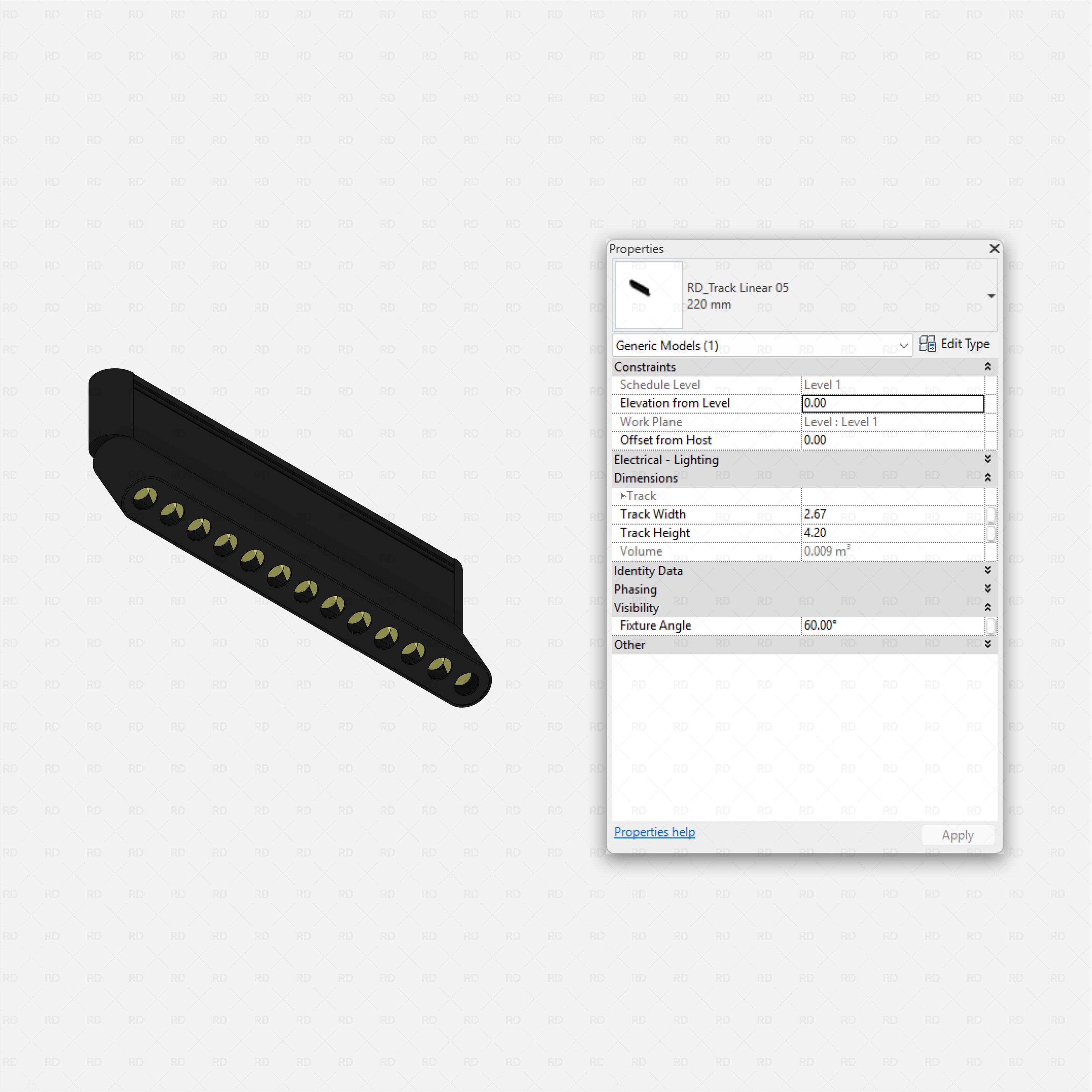

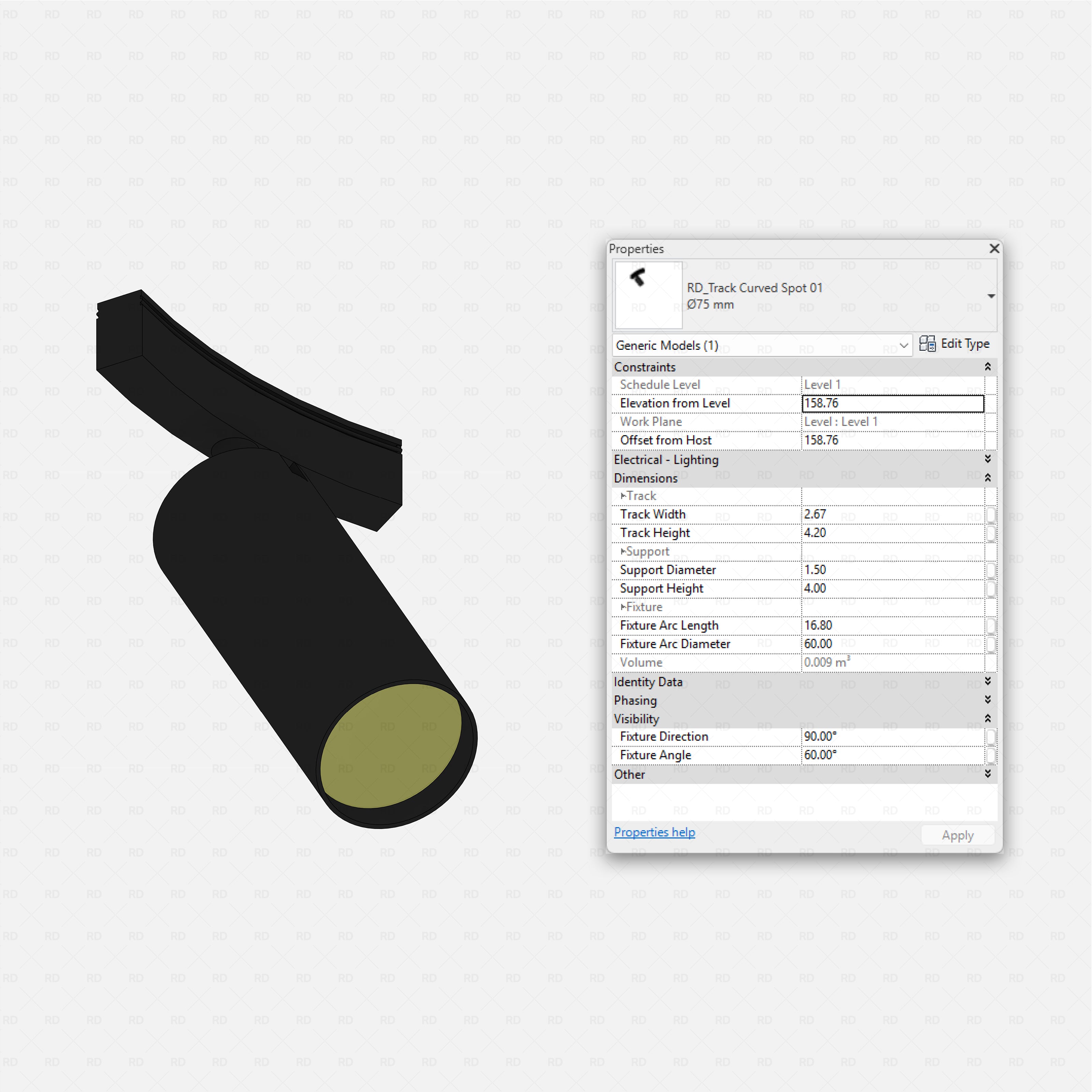

Linear Track Lights

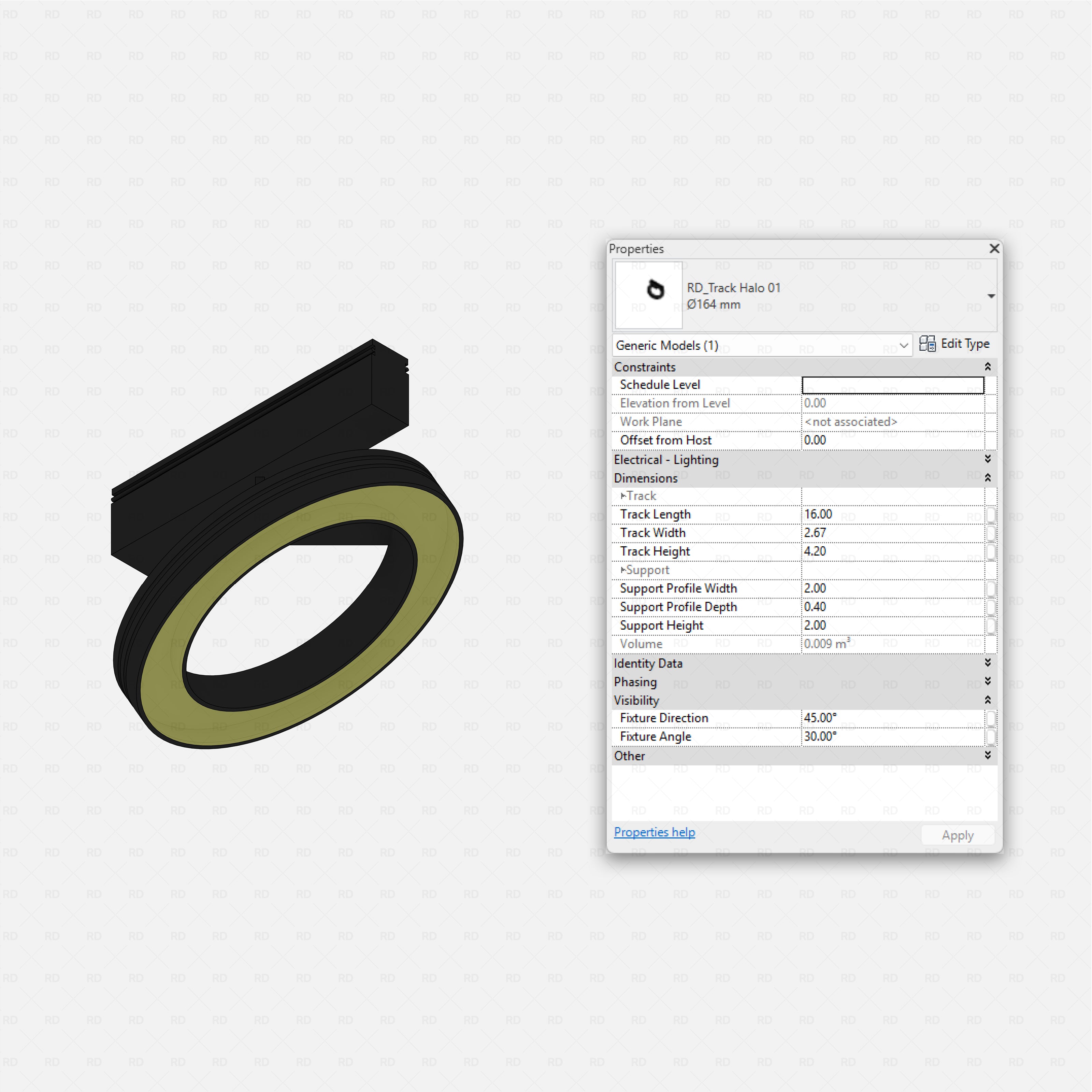

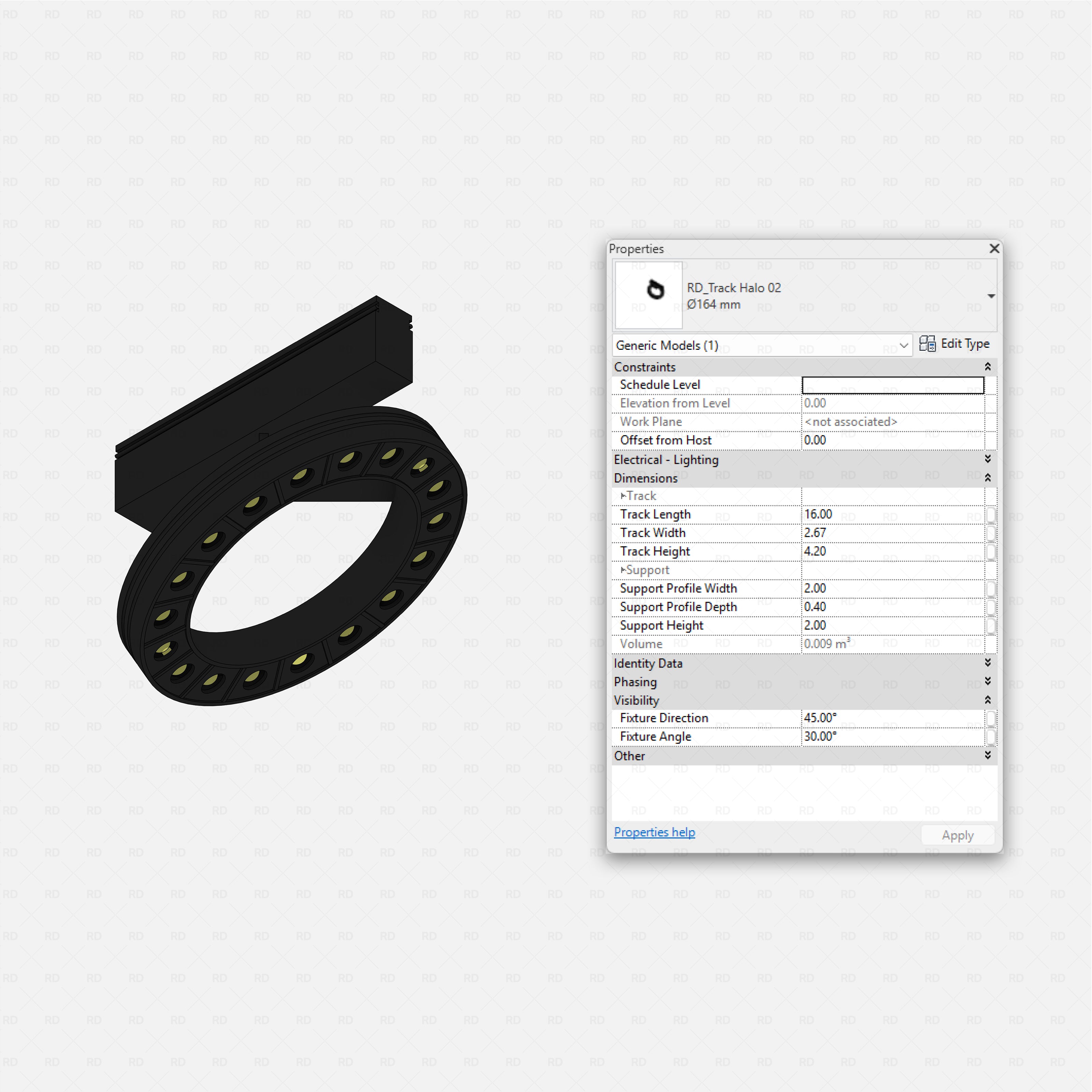

Linear Lights, Halo and More

Full Light Feature

Each track family includes a Full Light On/Off parameter that instantly toggles between illuminated and unlit appearances — ideal for quick presentation renders and schematic lighting layouts.

Why are the families modeled as Generic Models?

Tracks and lighting fixtures are built as Generic Models so they can be cuttable in section views. Revit’s default Lighting Fixture category isn’t cuttable, limiting visual detail in drawings. This approach ensures your sections remain accurate and visually complete.

Self-Illumination Materials and Light Source Included

All light components use a custom Self Illumination material setup to enhance realism without using actual light sources. The material RD_Glass White High Luminance (RGB 232,232,232) includes high-luminance properties and glow simulation (Desk Lamp Lens, 6500K temperature) – ensuring bright, visually balanced renderings while keeping file size and performance optimal.

What’s Included in the Download?

• ✅ 27 Revit Track Lighting families (.rfa)
• ✅ Preview project file (.rvt) for quick browsing
• ✅ Metric and Imperial versions included

Key Features

• ✅ Fully parametric - adjust track length, profile dimensions, and flange sizes
• ✅ Face-based and non-hosted placement options for flexible workflows
• ✅ Coarse/Fine geometry strategy for performance and detail
• ✅ Non-branded content suitable for professional lighting designers
• ✅ Clean file organization and consistent naming

Ideal Use Cases

• 🏢 Office and retail interiors requiring accurate ceiling lighting layouts
• 🏡 Residential projects with minimalist track lighting designs
• 🏨 Hotels, restaurants, and commercial hospitality spaces
• 💡 Lighting design firms seeking non-branded, fully parametric Revit content
• 📐 BIM documentation, interior layouts, and schematic design stages

Technical Specifications

• Face-Based Families for easy placement on any surface
• Adjustable parameters for Track Length, Profile Width/Height, Flange Width/Height, and Full Light On/Off
• Lighting Fixtures with adjustable Support Diameter and Height
• Optimized for Revit 2020 and newer versions
• Compact file sizes for smooth model performance

Are the Track Lights fully parametric?

Yes – every track and fixture includes parameters for dimension, profile, material, and lighting control, giving you total flexibility in layout and design.

What Revit versions are supported?

This pack supports Revit 2020 and newer, provided in both Metric and Imperial formats for full global compatibility.

Are these families suitable for large projects?

Absolutely. Each family is built with lightweight geometry, optimized symbolic views, and streamlined materials for smooth navigation in complex models.

Downloads

• 66 Revit Families (.rfa)
• Preview project (.rvt)
• Metric and Imperial units
• Revit 2020 and newer compatibility
