The New Standard for Residential Documentation

Stop searching for families. Start designing.

The Revit Residential Library - Ultimate Pack is not just a furniture collection; it is a complete infrastructure upgrade for your firm. Built strictly for professional architects and BIM managers, this pack replaces the chaos of mixed-source internet downloads with a single, high-performance ecosystem.

Version: Revit 2020+ | Scope: 600+ Objects | License: Commercial Use

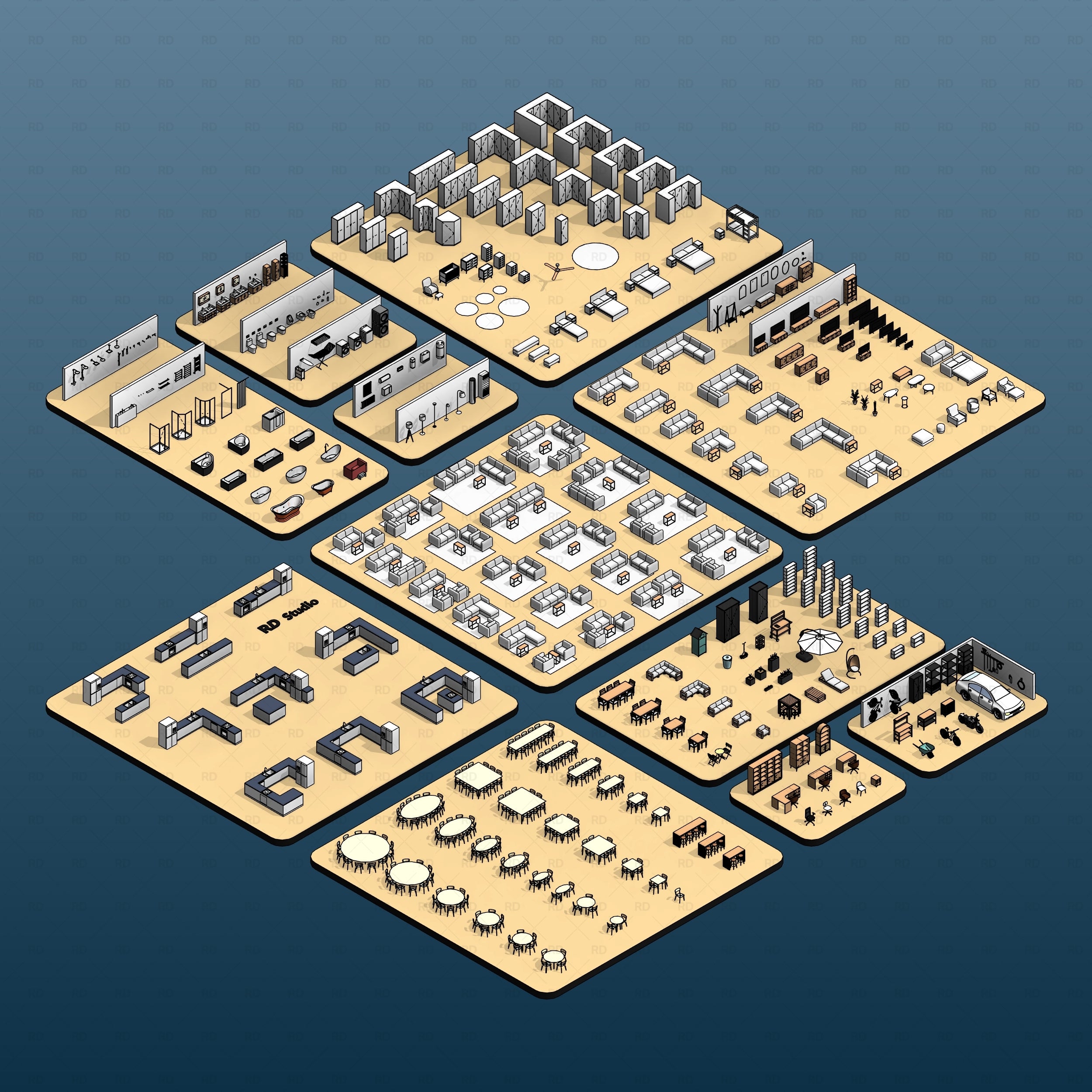

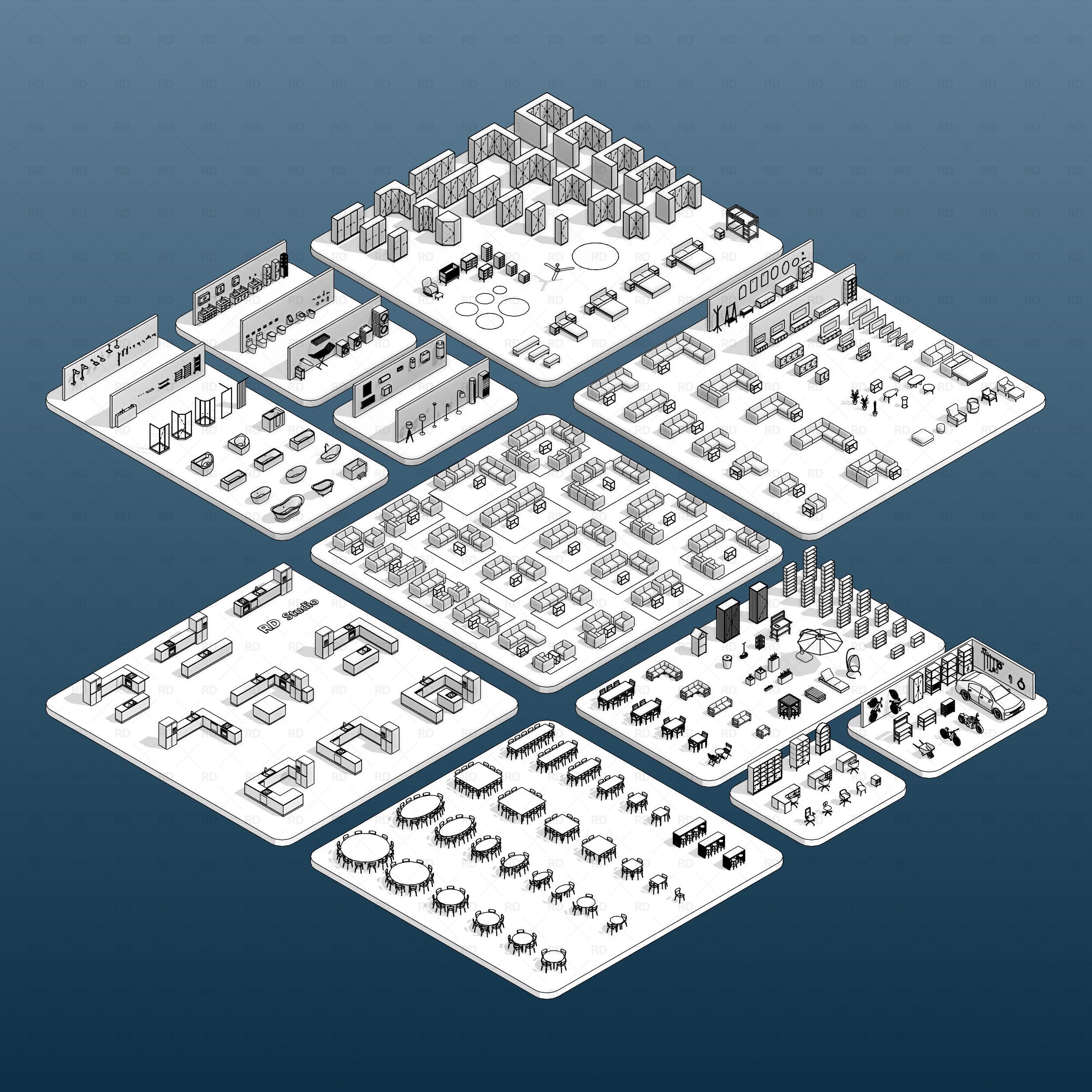

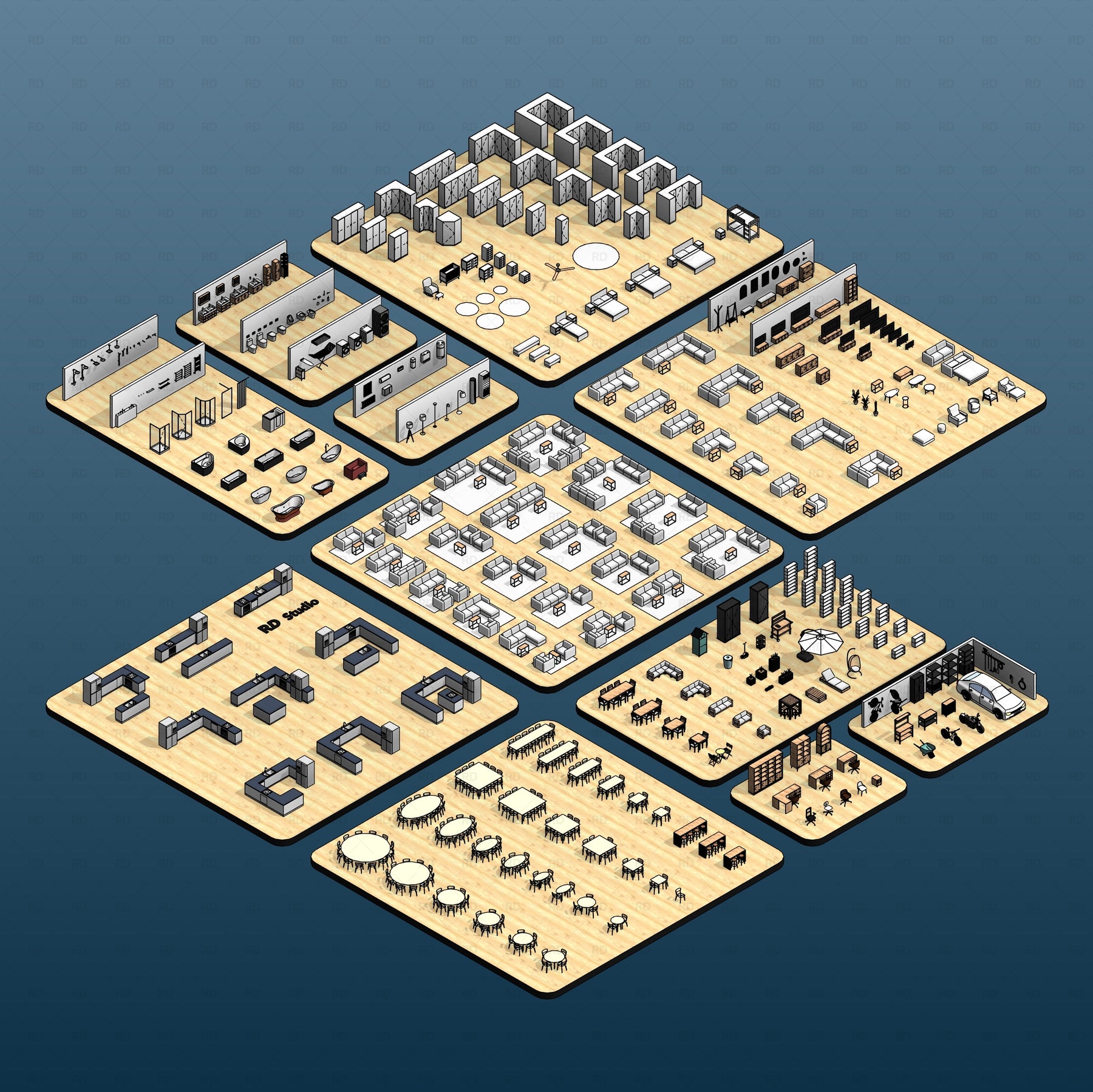

Above: The complete collection (600+ types) included in the pack.

Why This Pack Worth the Investment?

Most Revit content falls into two traps: it's either "over-modeled" manufacturer content that crashes your projects, or "dumb geometry" that looks unprofessional in plans. We built the middle ground.

• Zero Bloat (LOD 300): Clean, optimized geometry designed for repetition. Populate a 500-unit apartment block without lagging your model.
• Work-Plane Based: Stability is key. Our families do not rely on host walls, ensuring they don't get deleted if you move architectural elements.
• Brand-Agnostic: Timeless designs that fit any style, allowing you to focus on layout rather than specific product specifications.

Documentation & Graphics: The "RD_" Standard

This library is engineered for Construction Documents (CDs). It respects your template, supports global standards, and strictly follows BIM best practices.

Metric & Imperial Native

We don't just auto-convert units. All families are meticulously set up with rounded, clean dimensions for both Metric (cm) and Imperial (ft/in) unit systems. You get clean numbers regardless of which system your project uses.

Global Graphic Standards (EU/AU & US)

Whether you work in Europe, Australia, or the US, our elevation graphics adapt to your local standard. With a single click, you can toggle between the EU/AU style (pointing to hinge) and the US style (pointing to handle) for opening lines.

Granular Graphic Control

Customize the look of your plans without editing the family geometry. Our instance parameters allow you to toggle internal details like Hangers and Wardrobe Thickness Lines. You can also adjust door swing angles in plan views (90°, 45°, or None) to fit the scale of your drawing.

Deep Subcategory Support

We don't just dump geometry on "Generic Lines." We utilize specific subcategories for every critical graphic element, including Opening Lines (Plan & Elev), Circulation Zones, and Clearance Zones. This gives you global control over line weights, colors, and patterns via the Object Styles menu.

Automatic Overhead Lines

Never lose track of high-level items. Wall cabinets, tall storage units, and high shelving automatically project dashed overhead lines in floor plans, ensuring your layouts remain fully legible above the cut plane.

MEP Connectors & Scheduling

This library bridges the gap between architecture and engineering. All electrical equipment (Fridges, Ovens, Washers) includes correct MEP Connectors, allowing you to circuit them properly and include them in electrical schedules without adding extra connectors.

Customizable Electrical Symbols

Maintain clarity in your documentation with flexible symbology. You can toggle electrical symbols on or off and switch between Text-based symbols (e.g., "FR" for Fridge) or our custom Graphic-based symbols to match your firm's standards.

The "RD_" Prefix System

Organization is key to a healthy model. Every Family, Material, and Appearance Asset in this pack starts with the "RD_" prefix. This groups all our content together, ensuring your Project Browser and Material lists remain perfectly organized and easy to search.

🎁 BONUS: Full Apartment Project File Included

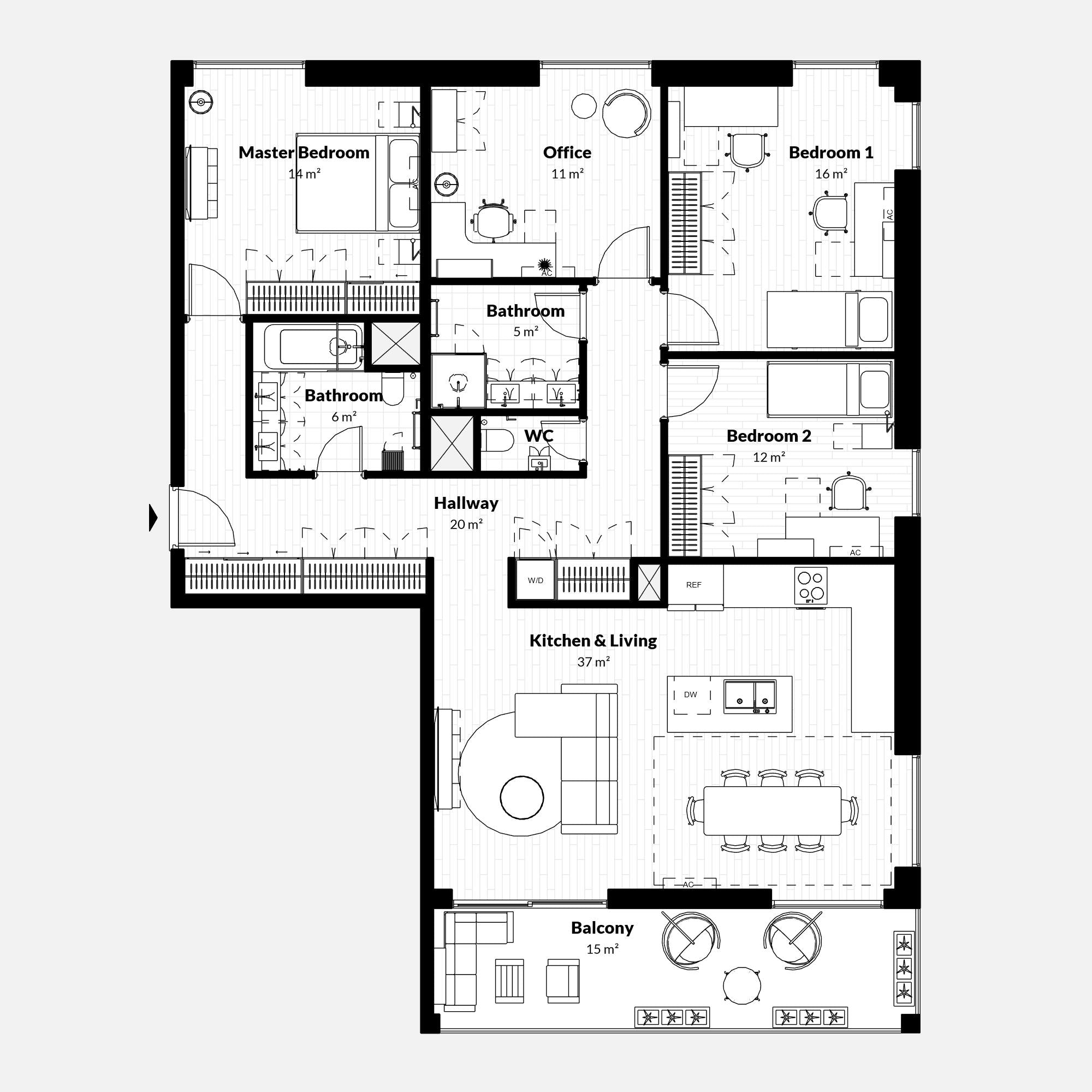

We don't just give you the families; we give you the "cheat codes" to make them look great. Your purchase includes a Fully Designed L-Shaped Apartment Project (.RVT).

• Real-World Context: See exactly how the systems interact in a dense layout.
• Steal Our Graphics: This project includes our custom View Templates, Filters, and Graphic Overrides. Transfer these standards to your own projects to instantly achieve the professional look shown in our renders.

What’s Included

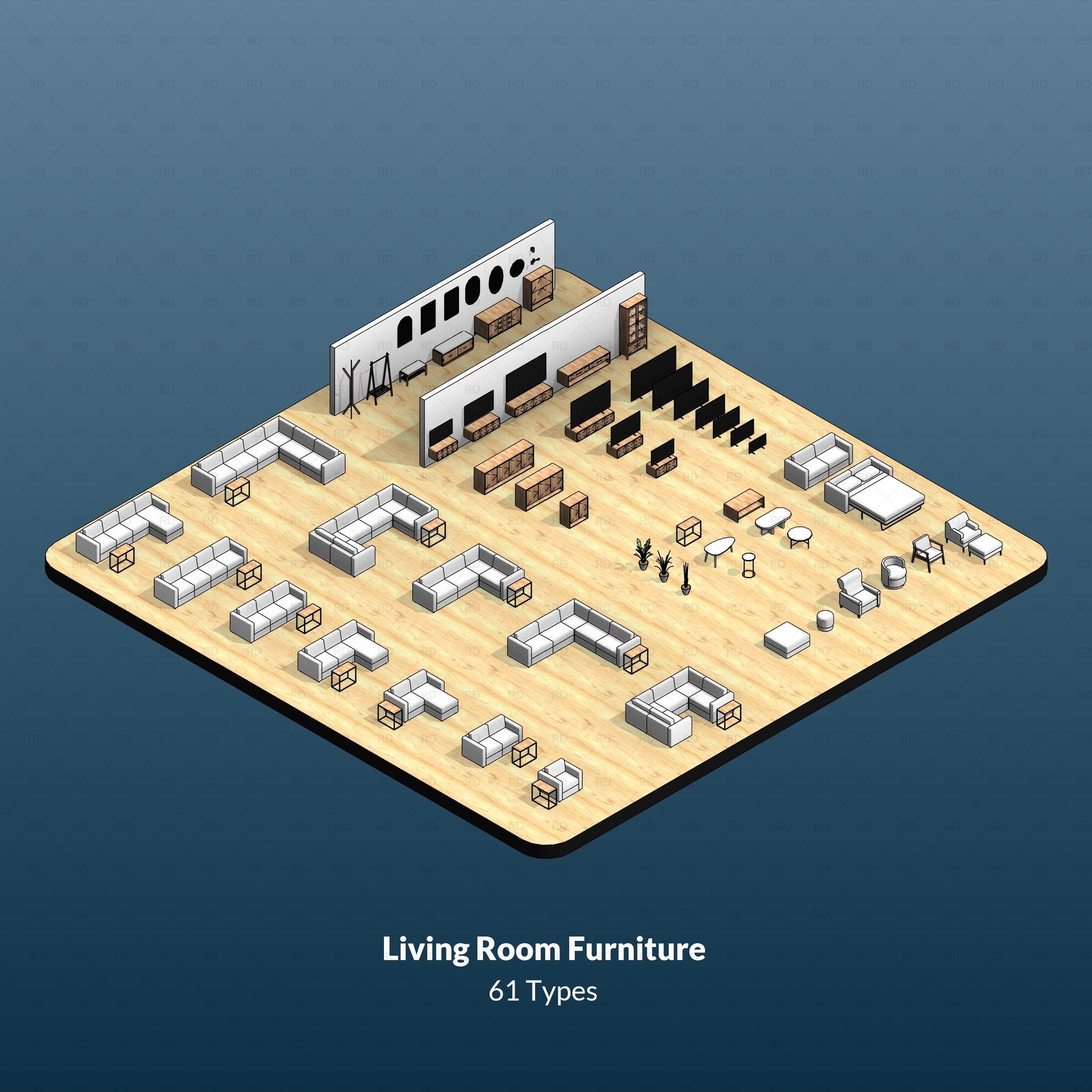

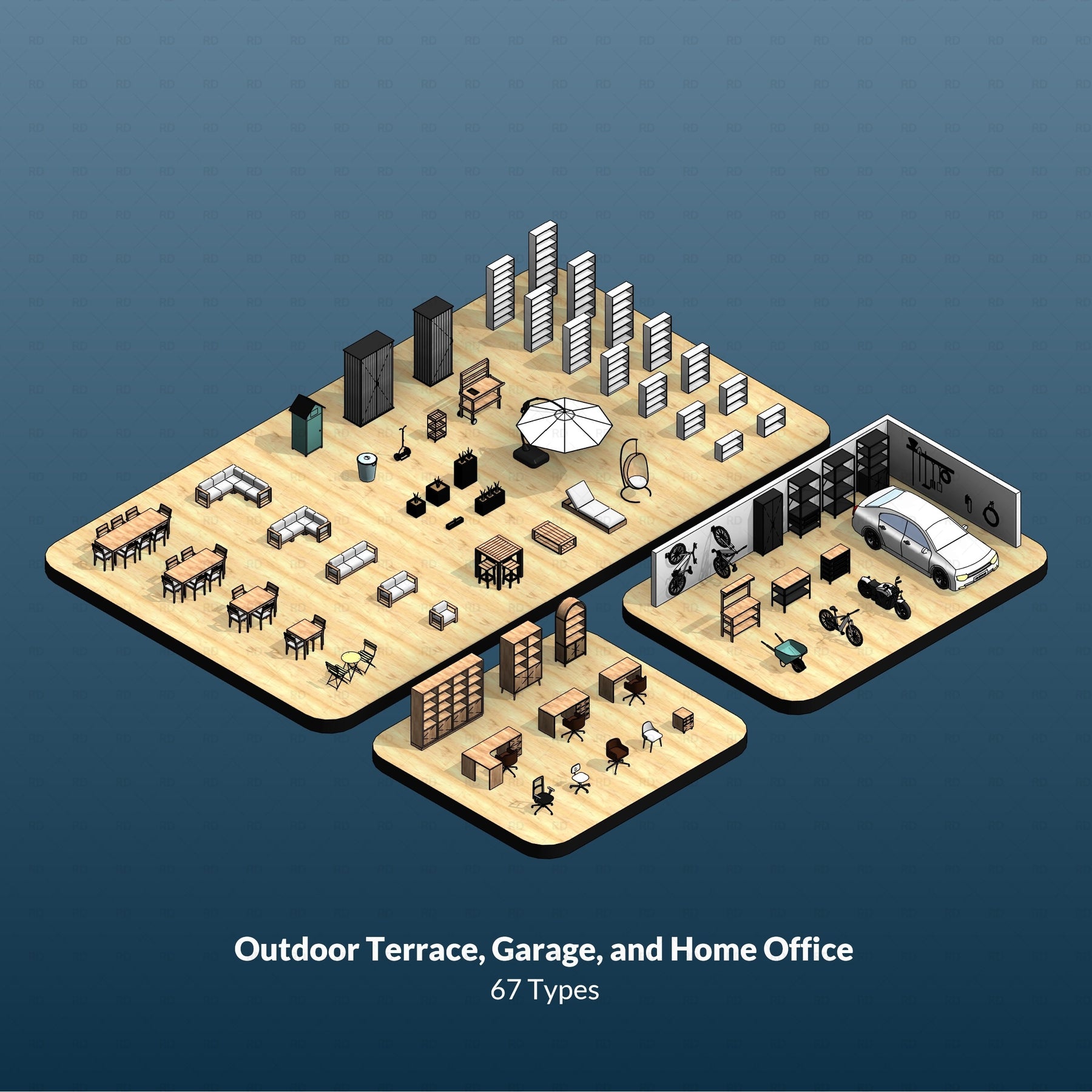

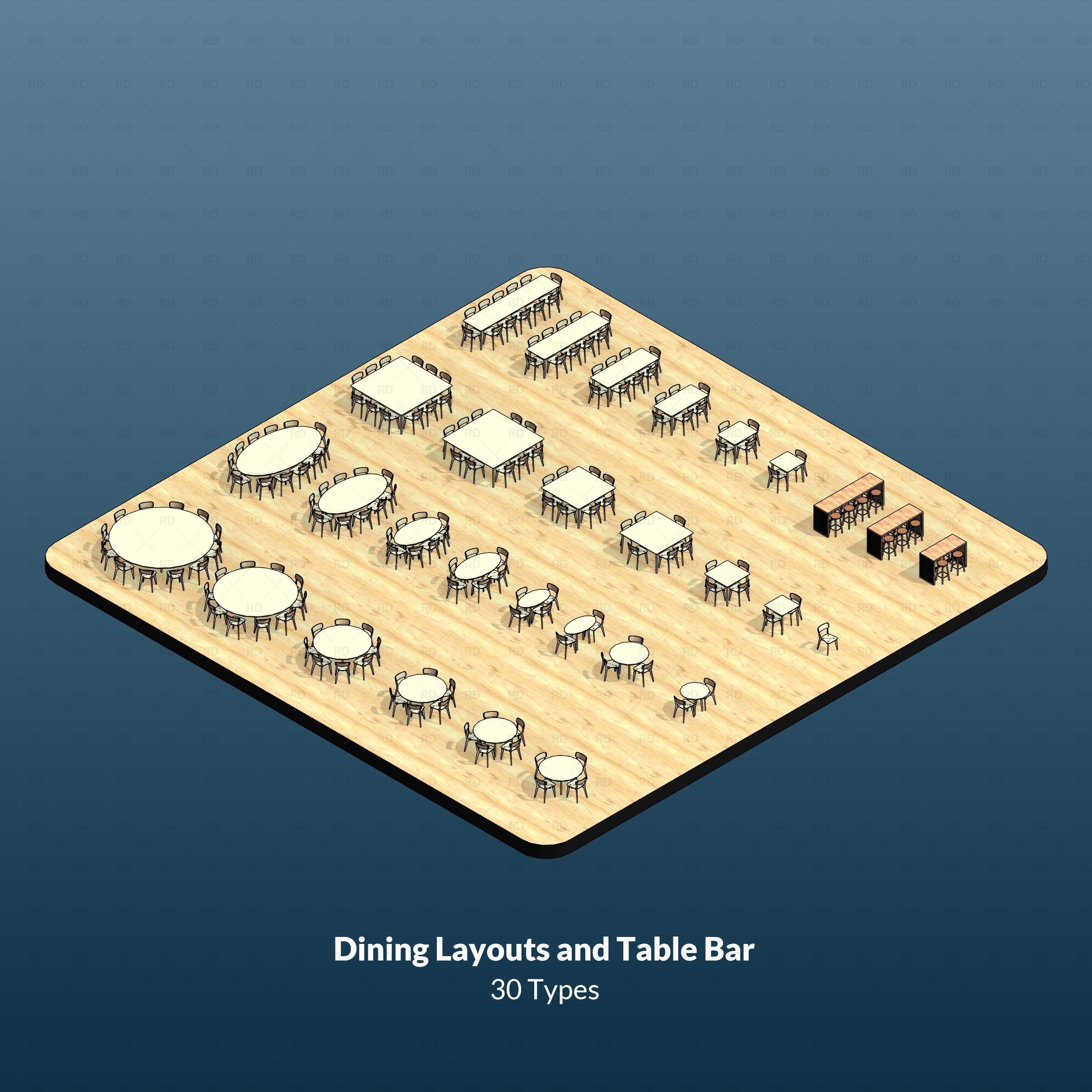

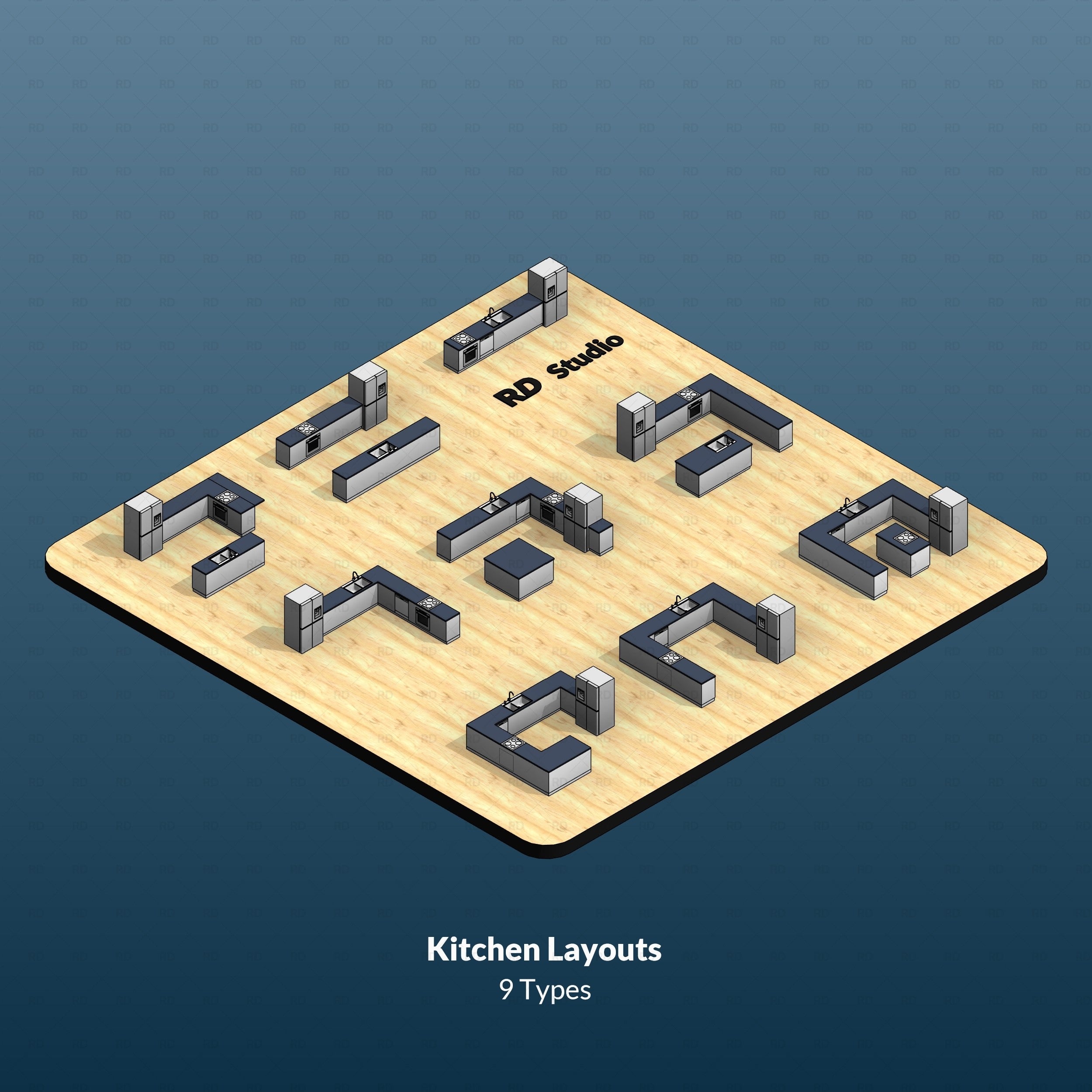

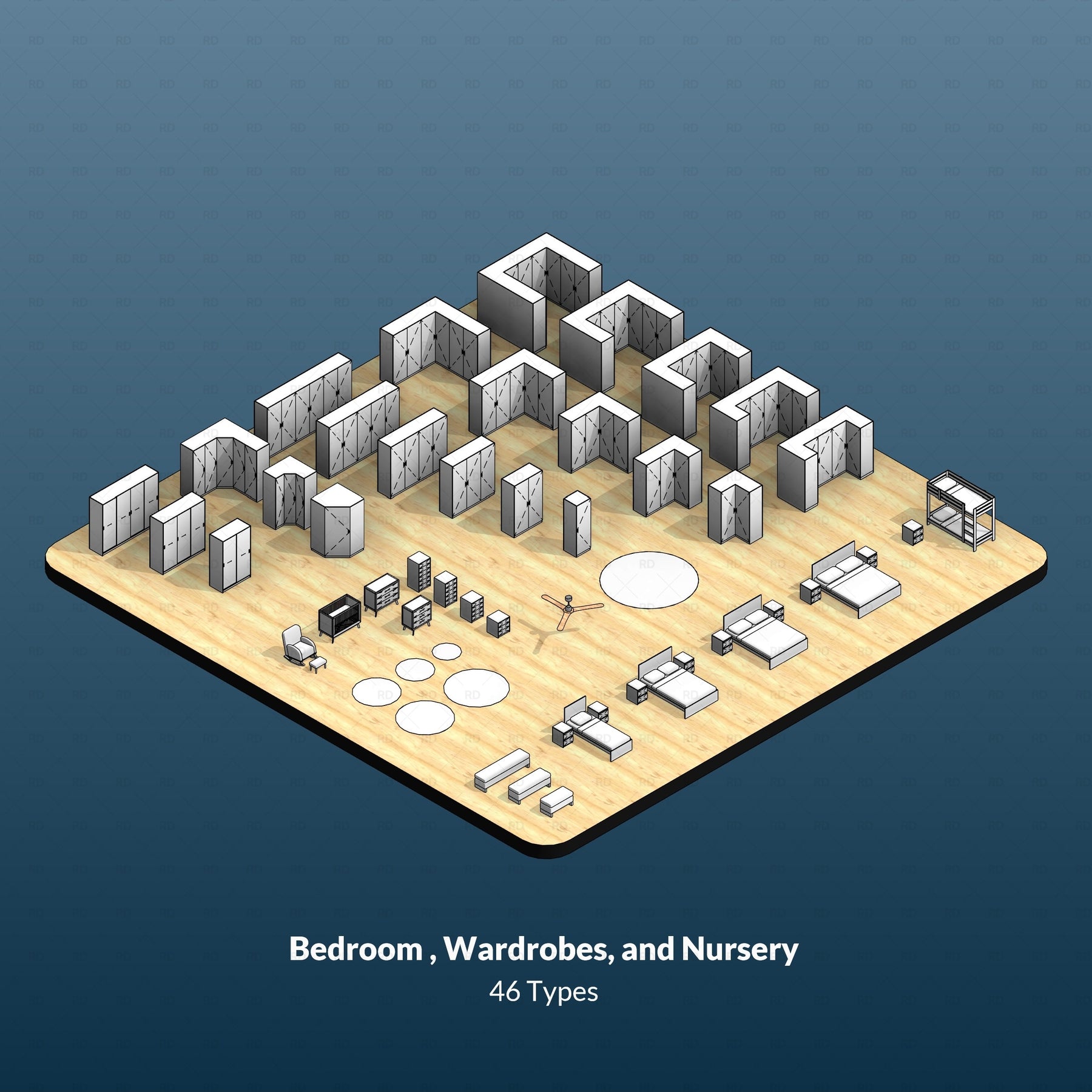

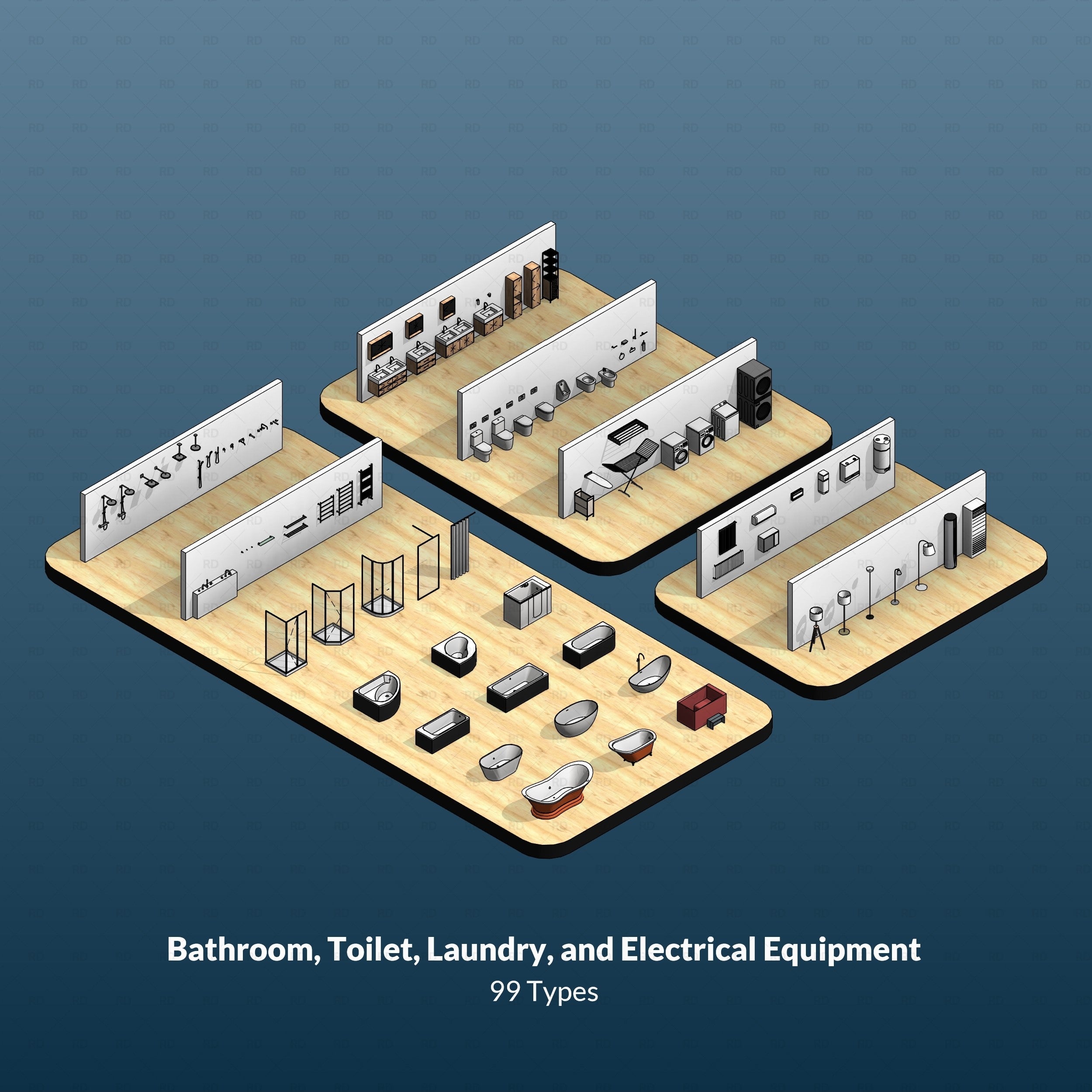

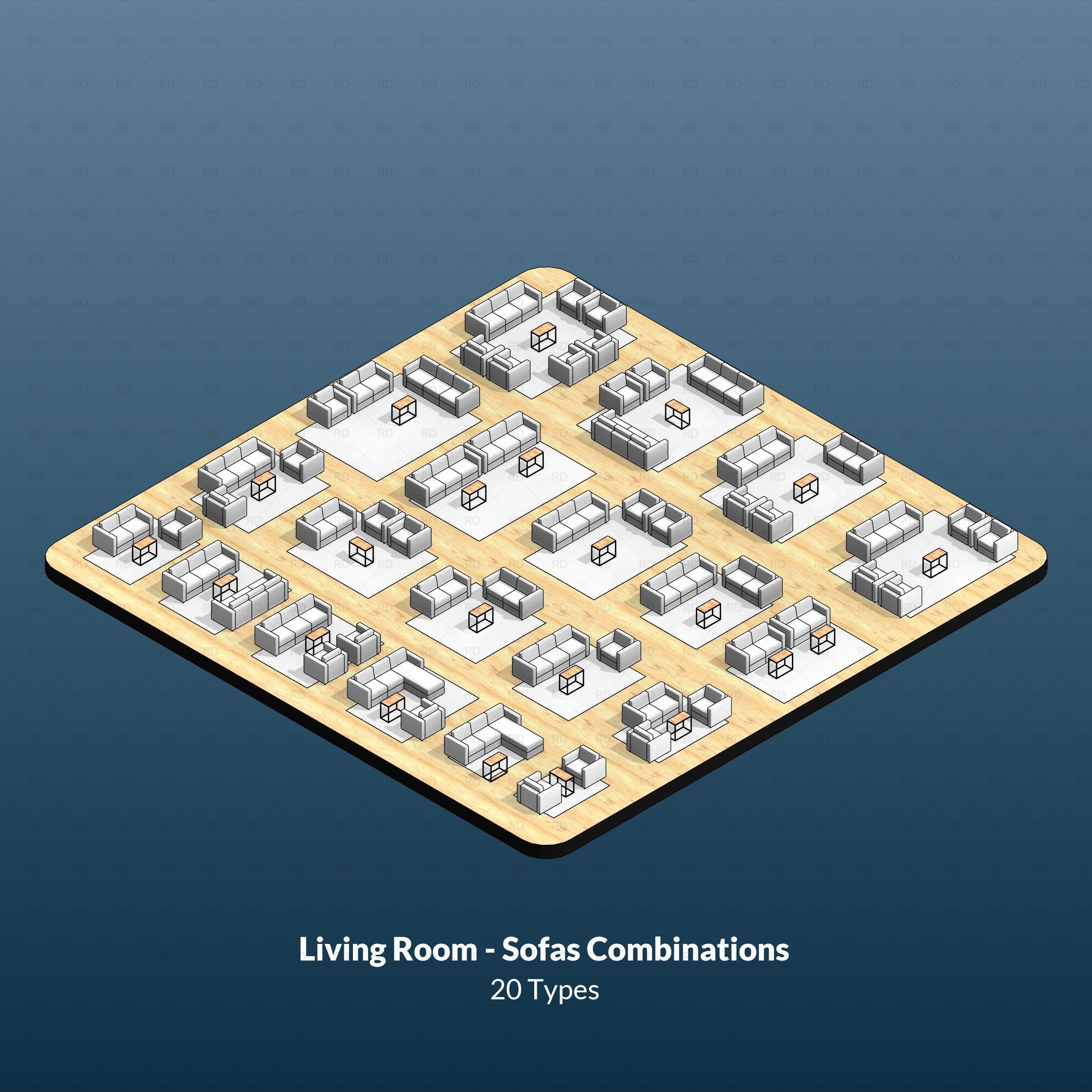

The pack contains 219 Unique Families derived into 602 Types. The images above represent 100% of the library content.

Technical Specifications
