Revit Open Wardrobe System 01

$25.00 $19.00
/
License
  • Are you a Student? Select the Educational Use.
A parametric of 9 wardrobe pack featuring open shelving, drawers, and cabinet units with openable doors. Fully customizable in size, layout, and finishes for both residential and retail projects.
  • Digital Download
  • Revit Version: 2020
  • Created by: RD Studio
  • Pack Categories: Furniture
  • Units System: Metric and Imperial

Free Products
Our Free Educational Use License is specifically designed for academic purposes. Under this license, RD Studio's free products can be utilized in educational settings, including classroom activities, academic projects, and other learning initiatives. When using a product, you are required to grant full credit to RD Studio, with an active link for online versions. Additionally, if a project using our product is showcased on social media, you must credit RD Studio with an active tag to our profile. Please note that commercial use of these products under this license is strictly prohibited.

Educational Use
Products labeled "Educational Use" are exclusively for student use in academic settings. These products are intended to support educational development and must not be employed for any commercial purposes.

Commercial Use
With the purchase of a Commercial Use License, you are authorized to use the product in commercial projects without the need to attribute RD Studio. However, the standard prohibitions on reproduction, distribution, and resale, as detailed in the "Strictly Forbidden" section, remain applicable.

University Multi-User License
The University Multi-User License is tailored for educational institutions, allowing up to 30 users, including students and teachers, to use our products for academic purposes. This license facilitates the use of our products in educational environments, such as classroom learning, academic research, and student projects. Redistribution or commercial use of these products under this license is not allowed.

Strictly Forbidden
You are not allowed to reproduce, distribute, copy or sell the contents of RD Studio at any circumstances. Products can’t be sold without being part of a bigger project or work combining RD Studio digital products with other graphics, modeling or digital elements. Also, you are not allowed to use products from RD Studio in similar or any competing services.

Zip Folders
To unzip a ZIP folder, right-click to select Extract Here.

How to Load Revit Families
1. Open Revit, go to the Insert Tab and Press on Load Family
2. Choose the downloaded family from your computer

For more information please visit our download and install instructions page.

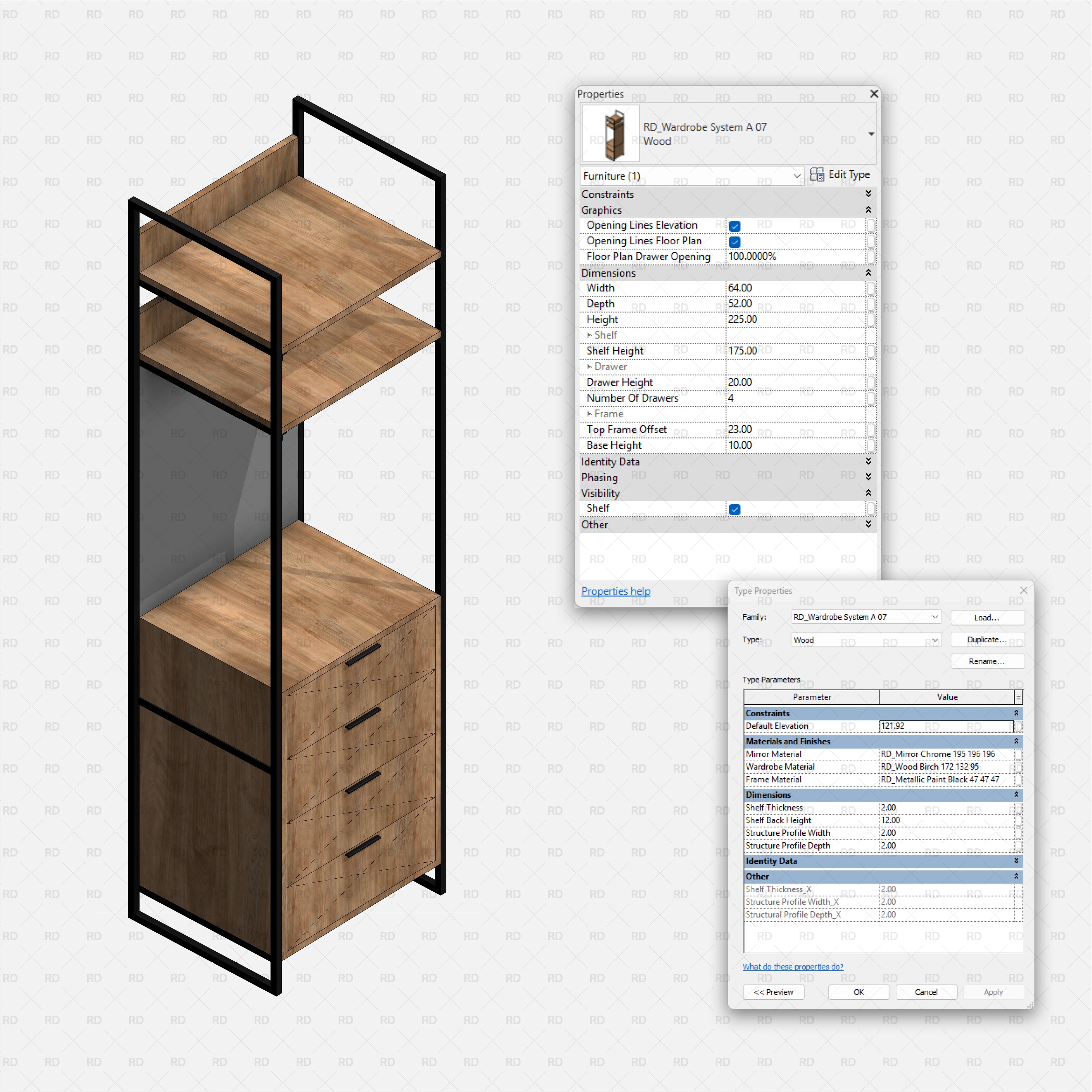

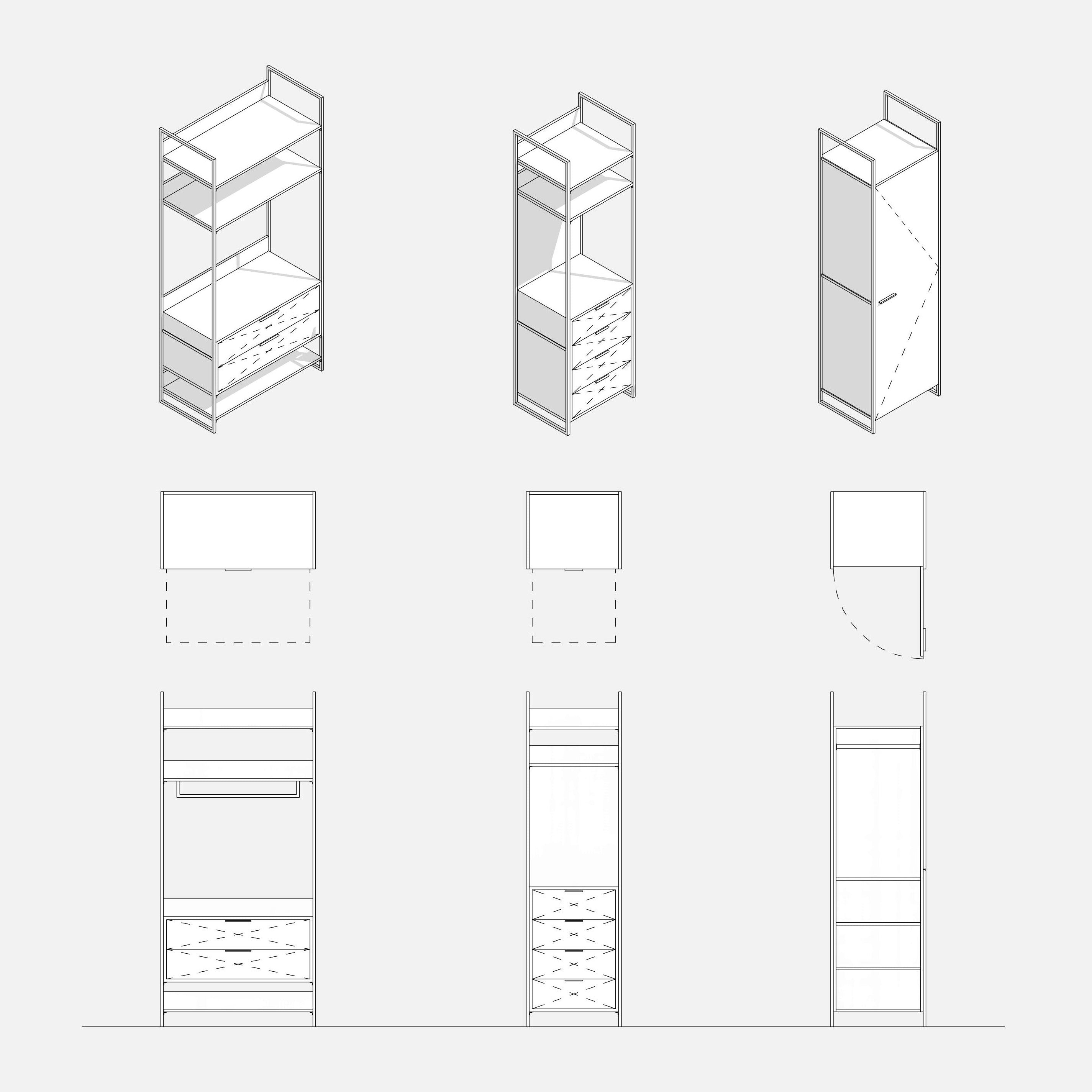

πŸ“ Opening Line Control

Toggle opening lines on or off across elevations, floor plans, and 3D views - perfect for clean documentation and clear design communication.

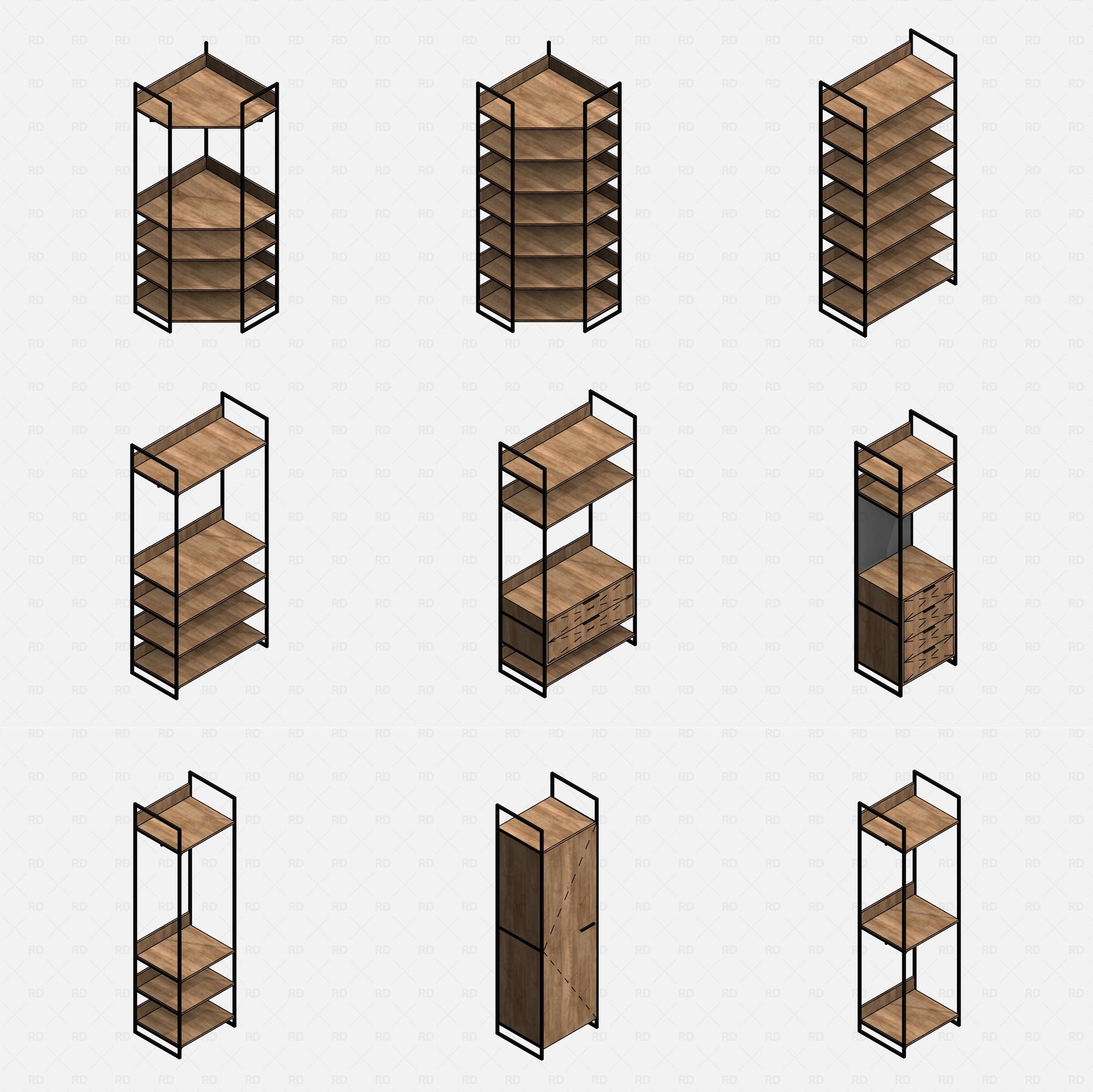

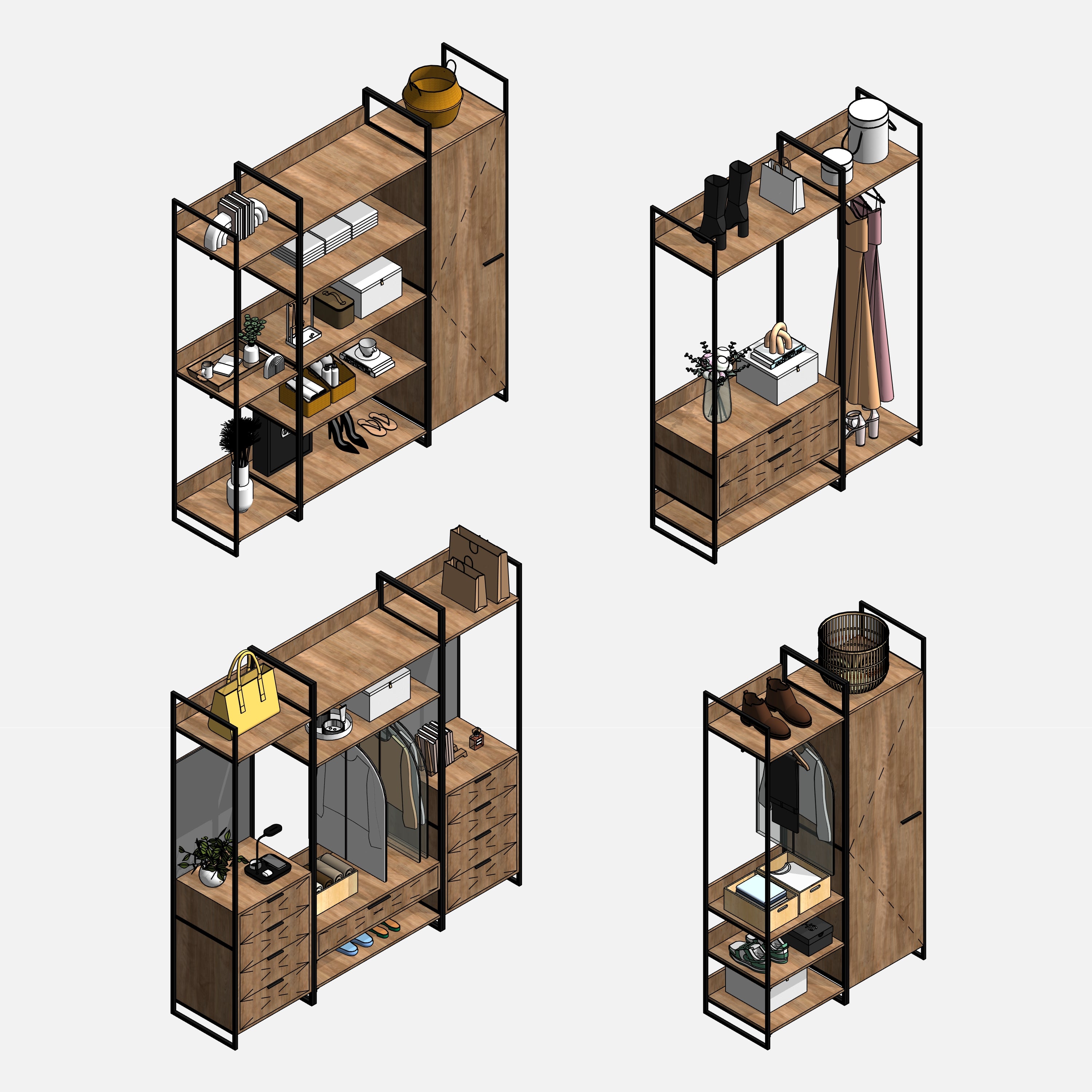

πŸͺž Wardrobe Variations

Choose from multiple wardrobe types including open shelving, drawers, and cabinet units with doors - adaptable to both residential and retail interiors.

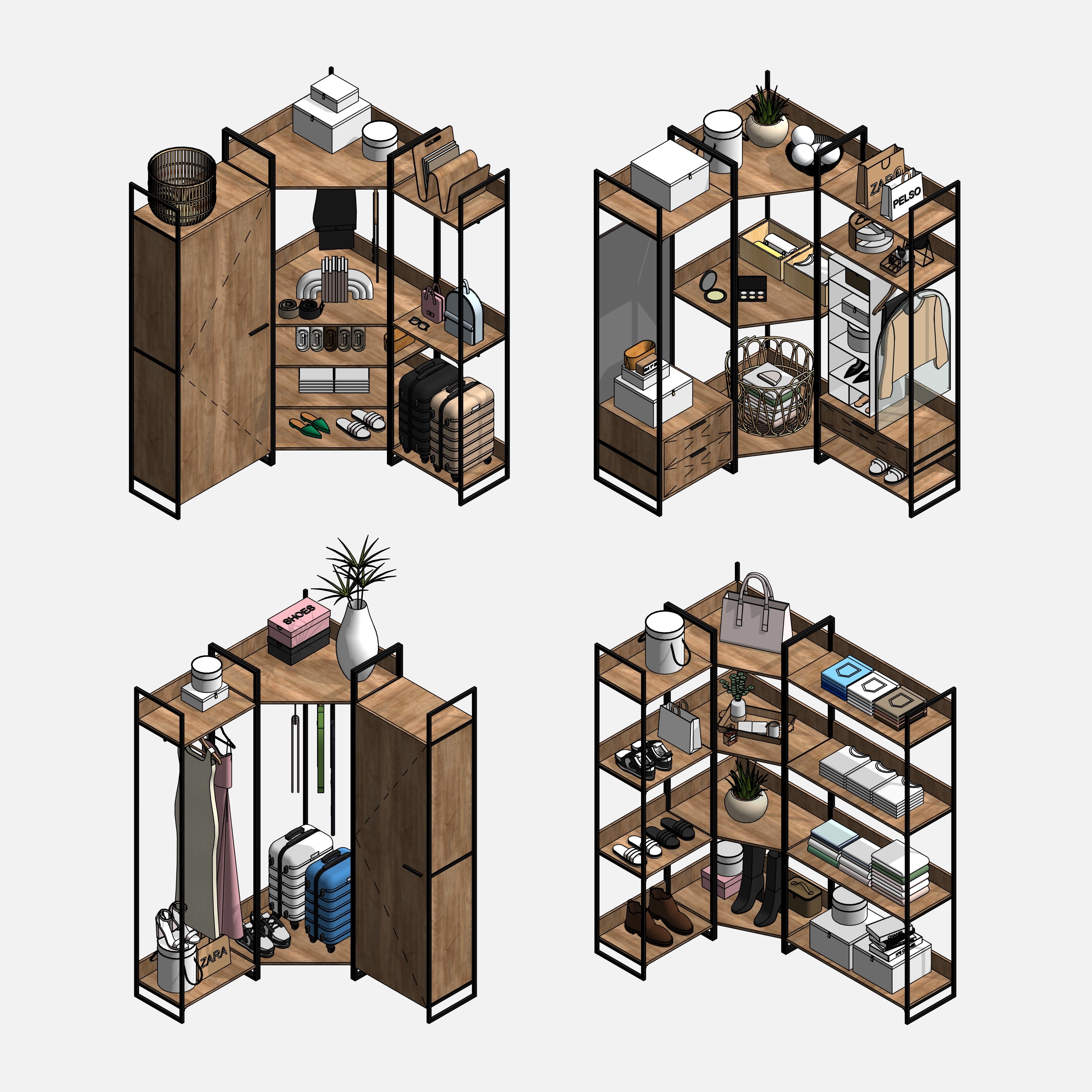

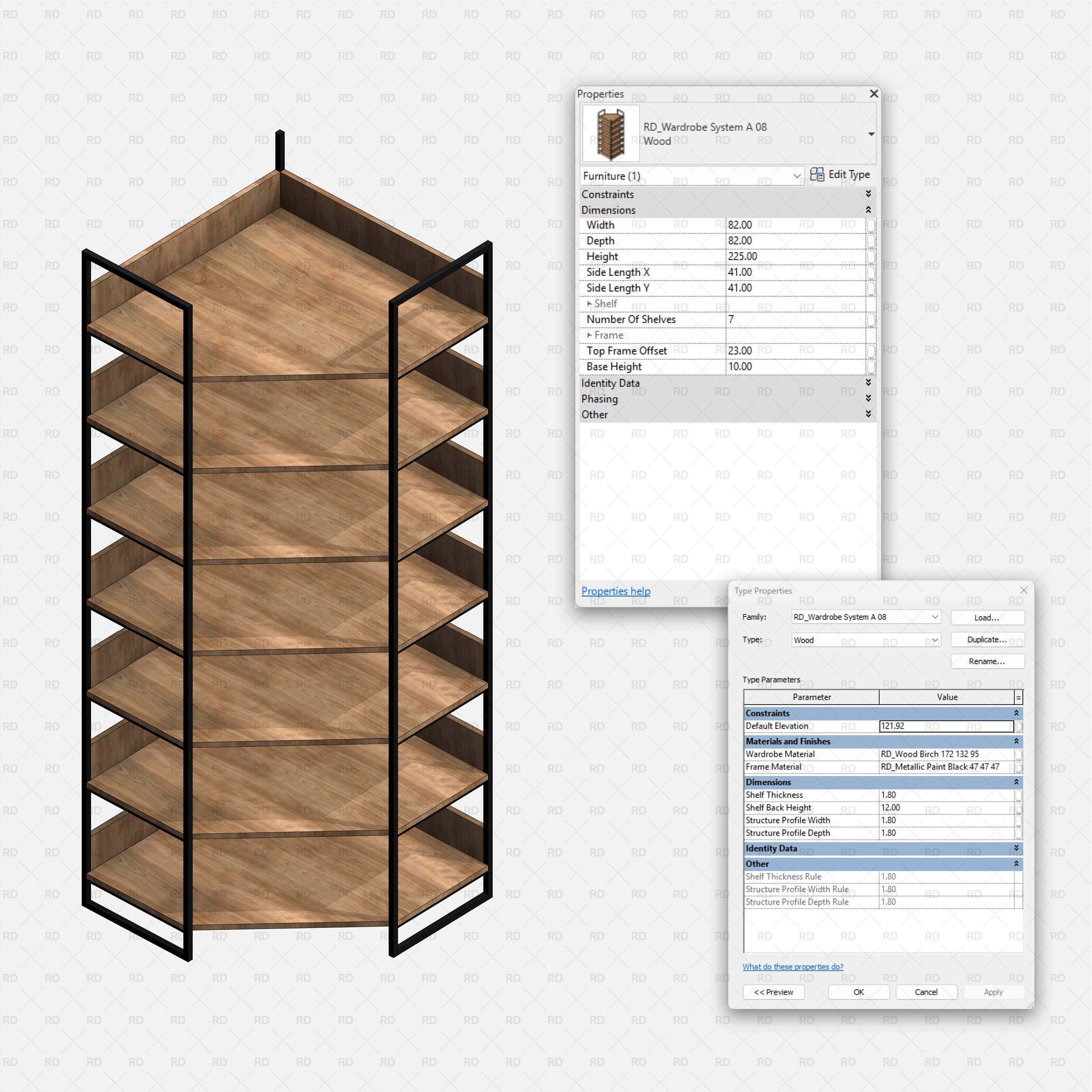

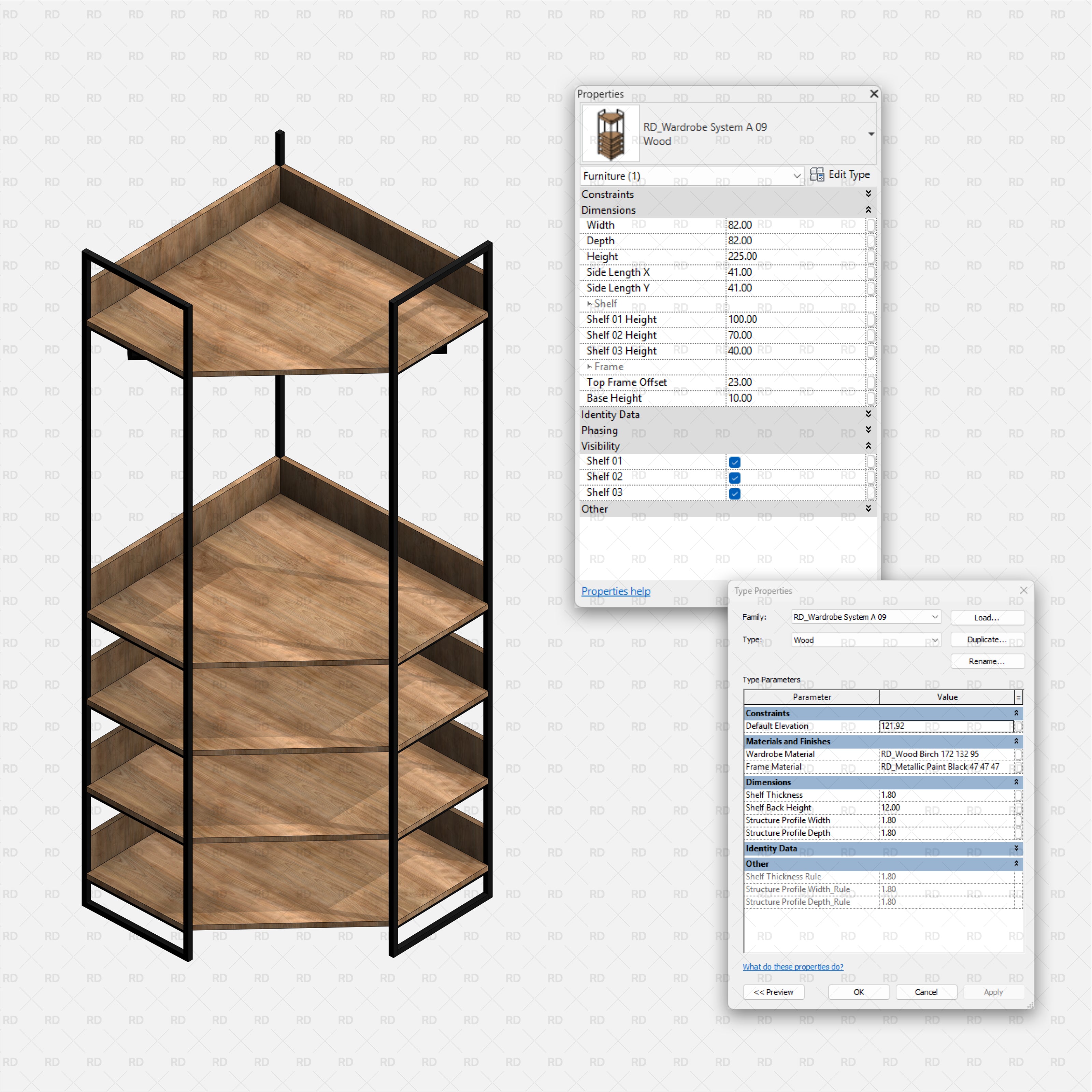

πŸ“ Corner Wardrobe Options

Make the most of every layout with corner wardrobes, complete with shelving variations to fit tight spaces and maximize storage flexibility.

Revit Open Wardrobe System 01

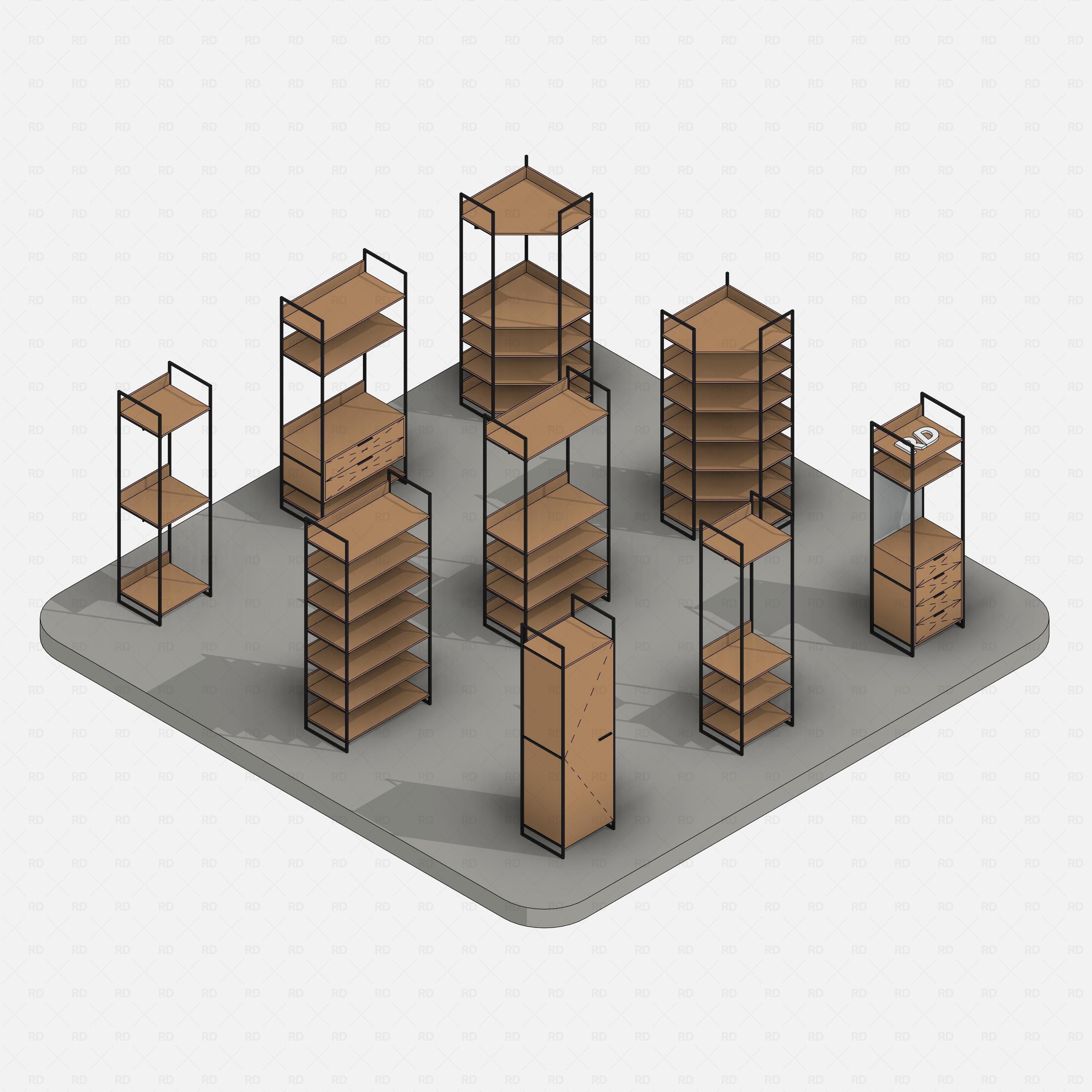

Looking for versatile Revit wardrobe families that adapt to any interior project? This collection includes 9 wardrobe models featuring open shelving, integrated drawers, and options for openable cabinet doors. Designed for both residential and retail spaces, each family is fully parametric, lightweight, and easy to modify - helping you save time while delivering BIM-ready results.

Whether you’re designing walk-in closets, bedrooms, or boutique displays, these wardrobes give you full flexibility: adjust dimensions, toggle cabinet doors, configure shelving, and incorporate drawers - all with clean documentation across plan, elevation, and 3D views.

πŸ“ Parametric Flexibility

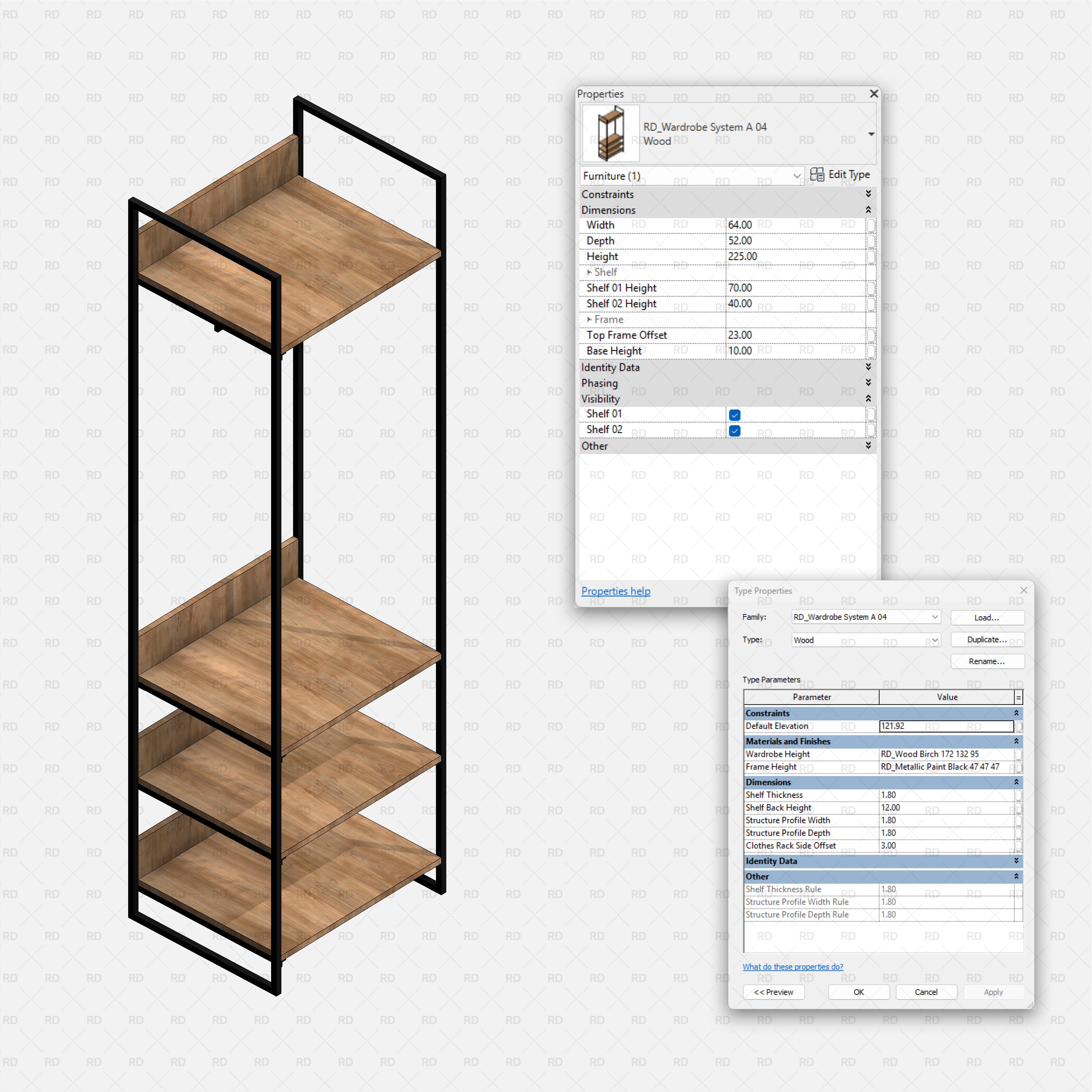

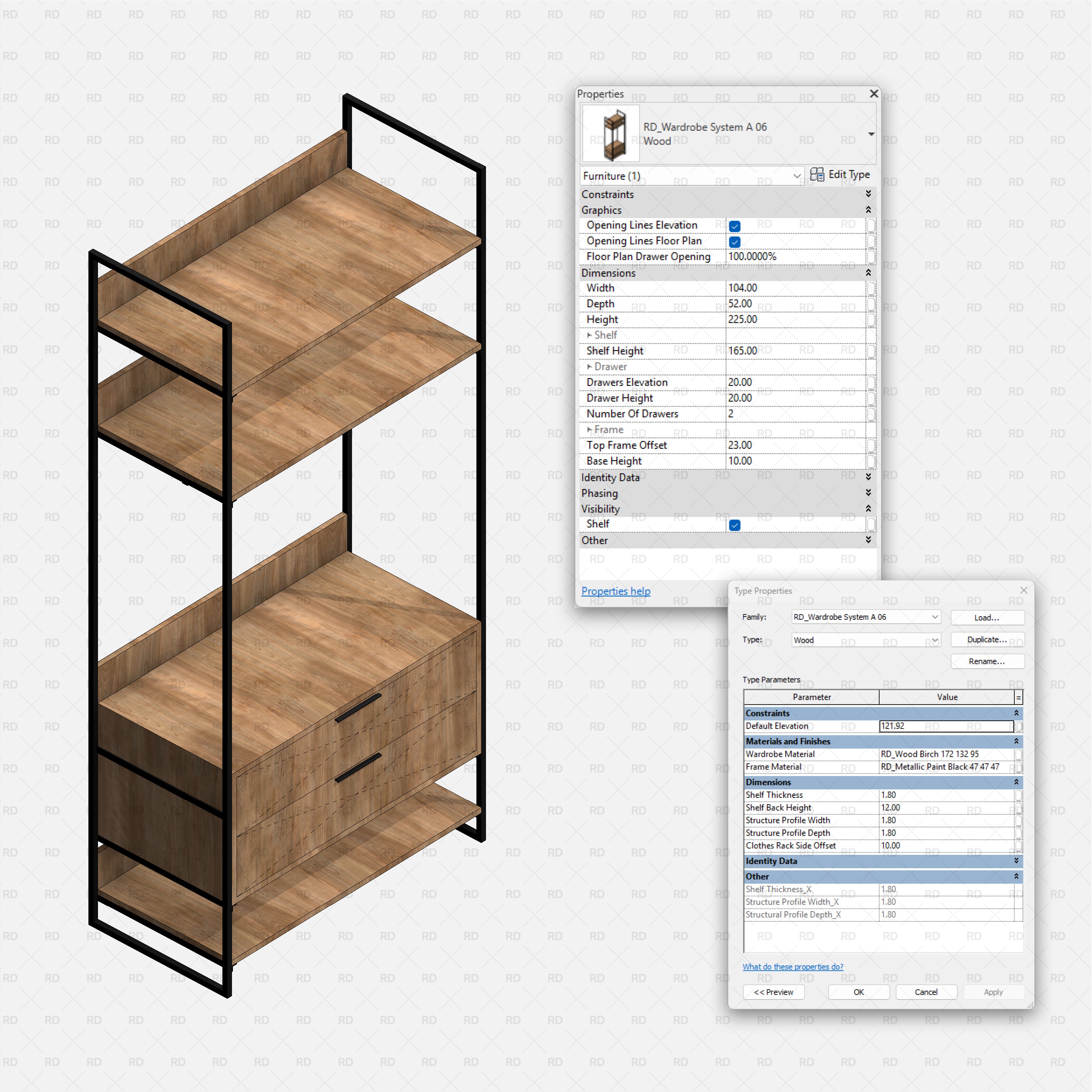

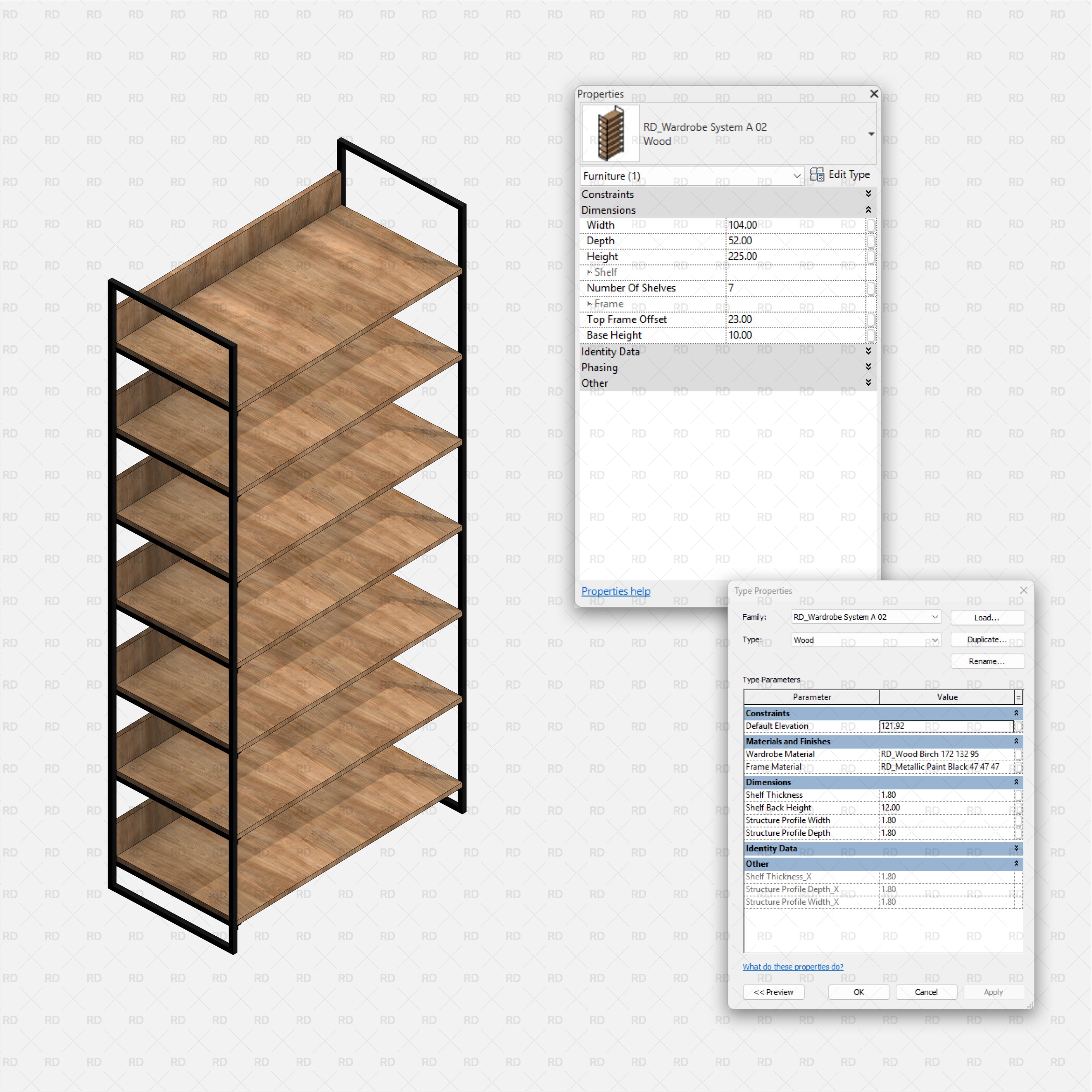

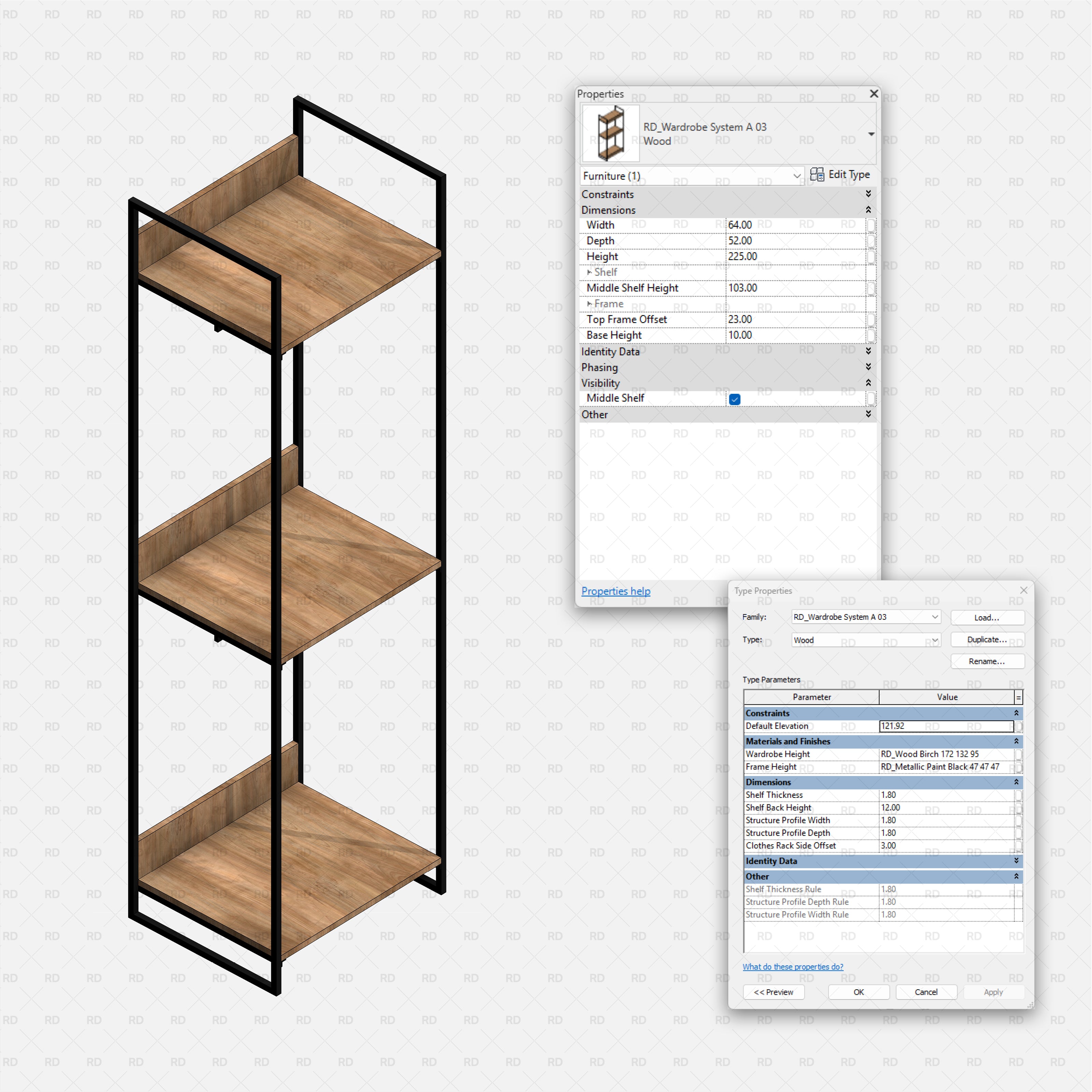

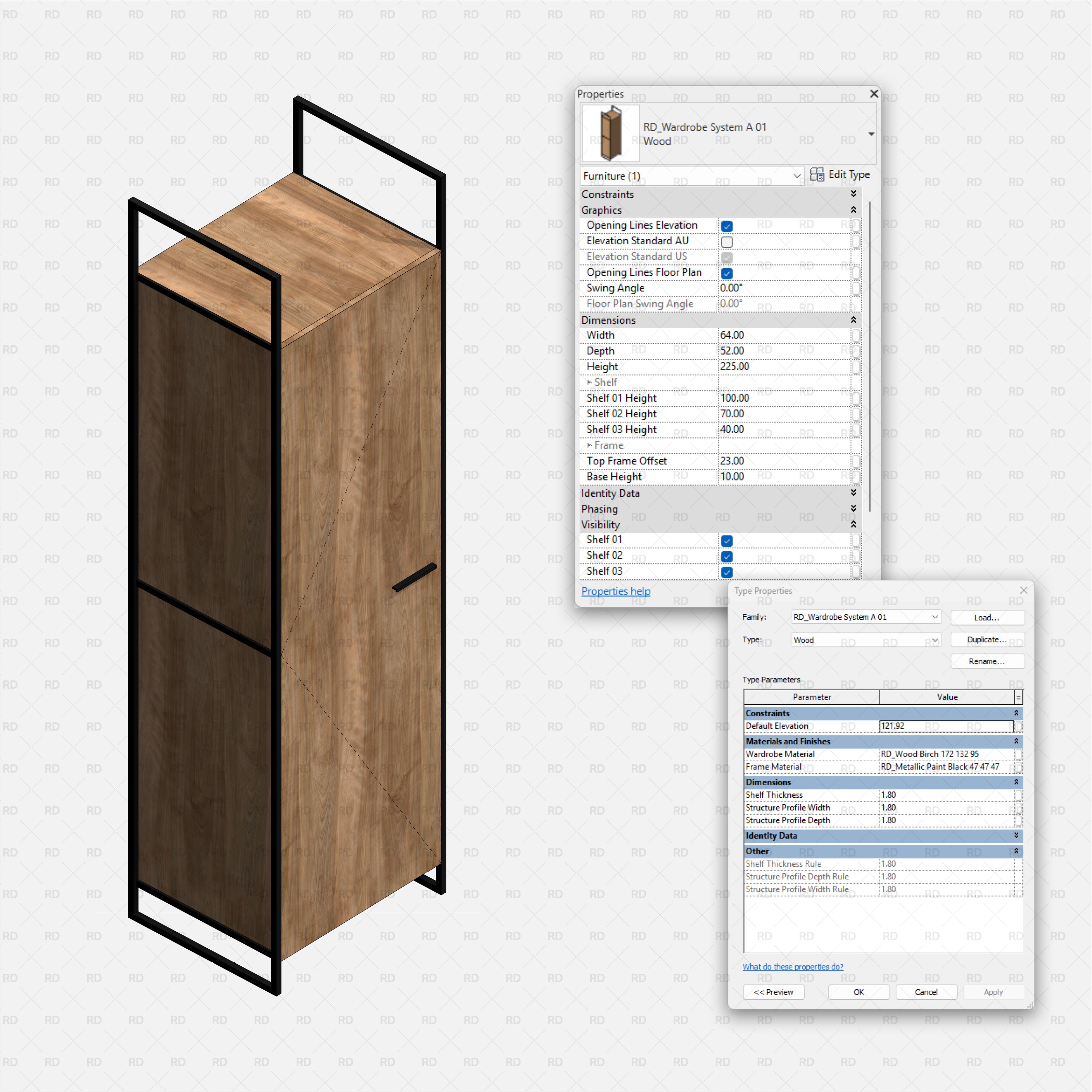

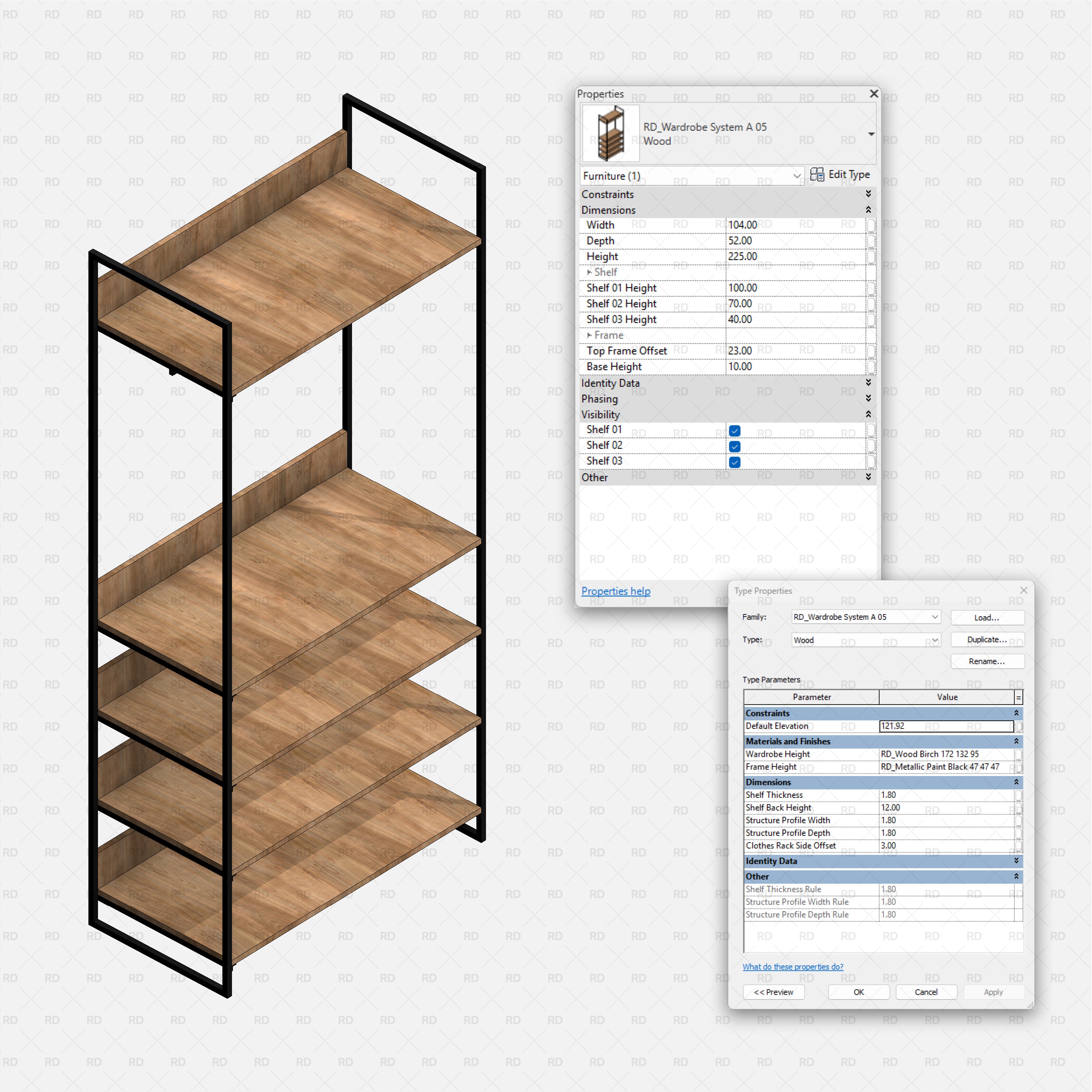

Each wardrobe family is built to be fully parametric, giving you complete control over dimensions, shelving layouts, and storage options. Easily adjust height, width, and depth, and open or close cabinet doors to match your design intent.

🎨 Diverse Styles

This pack combines wardrobes with open shelving, integrated drawers, and cabinet units featuring openable doors. With material parameters, you can easily switch between wood, laminates, or custom finishes- giving you the flexibility to match any residential or retail interior design.

  • Highly parametric – adjust dimensions, shelves, and door opening angle
  • Includes multiple wardrobe types in one pack
  • Clean results in 2D and 3D for fast documentation
  • Metric and Imperial versions included

Technical Specifications

  • Category: Furniture – Wardrobes
  • Editable parameters: Width, Depth, Height, Shelf Height, Base Height, Doors, Materials
  • LOD: 300 – optimized for design and documentation
  • Opening lines in floor plan and elevation included
  • Compatibility: Revit 2020+
  • File organization: Metric and Imperial versions

Downloads

  • 9 Revit wardrobe families (.rfa)

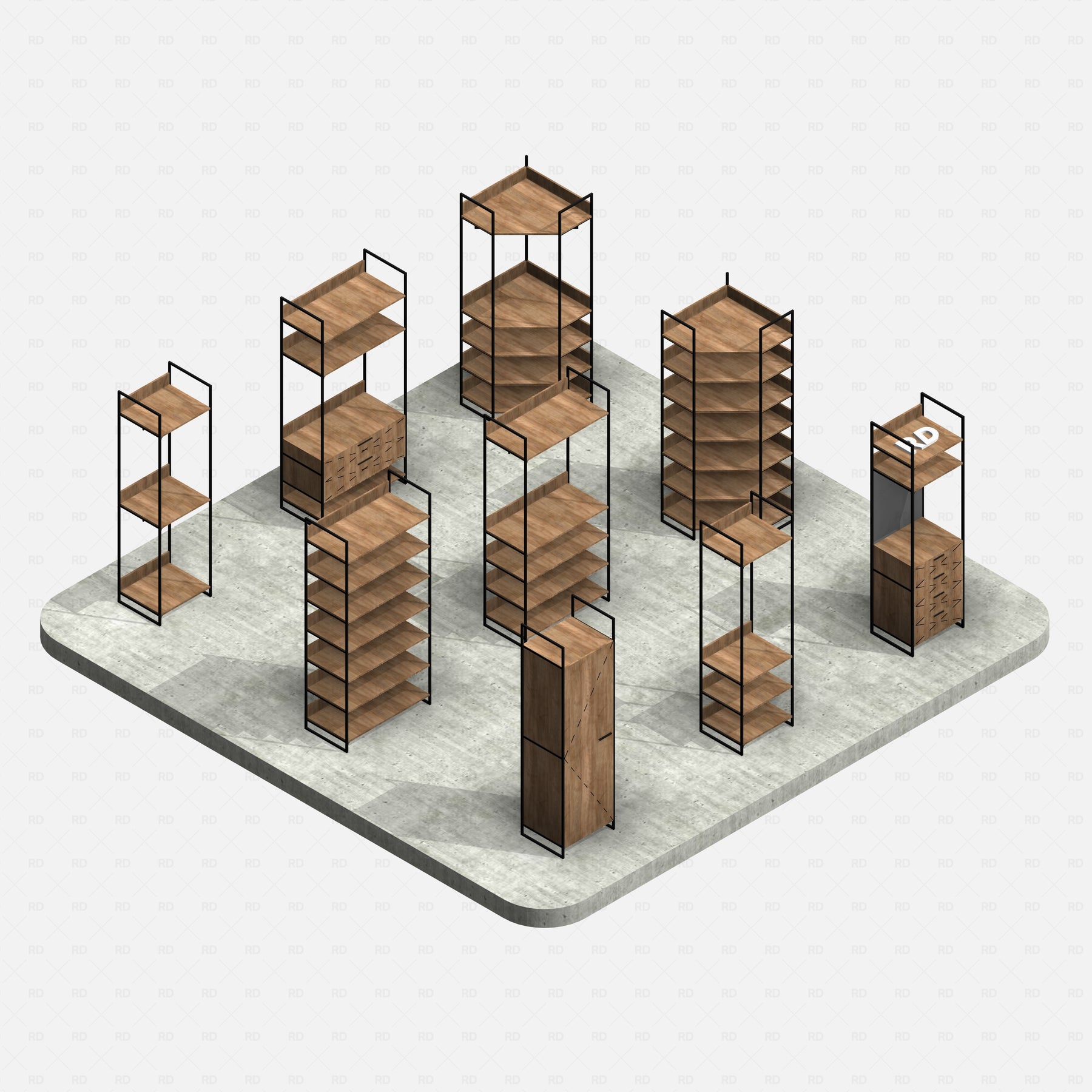

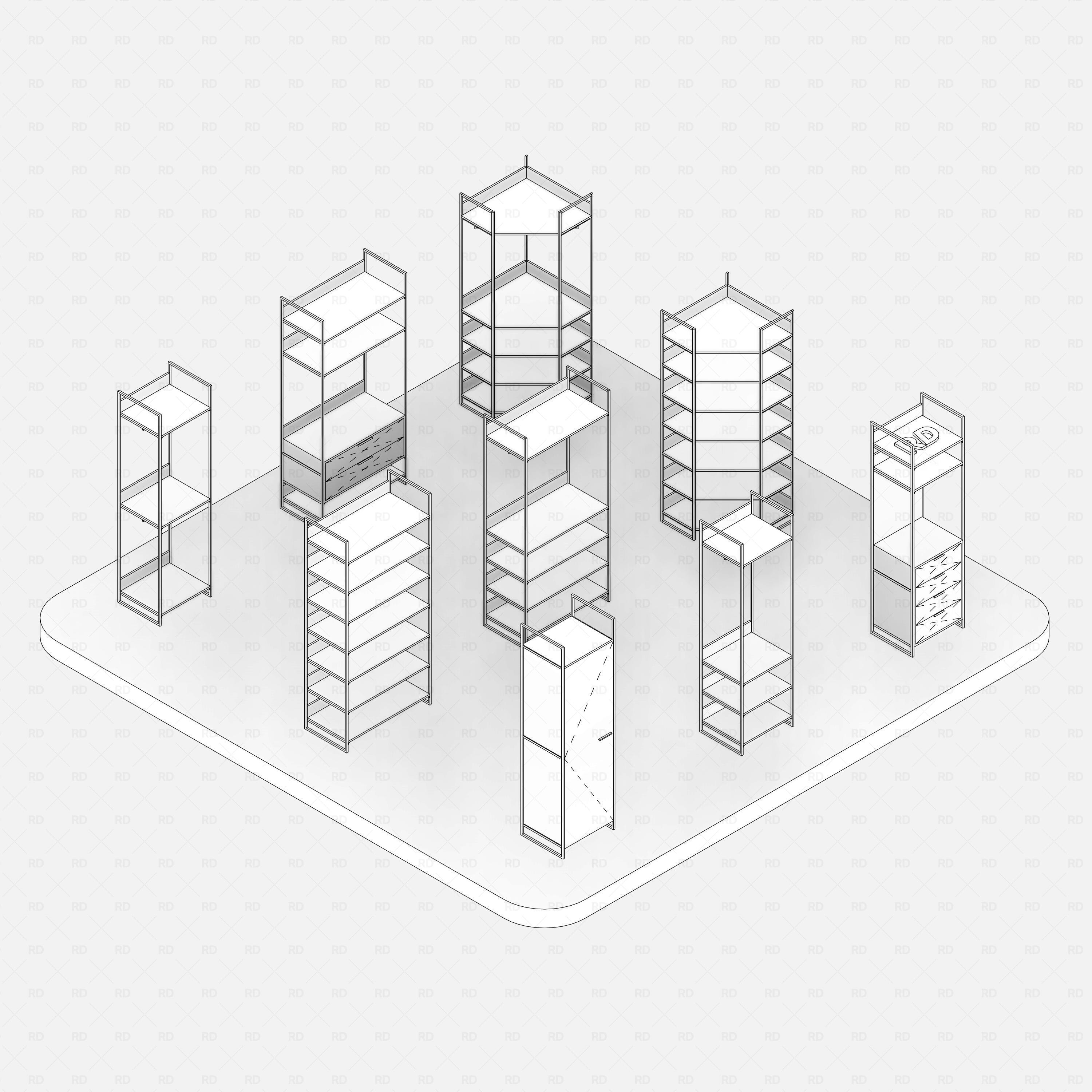

  • Showroom file for quick previews
  • Metric and Imperial versions

Ideal Use Cases

  • 🏬 Retail Projects – fashion boutiques, mall interiors, display wardrobes
  • 🏑 Residential Projects – open wardrobes, walk-in closets, bedroom wardrobes
  • 🎭 Exhibition & Showroom Displays – branded display wardrobes with customizable panels

Please make sure your Revit version is compatible with the product version

  • Revit Version: 2020
  • The download folder includesΒ 9 Revit Families

Pack Categories:

  • Furniture

Units System:

  • Metric
  • Imperial

RD Studio is a creative BIM factory that creates high-quality Families for Revit and Dynamo ScriptsΒ with a focus on innovation and functionality.
