Revit Steel Windows and Doors (Metric + Imperial)

$89.00
/
License
  • Are you a Student? Select the Educational Use.
Download 19 parametric Revit steel windows and doors with showroom files. Includes metric and imperial units. Slim profiles, flexible layouts, ready to use.
  • Digital Download
  • Revit Version: 2022
  • Created by: Stanislav Stanislavov
  • Pack Categories: Doors and Window
  • Units System: Metric and Imperial

Free Products
Our Free Educational Use License is specifically designed for academic purposes. Under this license, RD Studio's free products can be utilized in educational settings, including classroom activities, academic projects, and other learning initiatives. When using a product, you are required to grant full credit to RD Studio, with an active link for online versions. Additionally, if a project using our product is showcased on social media, you must credit RD Studio with an active tag to our profile. Please note that commercial use of these products under this license is strictly prohibited.

Educational Use
Products labeled "Educational Use" are exclusively for student use in academic settings. These products are intended to support educational development and must not be employed for any commercial purposes.

Commercial Use
With the purchase of a Commercial Use License, you are authorized to use the product in commercial projects without the need to attribute RD Studio. However, the standard prohibitions on reproduction, distribution, and resale, as detailed in the "Strictly Forbidden" section, remain applicable.

University Multi-User License
The University Multi-User License is tailored for educational institutions, allowing up to 30 users, including students and teachers, to use our products for academic purposes. This license facilitates the use of our products in educational environments, such as classroom learning, academic research, and student projects. Redistribution or commercial use of these products under this license is not allowed.

Strictly Forbidden
You are not allowed to reproduce, distribute, copy or sell the contents of RD Studio at any circumstances. Products can’t be sold without being part of a bigger project or work combining RD Studio digital products with other graphics, modeling or digital elements. Also, you are not allowed to use products from RD Studio in similar or any competing services.

Zip Folders
To unzip a ZIP folder, right-click to select Extract Here.

How to Load Revit Families
1. Open Revit, go to the Insert Tab and Press on Load Family
2. Choose the downloaded family from your computer

For more information please visit our download and install instructions page.

Revit Steel Profile Windows and Doors (Metric + Imperial)

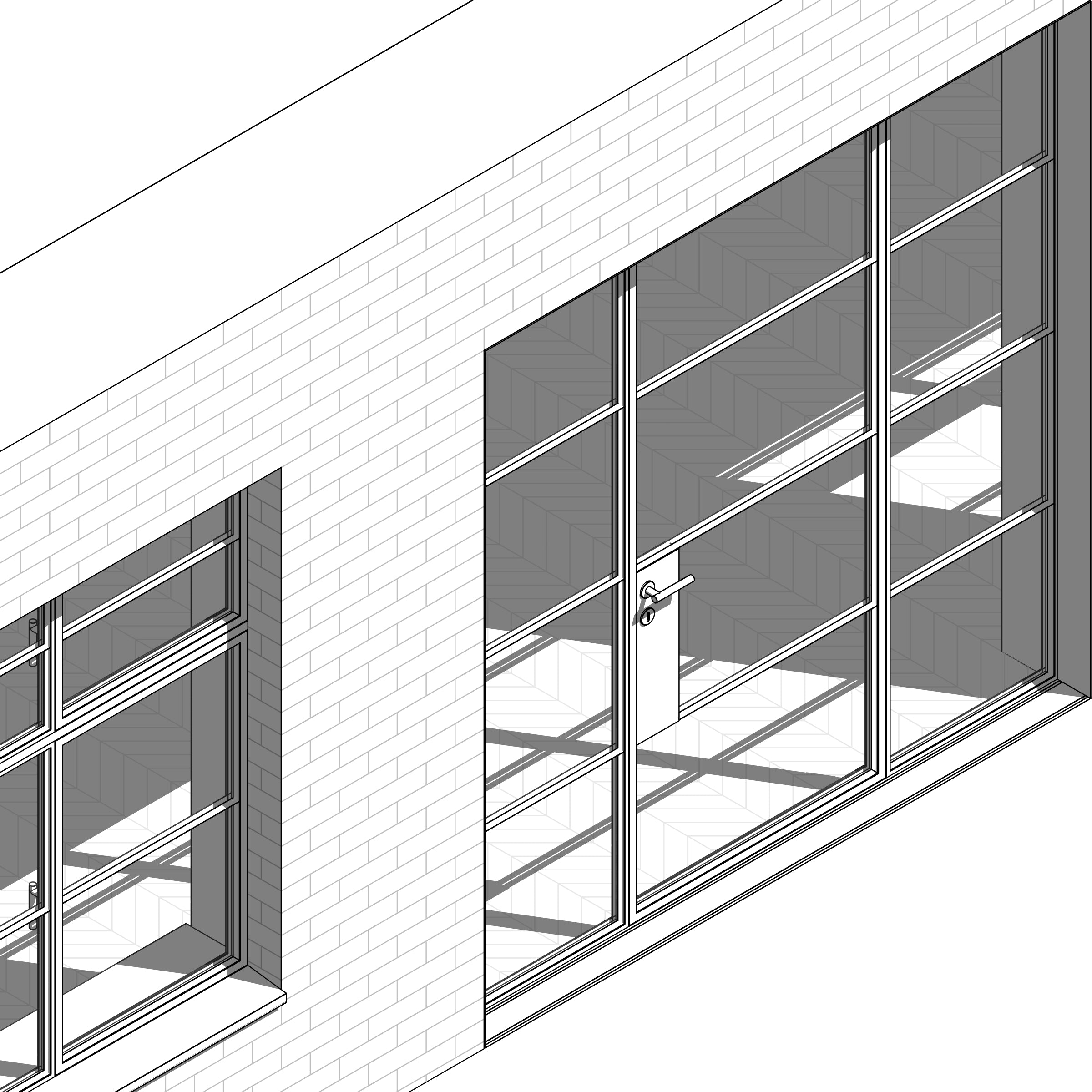

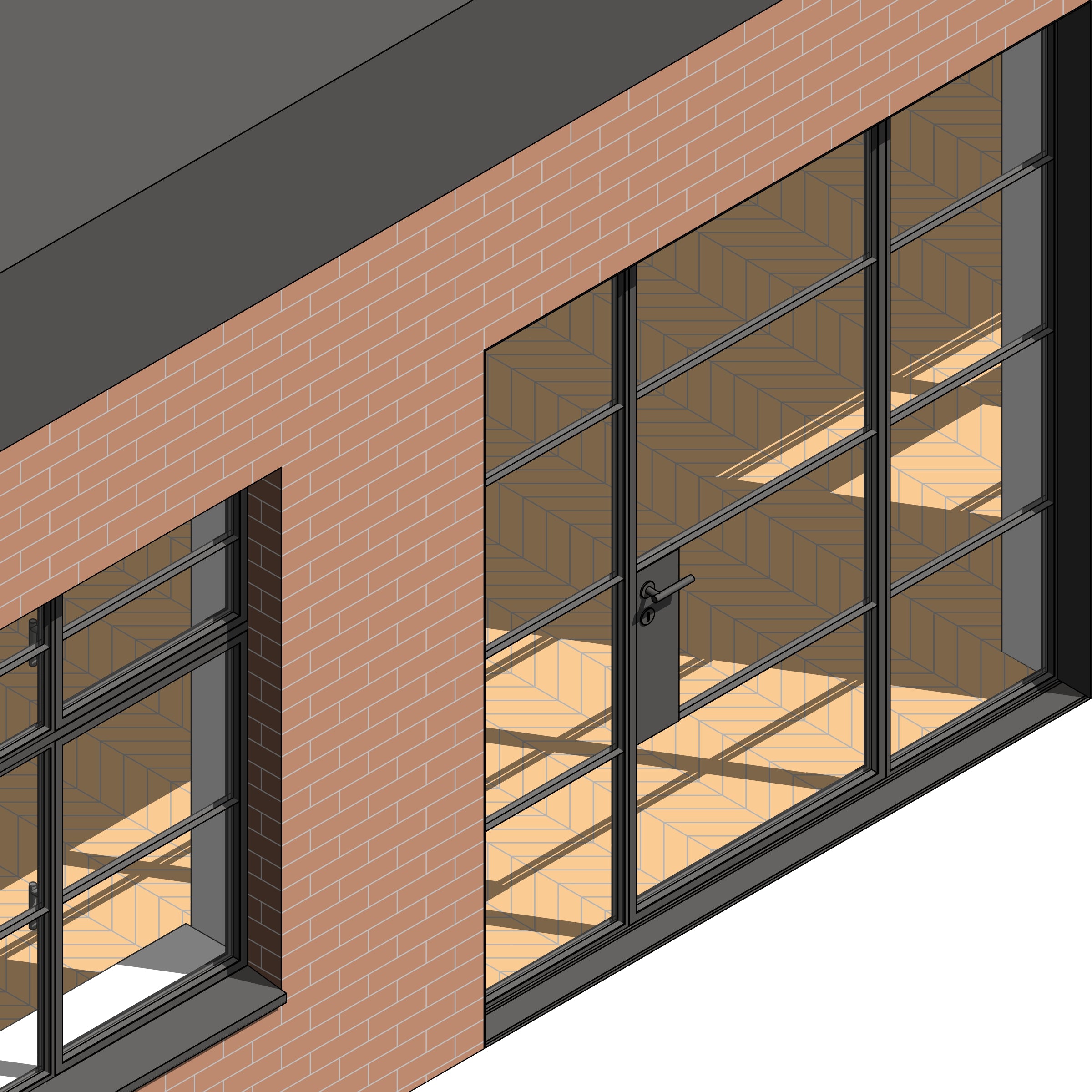

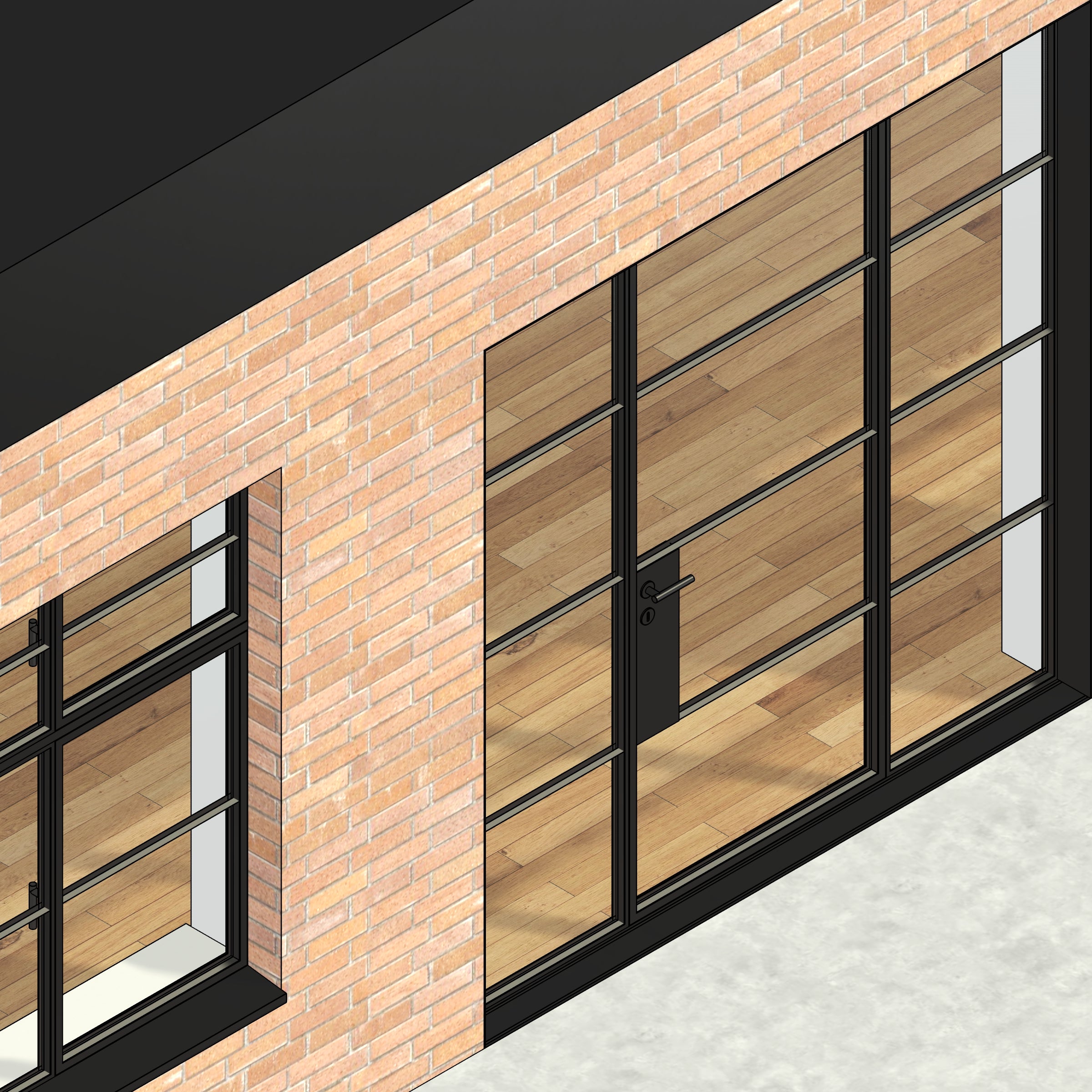

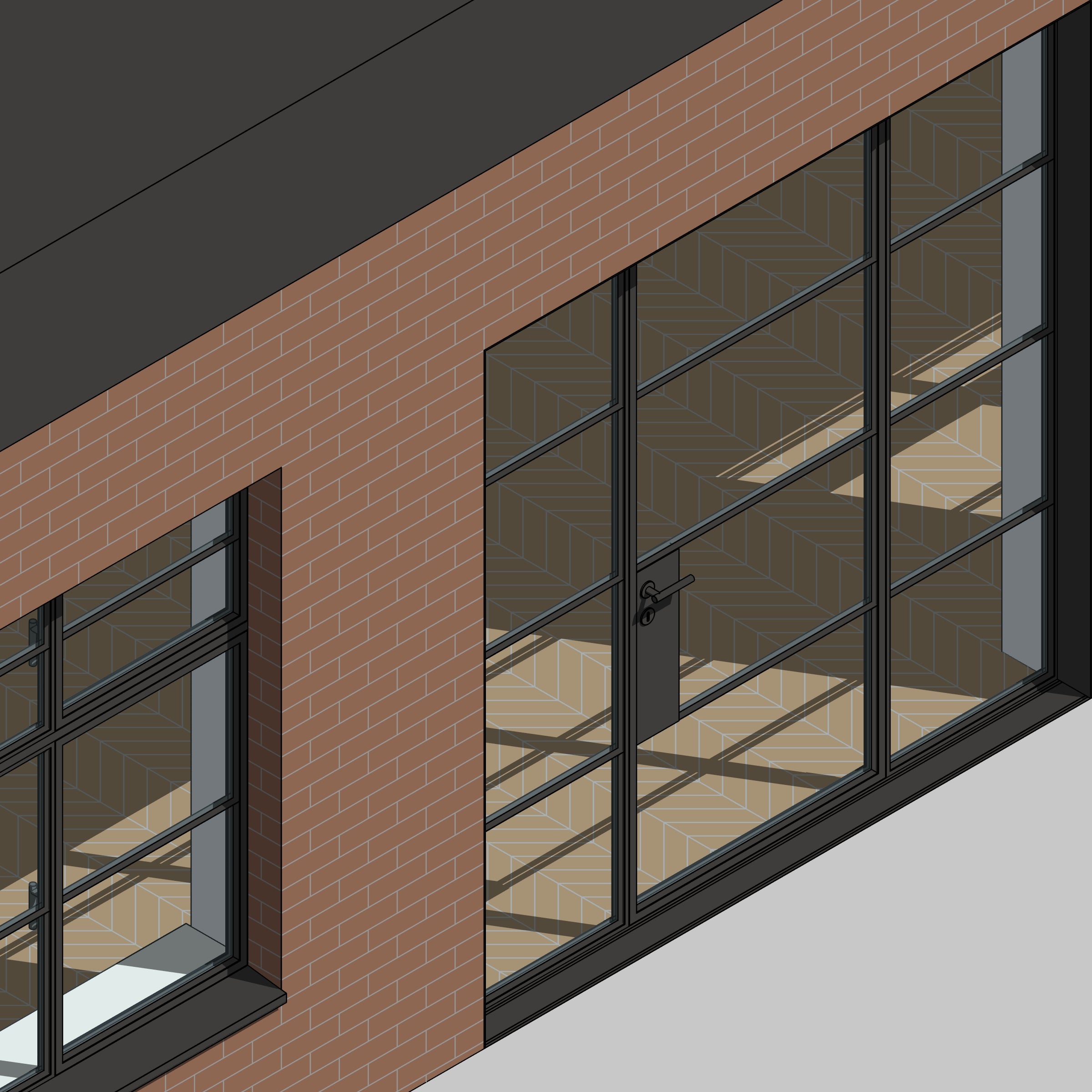

Bring elegance, minimalism, and precision to your Revit projects with this finely crafted collection of Steel Profile Windows and Doors. Designed with heritage inspiration and engineered for modern workflows, this Revit pack provides ultra-slim profiles that maximize daylight and elevate architectural detailing.

This professional collection includes 19 fully parametric Revit families and a total of 37 types of steel windows and doors. All families are compatible with Revit 2022 and above, and include both metric and imperial units.

✅ Key Features

  • 🧩 Dual functionality: Each family includes a predefined type for both Window and Door — switching changes handles, adds exterior sill or drainage (both can be hidden).
  • 🔄 Reverse swing direction: Control the opening swing lines with a single parameter.

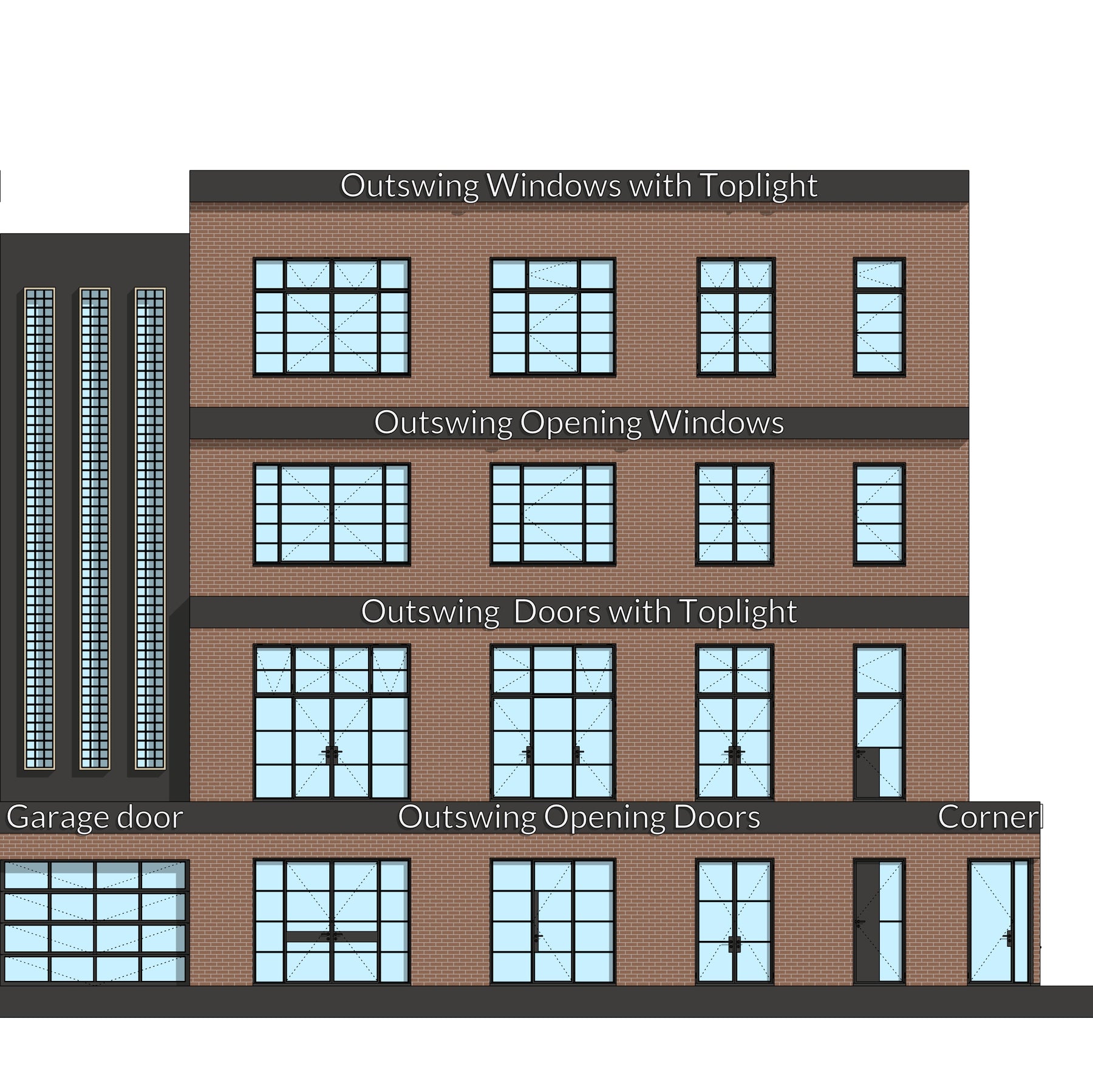

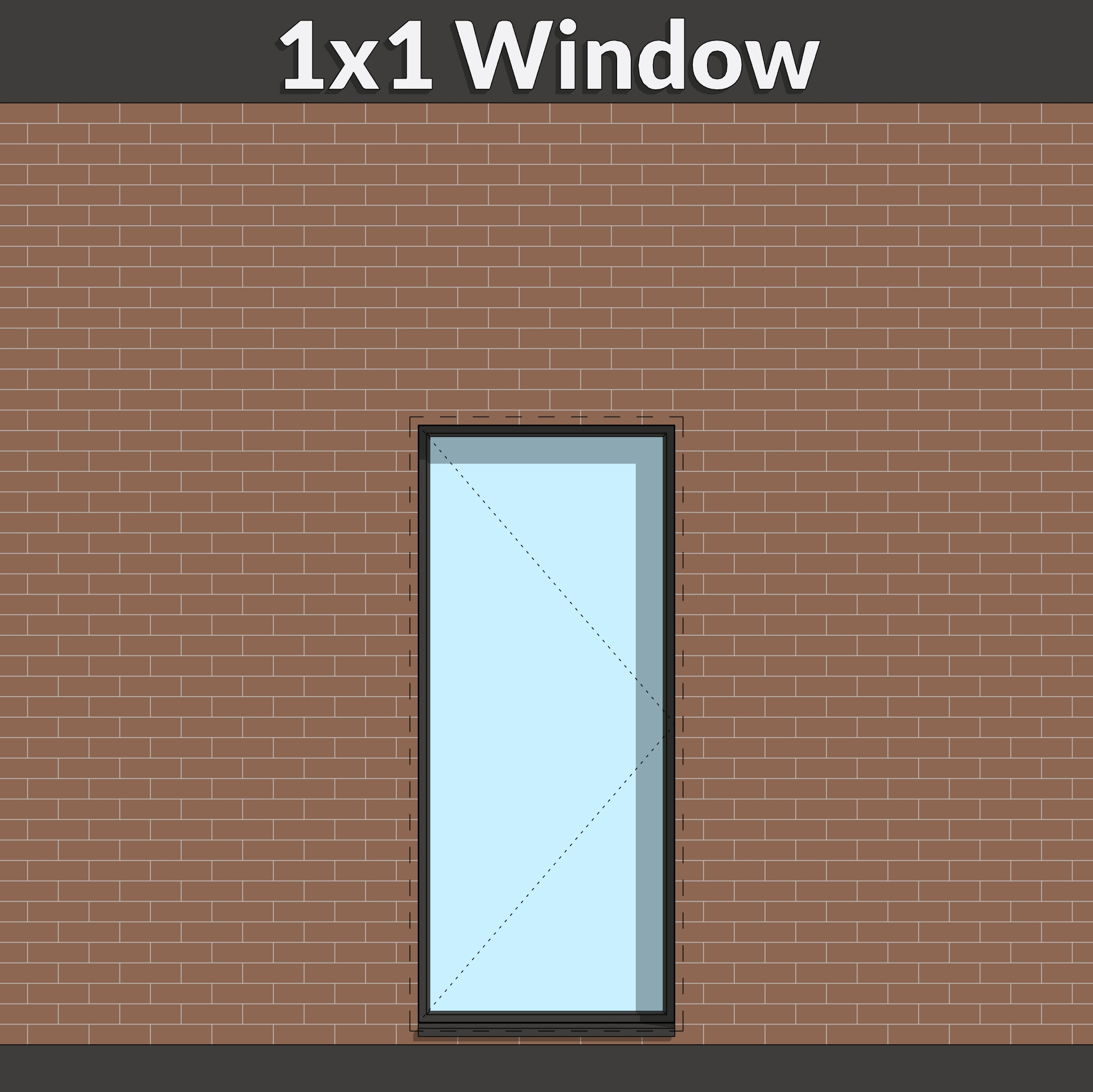

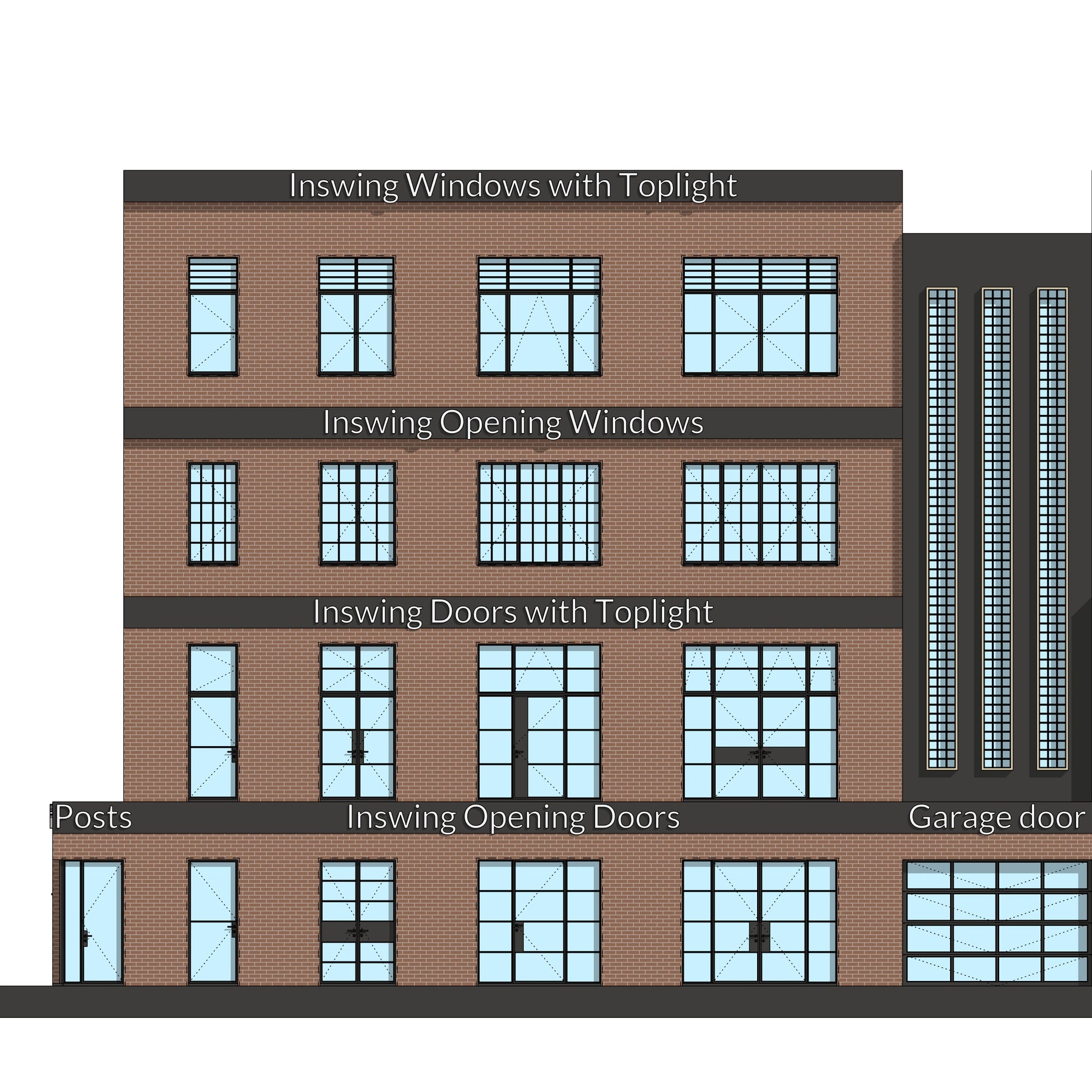

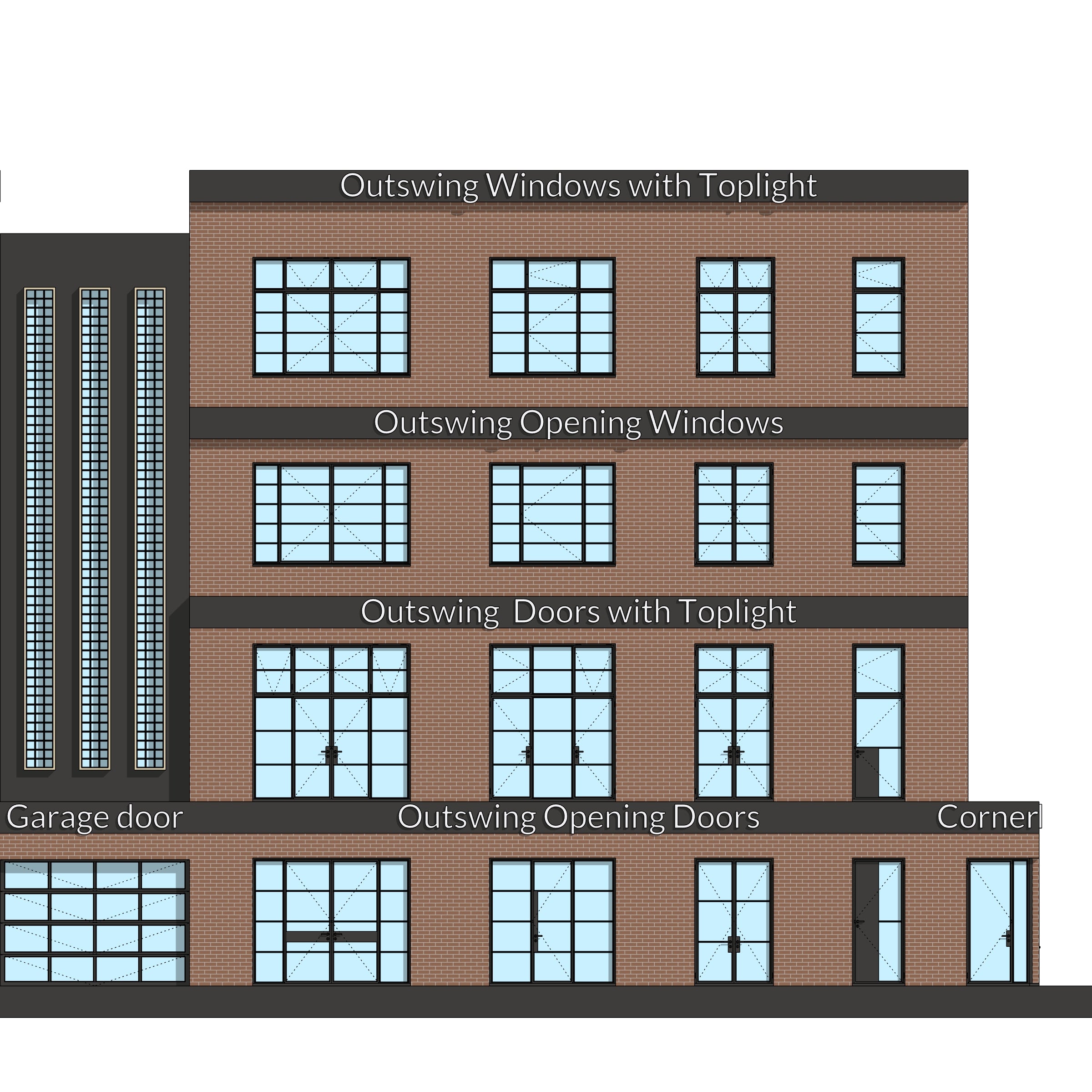

  • ➕ Flexible layouts: Choose from 8 grid combinations — 1x1, 1x2, 2x1, 2x2, 3x1, 3x2, 4x1, 4x2 — each available as Inswing or Outswing.
  • 📐 Adjustable muntins: Set horizontal and vertical divisions per field.

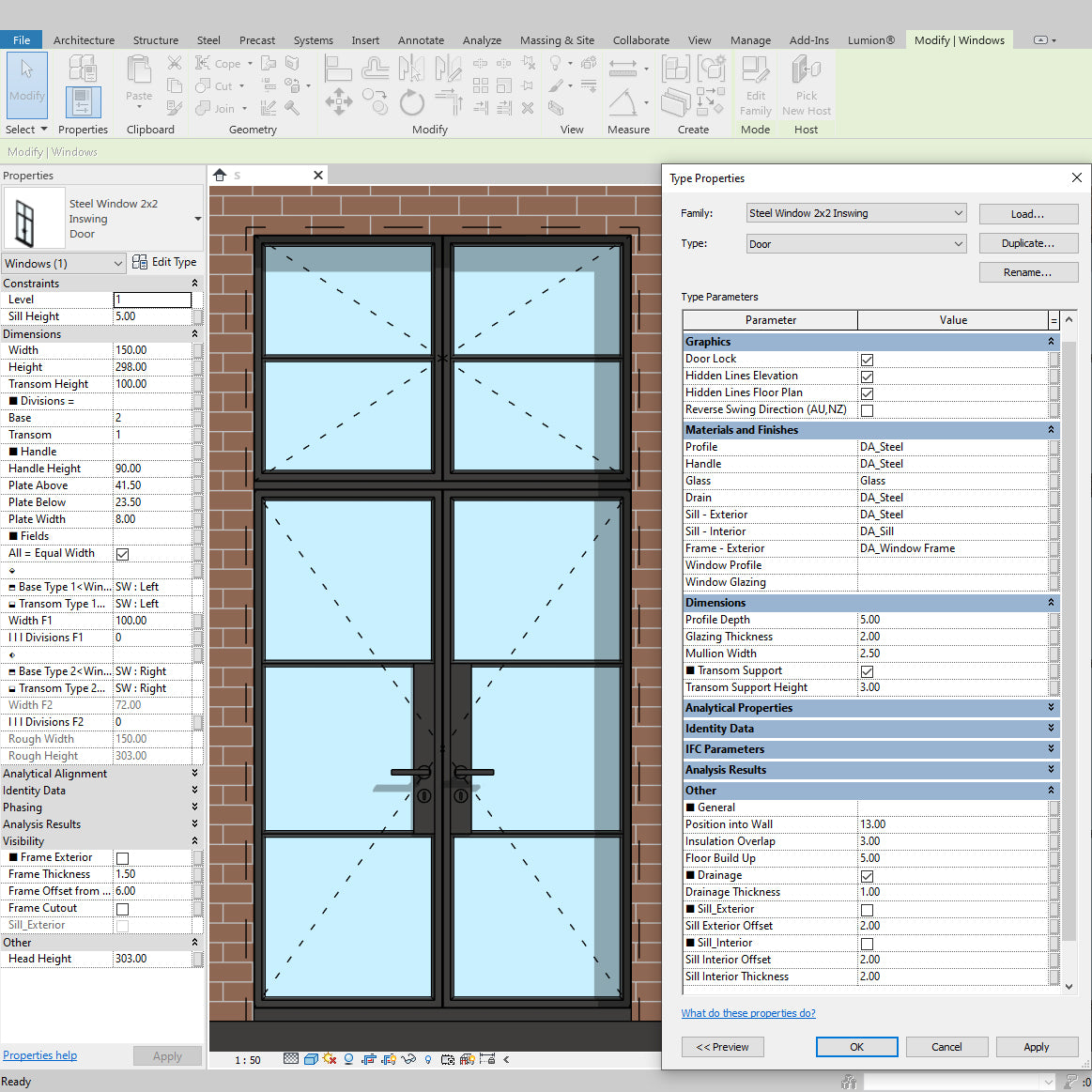

  • 🦾 Parametric handles & frame: Control door handle size and external frame depth with ease.
  • 🧱 Corner posts: Seamlessly model corner conditions with dedicated post families.

🛠️ Technical Specifications

  • ✔️ 100% native Revit families – no plugins or external scripts required.
  • ✔️ All models include material parameters, symbolic lines, and adaptive graphics based on detail level.
  • ✔️ Designed for performance — key features and dimensions are instance-based for fast edits.
  • ✔️ Lightweight, scalable, and standards-compliant — optimized for architectural documentation and visualization.


📦 What’s Inside (Downloads)

  • 🔹 18 Revit Window Families (36 pre-defined types)

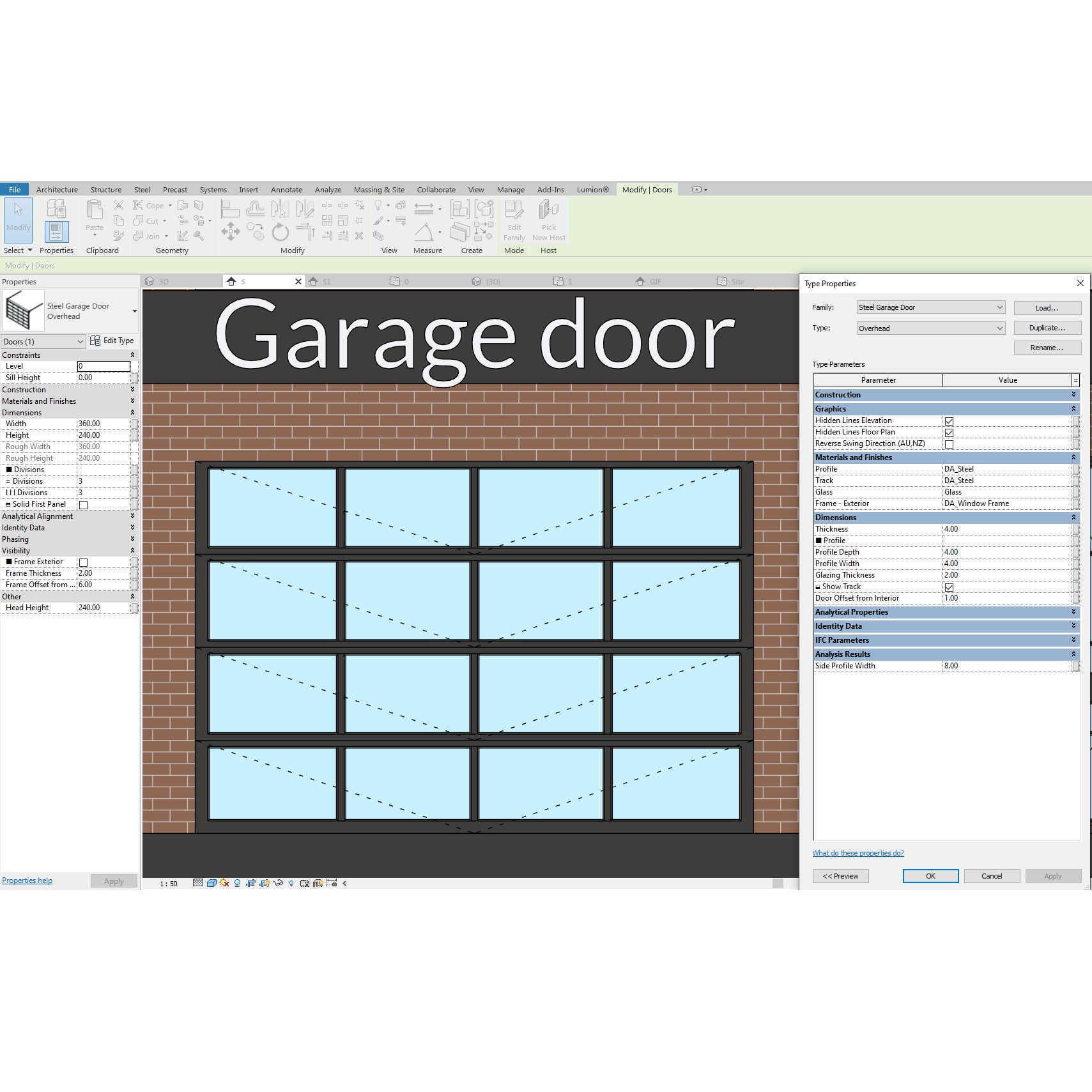

  • 🔹 1 Revit Garage Door Family
  • 🔹 19 total families

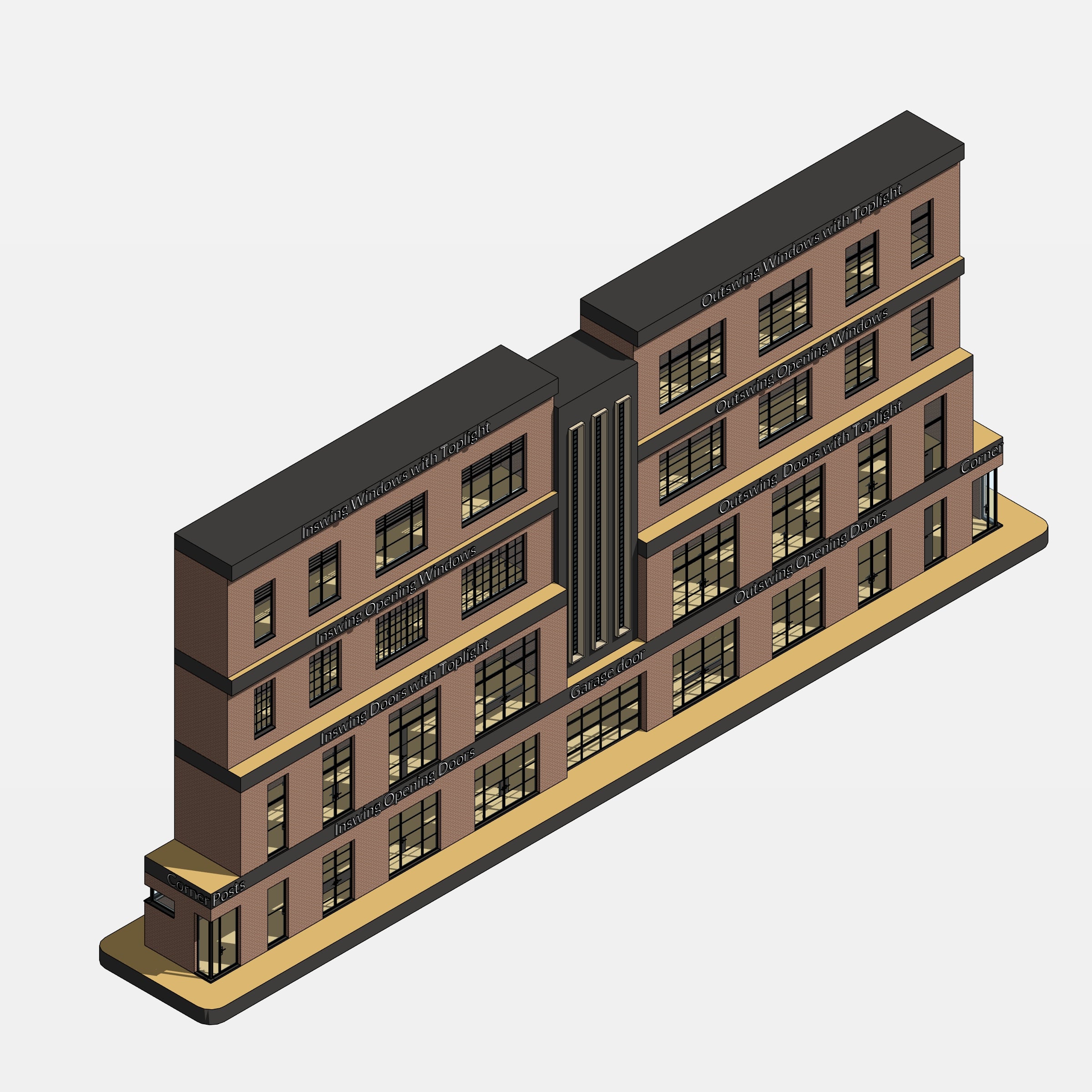

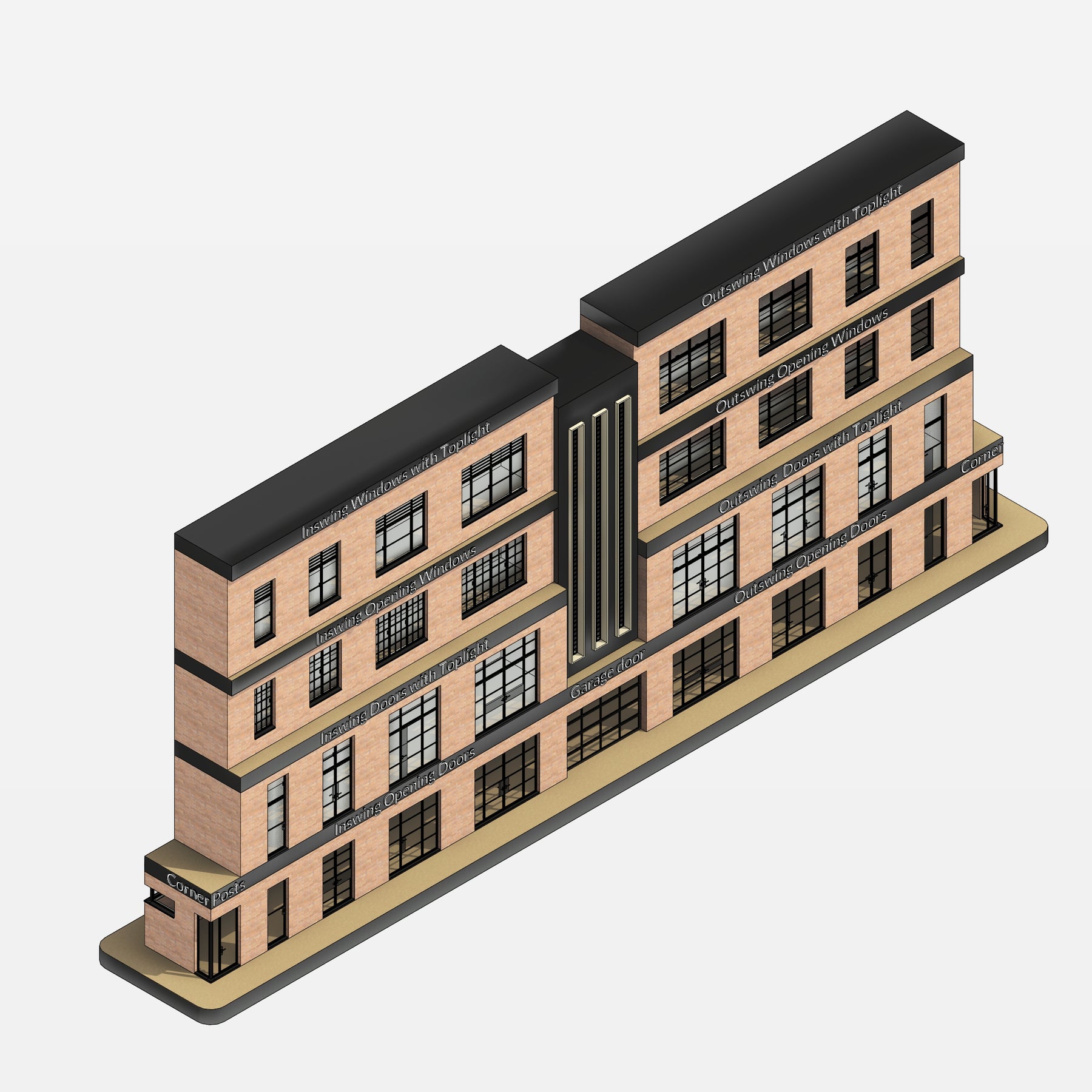

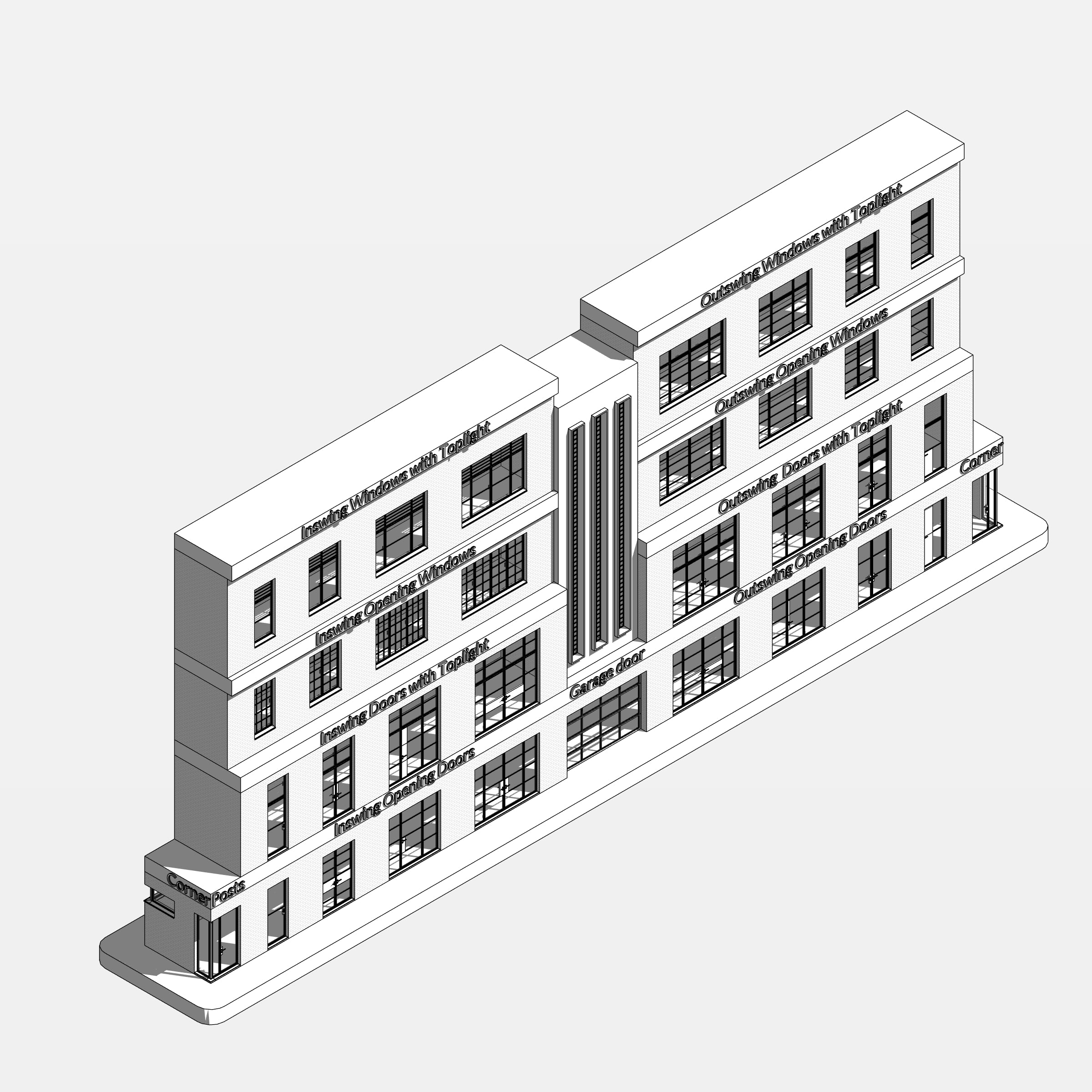

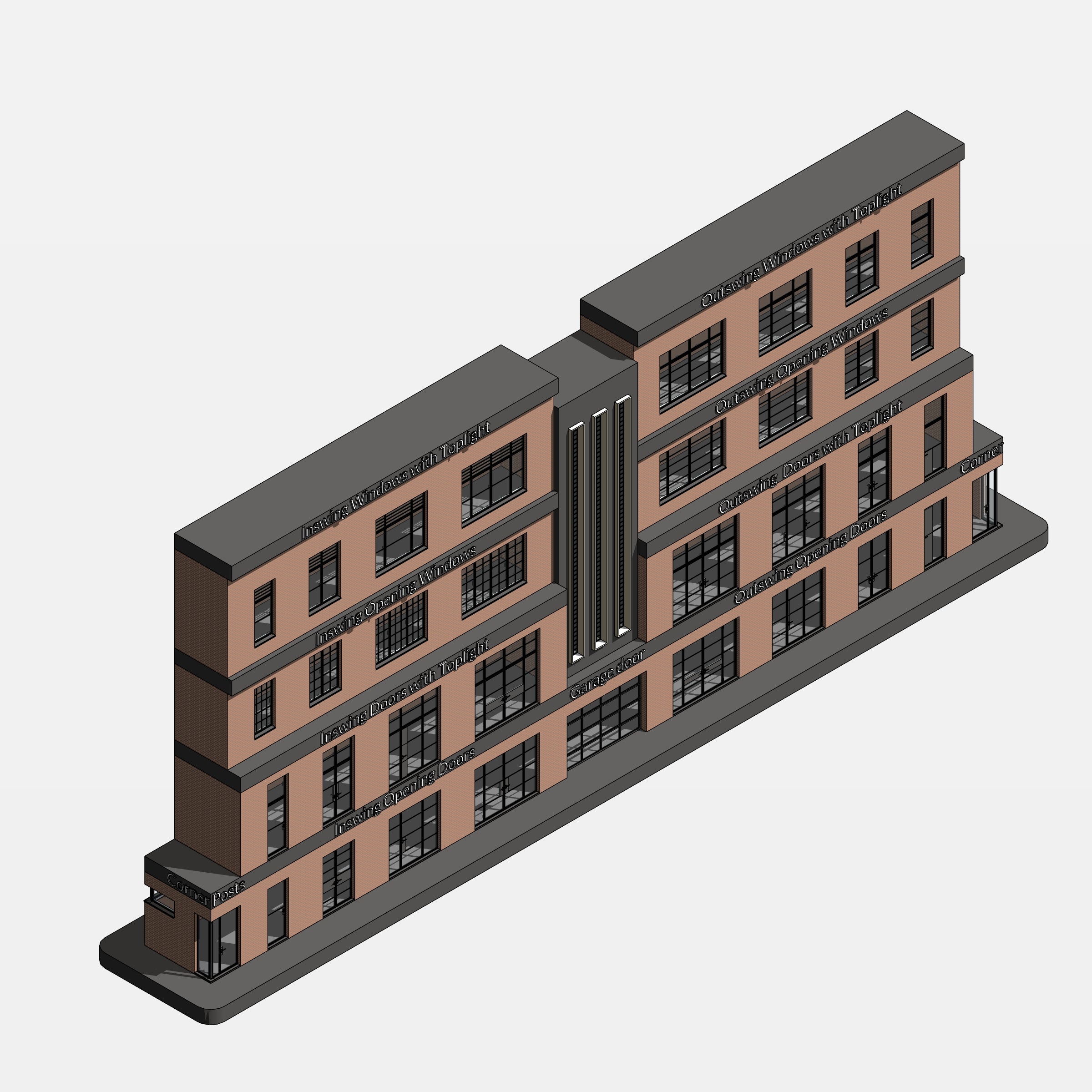

  • 🔹 Showroom Files for Revit 2022+
  • 🔹 "How to Use" PDF Guide
  • 🔹 Metric and Imperial units included

🏗️ Ideal Use Cases

  • Commercial and residential facades
  • Industrial-style interiors
  • Heritage renovation projects
  • Glass houses, studios, and showrooms

📁 File Compatibility

  • Revit 2022 and newer
  • Metric + Imperial
  • Categories: Windows and Doors

Please make sure your Revit version is compatible with the product version

  • Revit Version: 2022
  • The download folder includes 19 Revit Families

Pack Categories:

  • Doors
  • Window

Units System:

  • Metric
  • Imperial

Bulgarian-based architect and co-founder of Dare|Architects, who is in constant search for improvement in terms of design and functionality.
