Revit Parking Families - AU Standard

Streamline your site planning and civil layouts with the Revit Ultimate Parking Spaces Pack - Australian Standard. Engineered specifically to comply with Australian Standards, this comprehensive collection of parking families takes the guesswork out of designing car parks, commercial lots, and residential parking zones.

Design with confidence using highly adaptable, code-compliant assets. Whether you are laying out standard bays, accessible parking with shared zones, or EV charging stations, these fully parametric families provide the perfect balance between accurate site representation and technical precision.

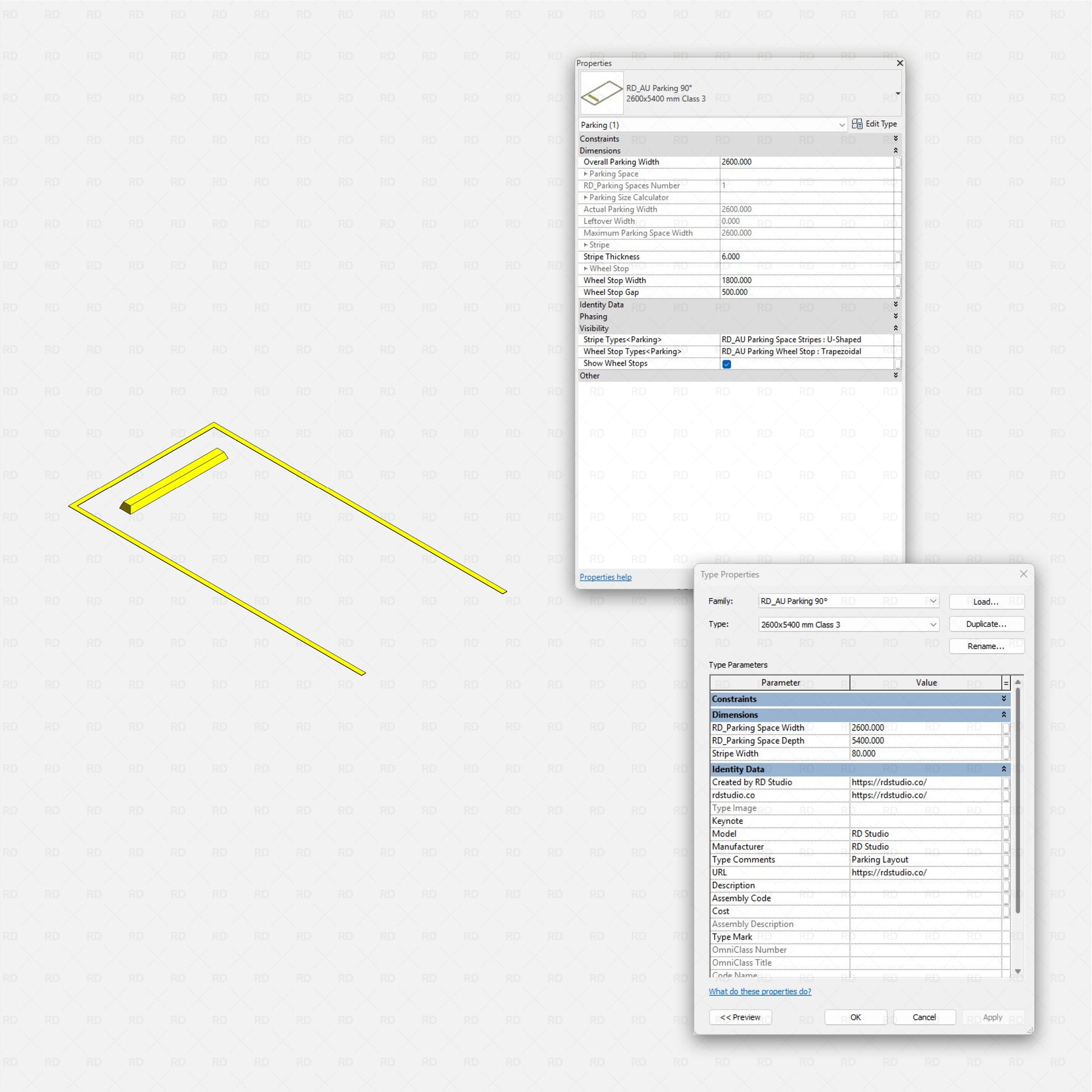

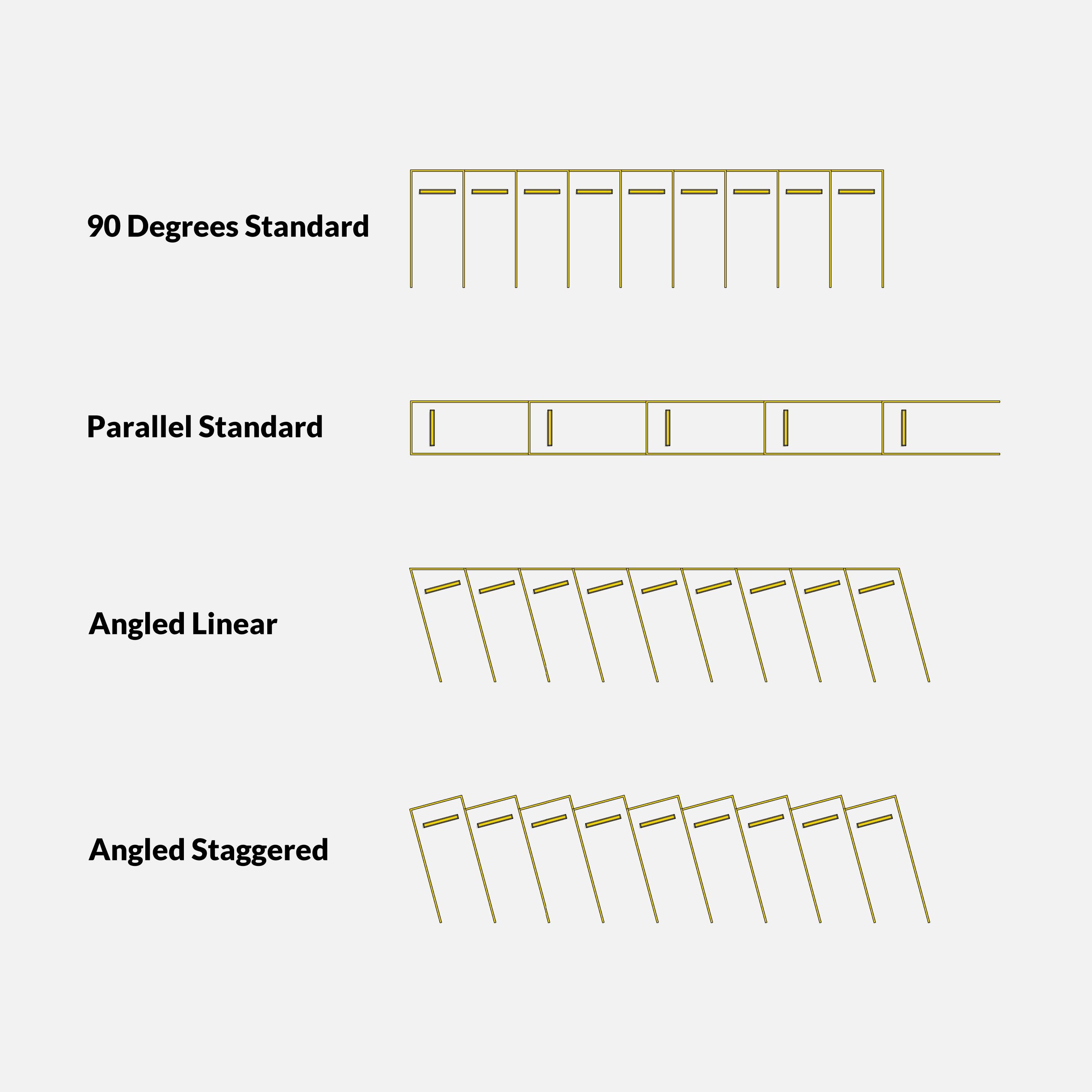

Fully Parametric Parking System

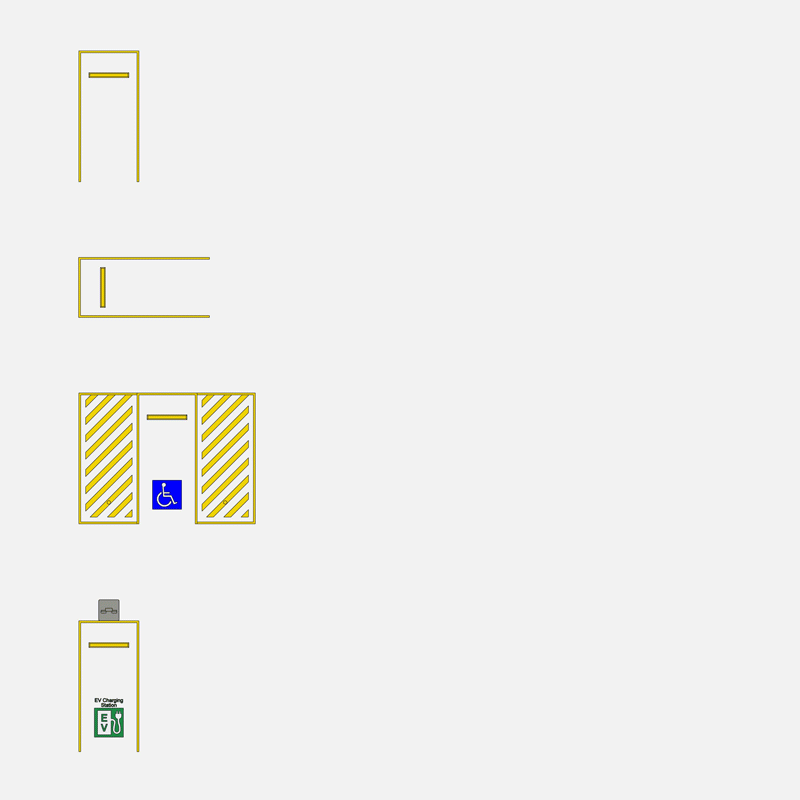

Effortlessly generate entire parking rows by simply dragging the family grips along your site boundary. As you stretch the model, the family instantly calculates and populates the exact number of compliant bays needed to fill the space. This eliminates tedious manual copying, allowing you to lay out massive commercial lots in seconds while guaranteeing perfectly accurate alignments without ever having to do the math yourself.

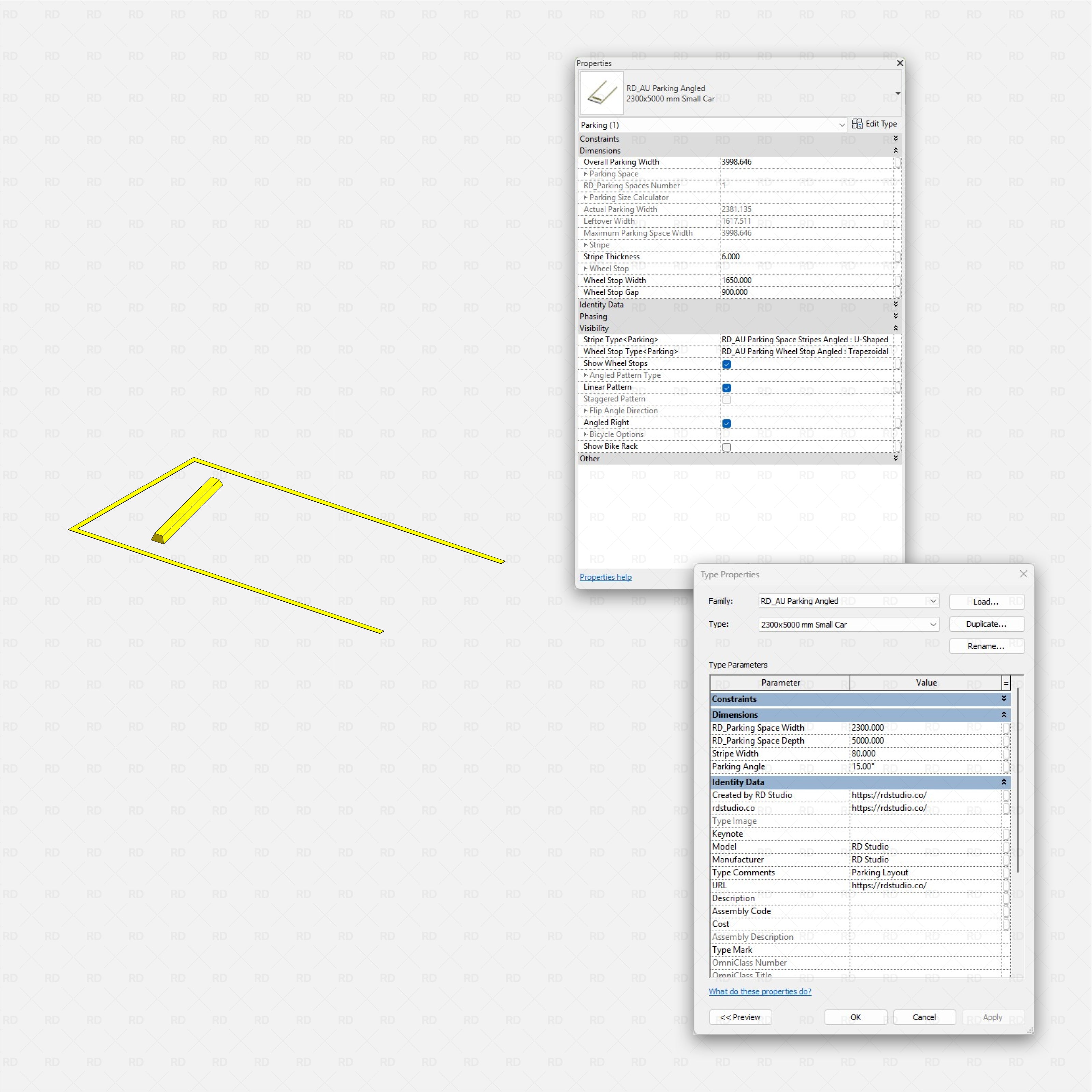

Adaptable Angled Parking

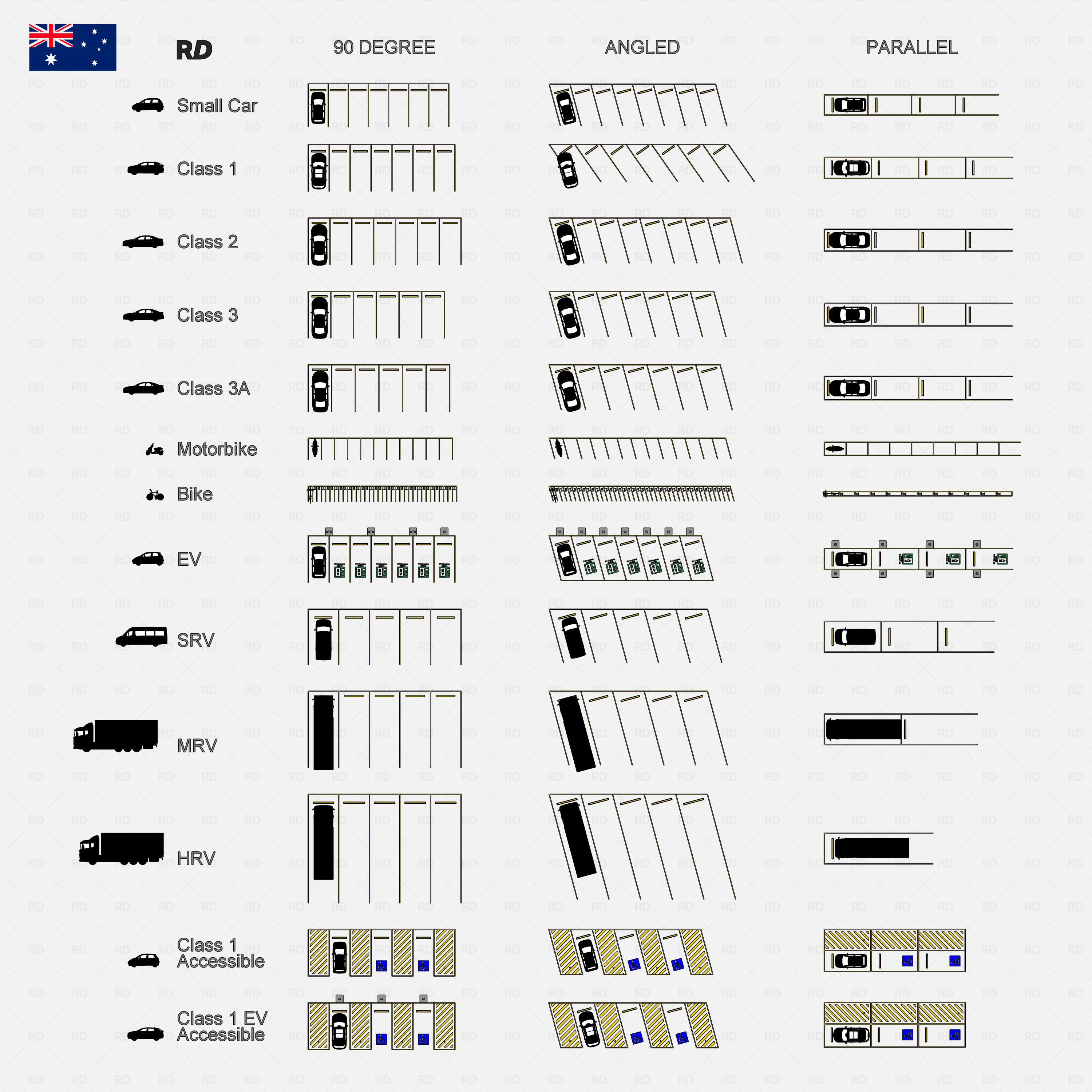

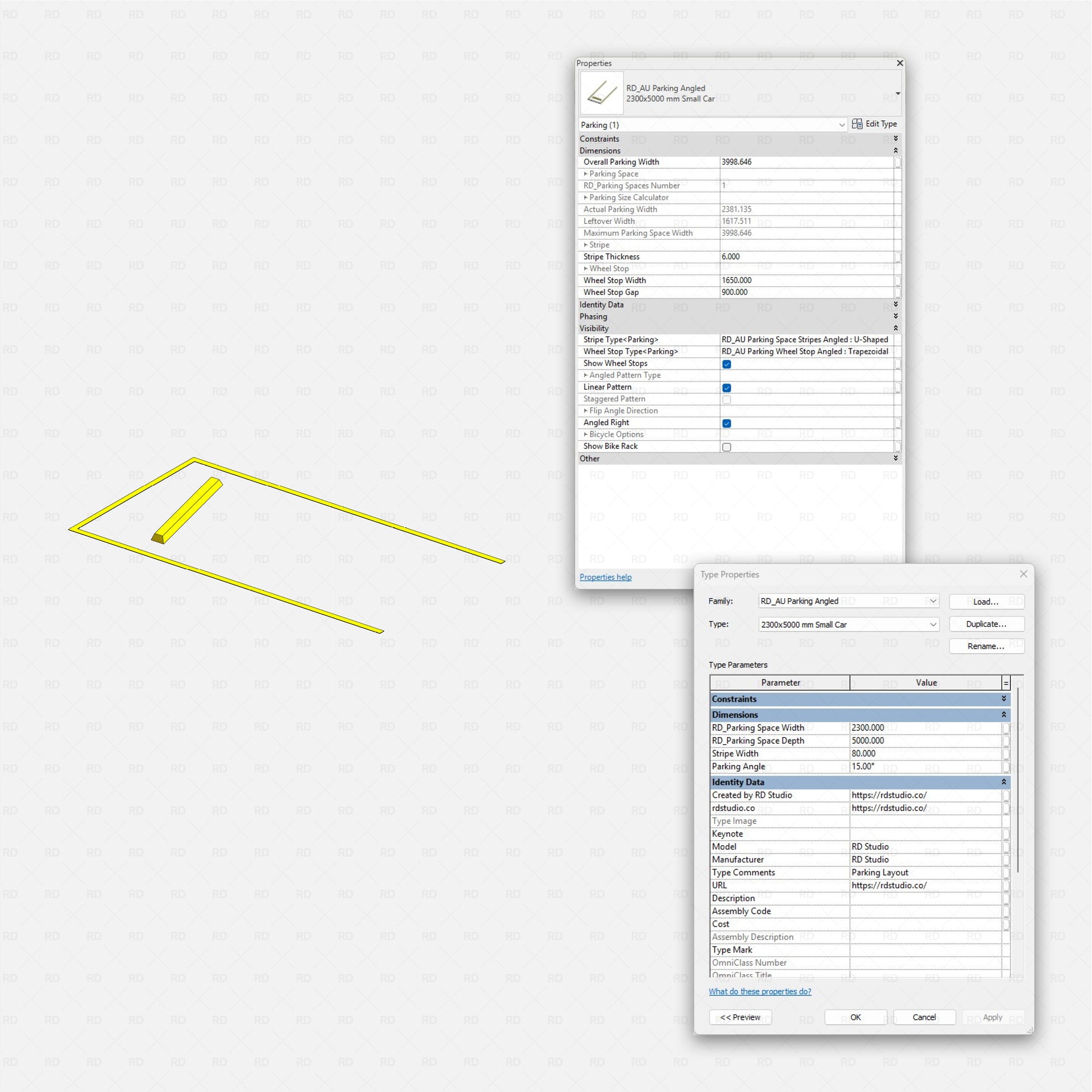

Not all lots rely on standard 90-degree stalls. With these fully parametric families, you can instantly adjust your parking angles to suit complex site boundaries. Whether you need 45°, 60°, or a completely custom angle to maximize lot capacity, the intelligent layout automatically recalculates bay dimensions and line alignments to seamlessly fit your site's unique geometry.

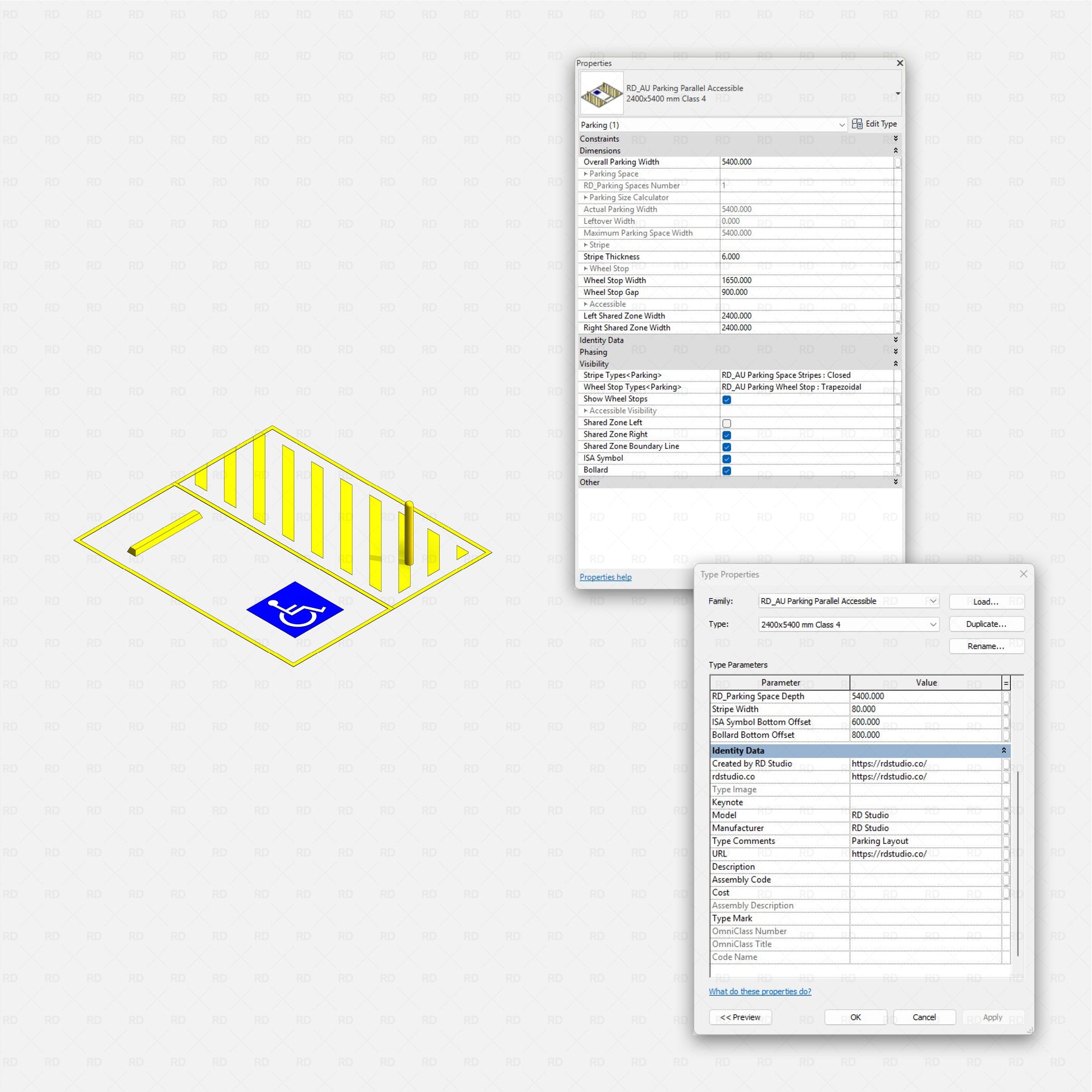

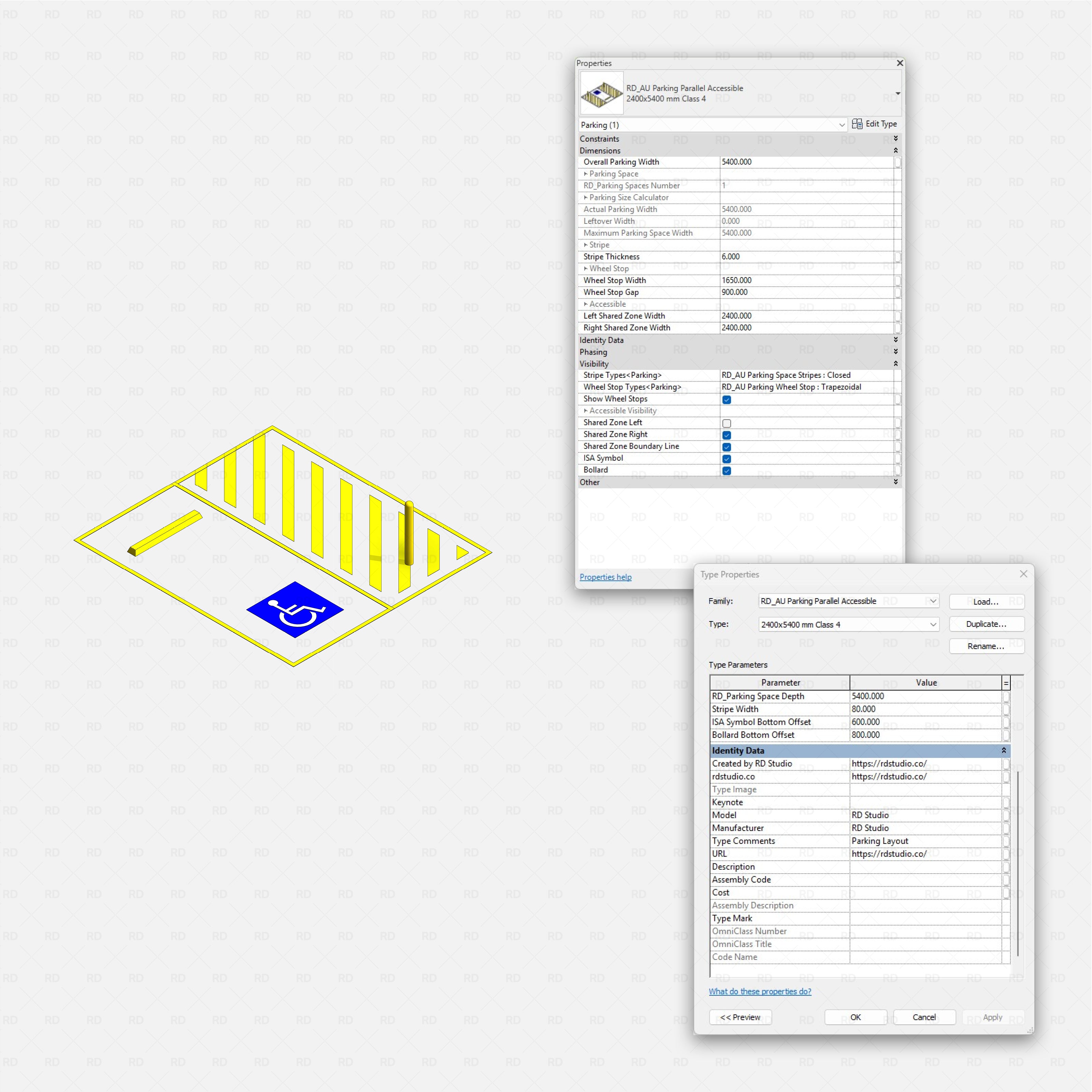

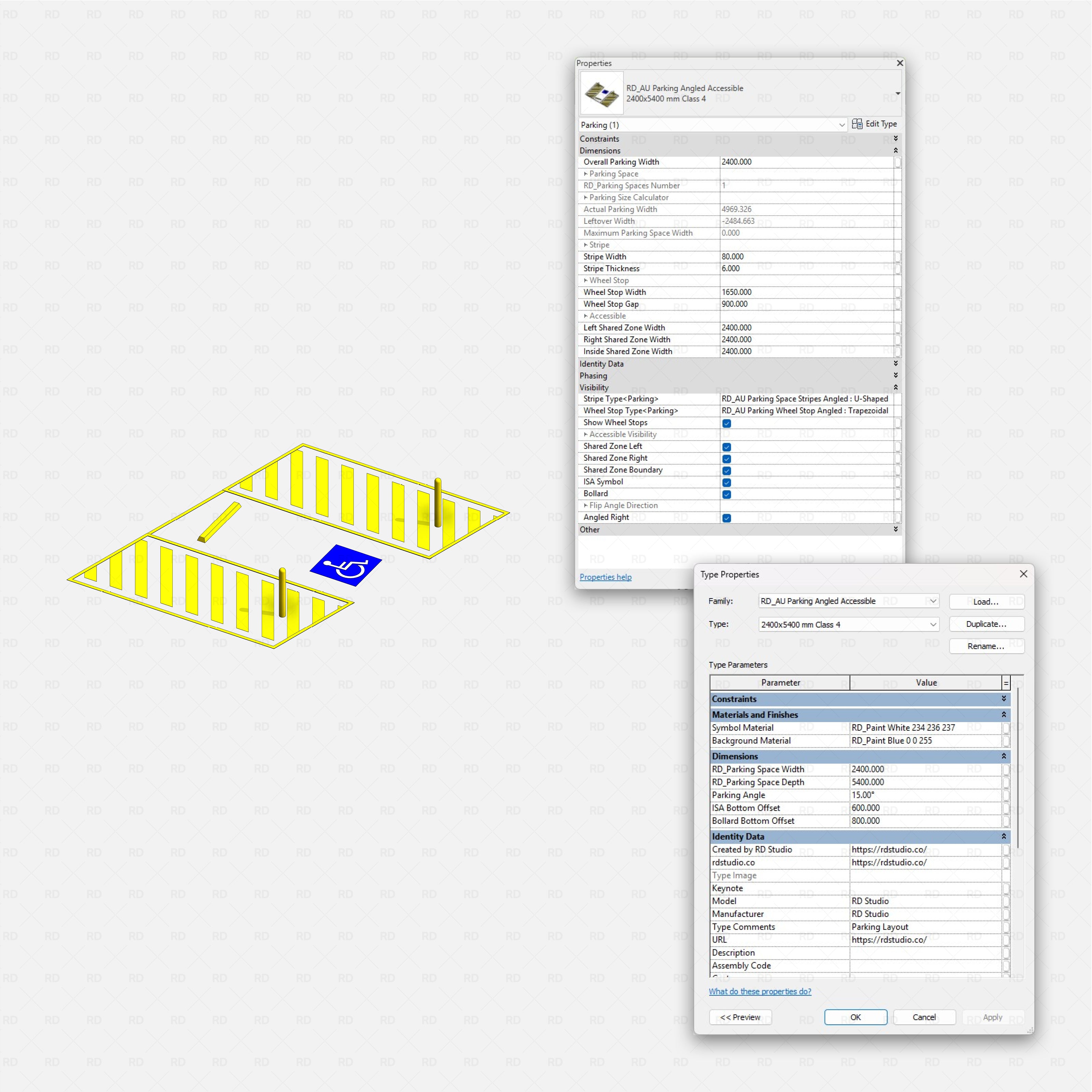

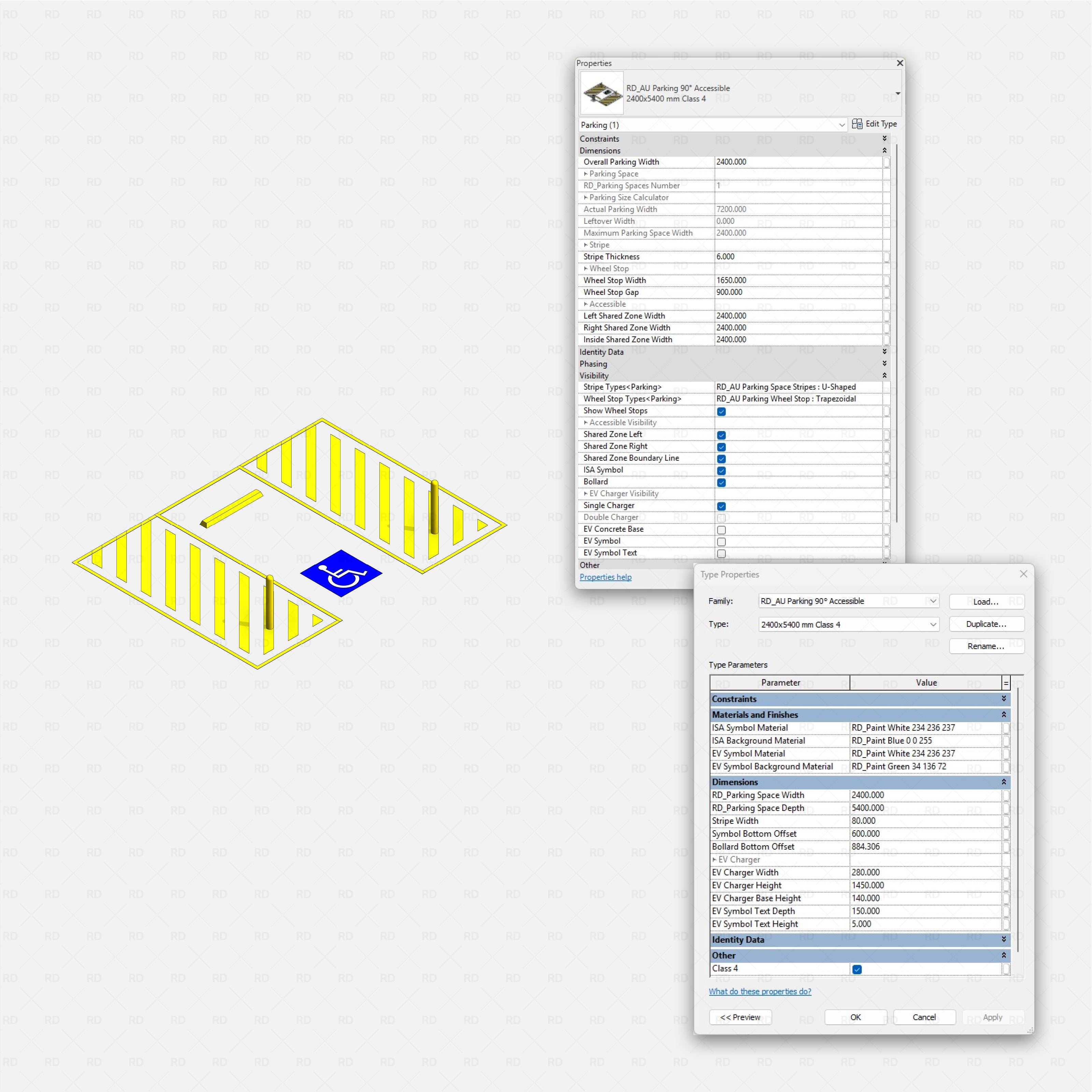

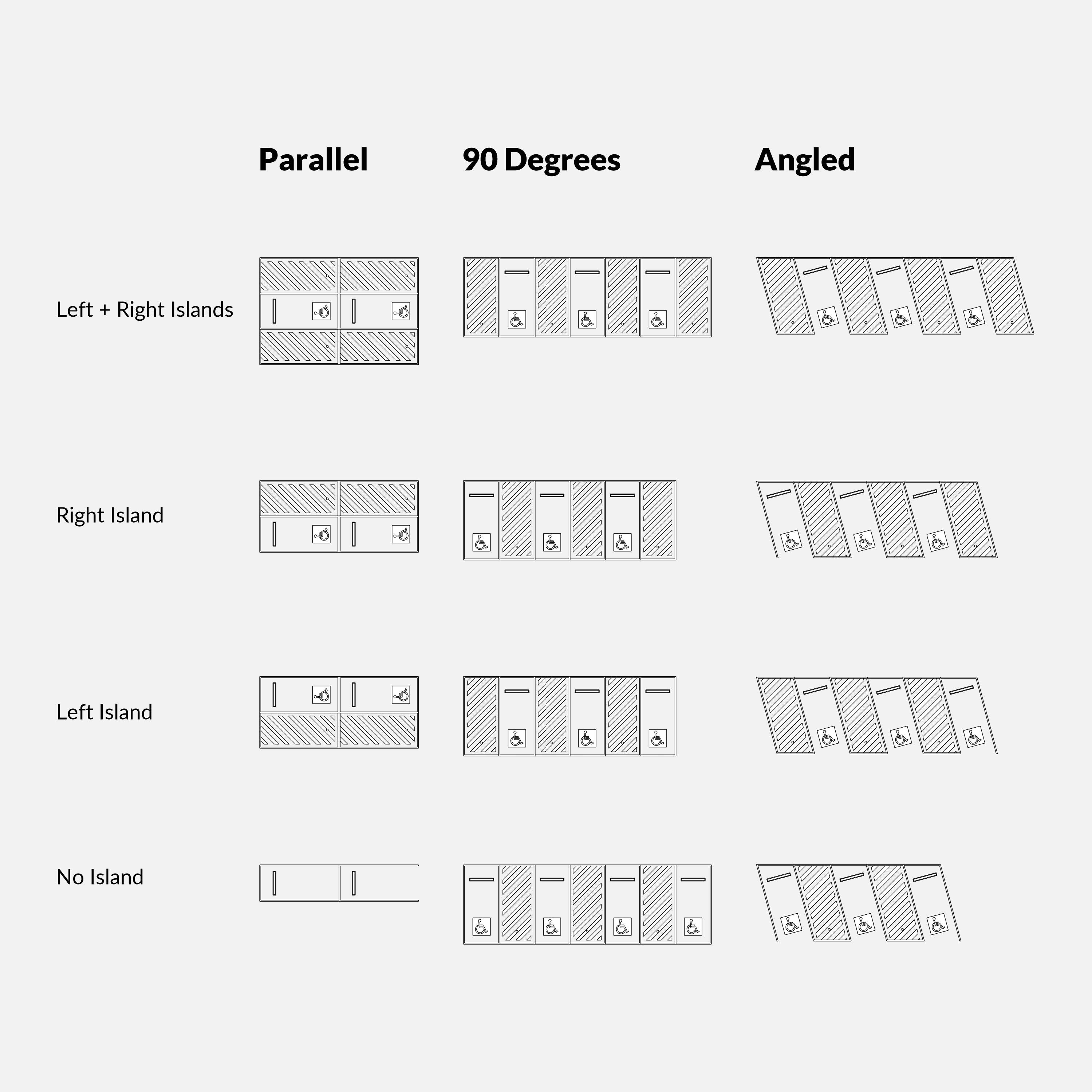

Accessible Parking Options

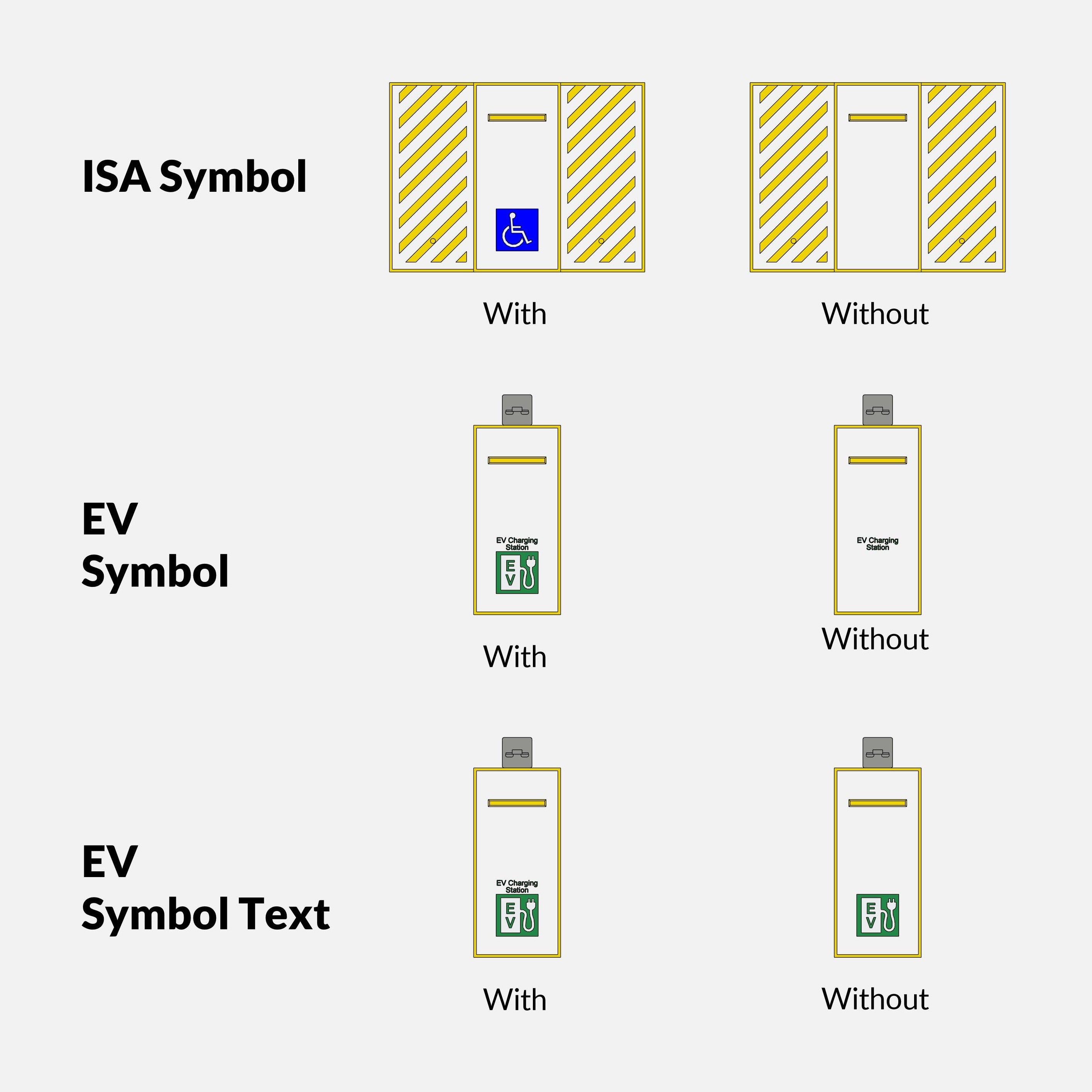

Ensure strict compliance with built-in, AS 2890-compliant accessible parking layouts. These specialized families make it easy to seamlessly integrate proper bay widths, mandatory shared zones, and standard symbols directly into your site design, guaranteeing your project meets Australian accessibility requirements with zero guesswork.

Code-Ready Accessible Parking

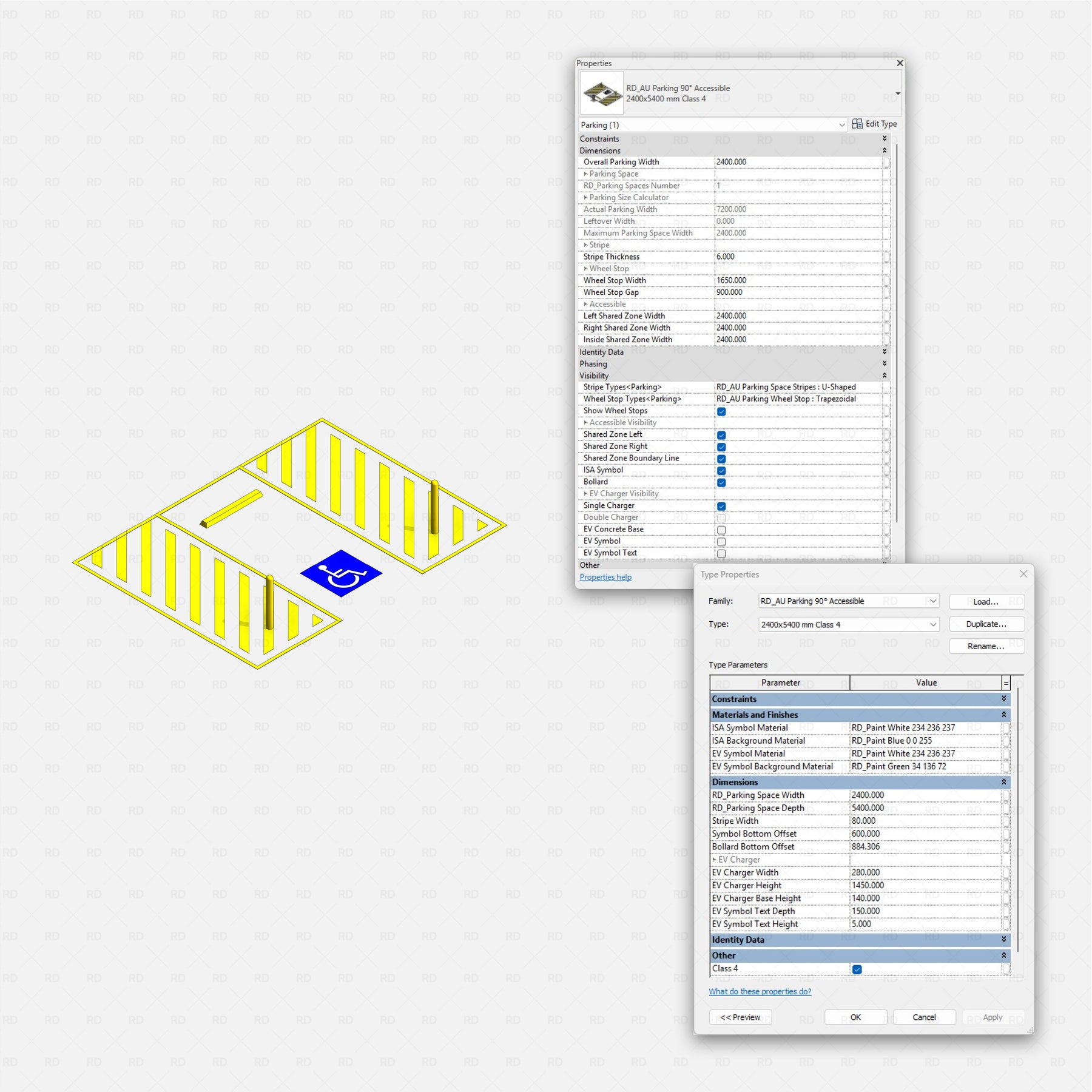

Easily configure dedicated accessible parking spaces with just a few clicks. Quickly integrate AS 2890-compliant layouts, complete with accurate spacing, proper clearances, and standard shared zone markings to ensure your site plans are safe and strictly code-ready.

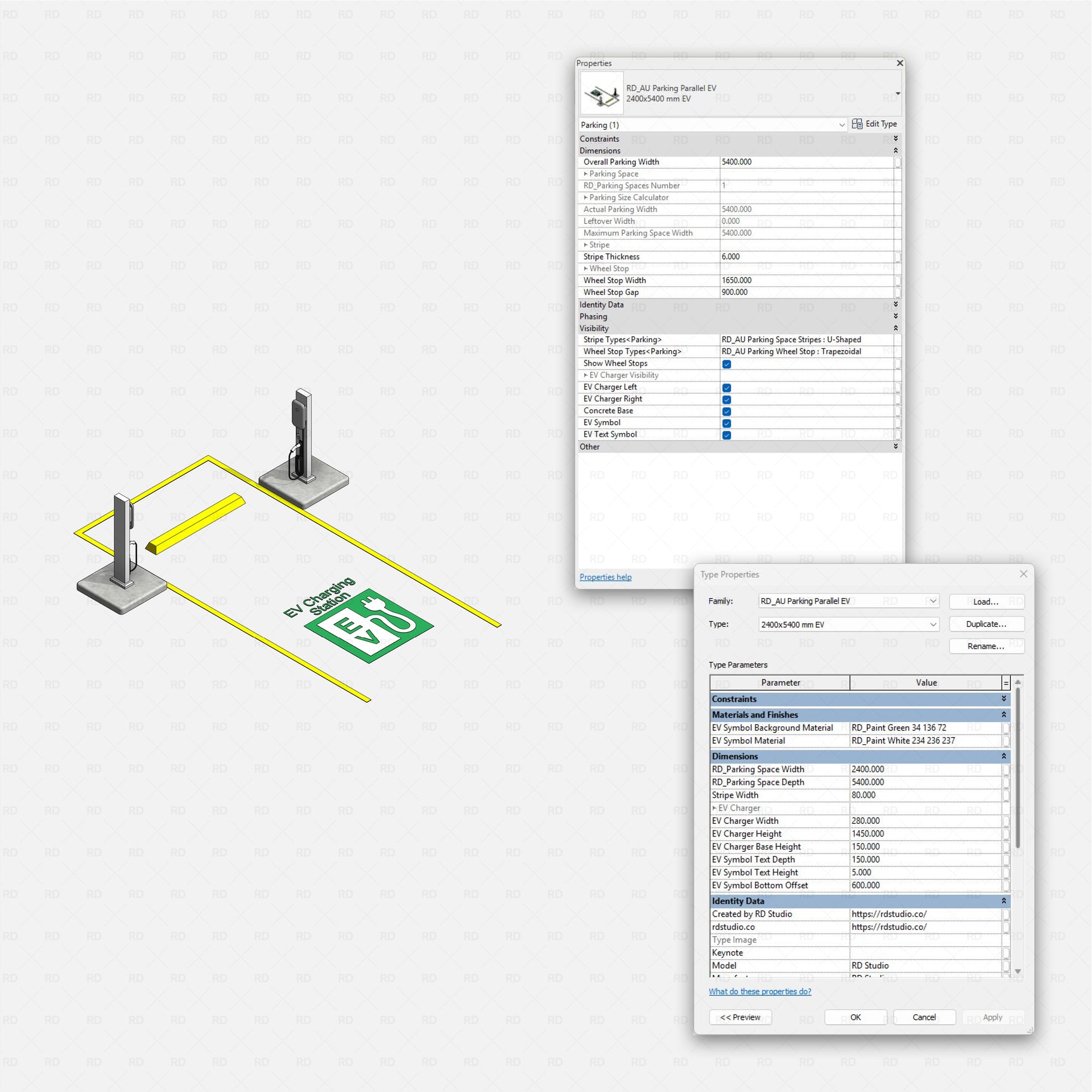

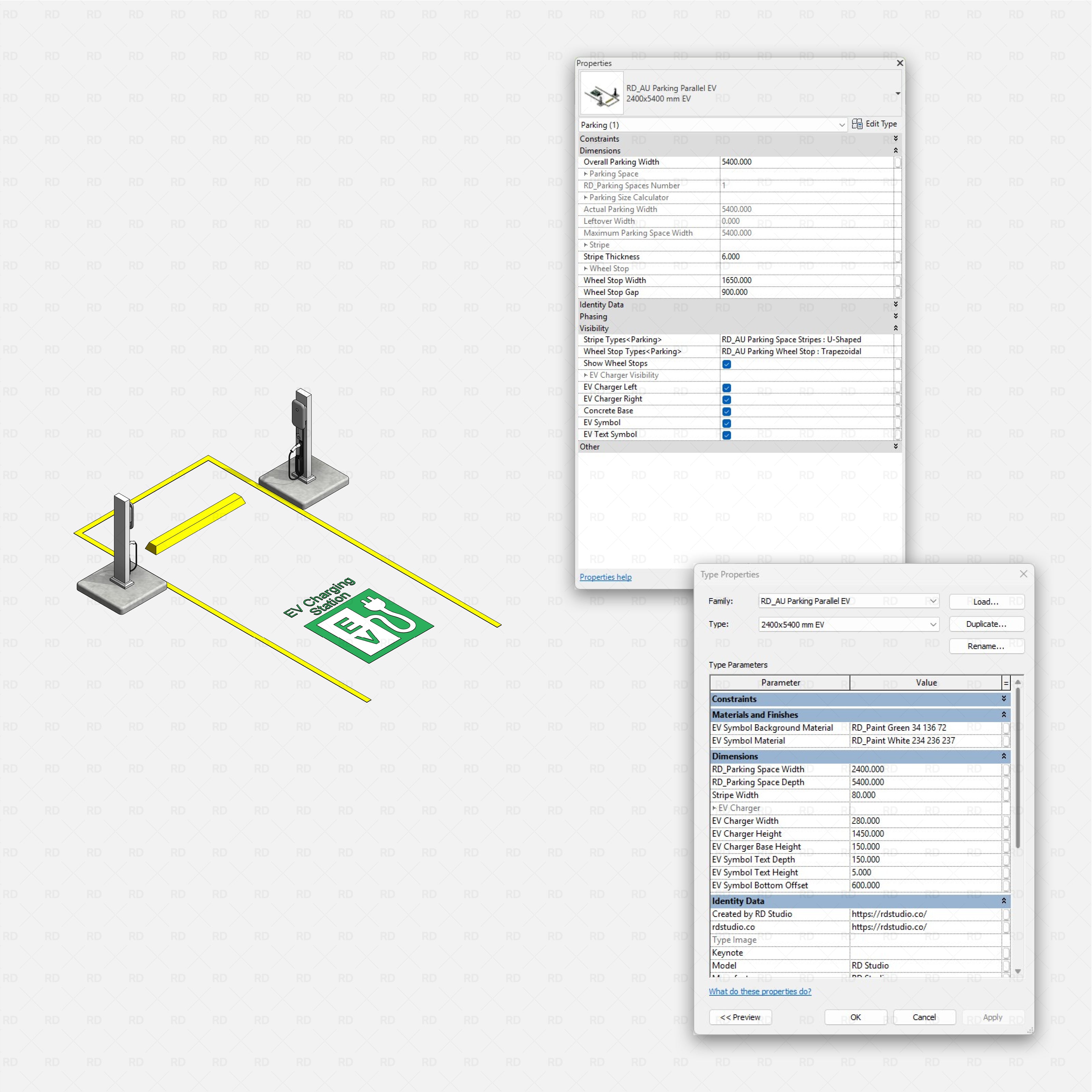

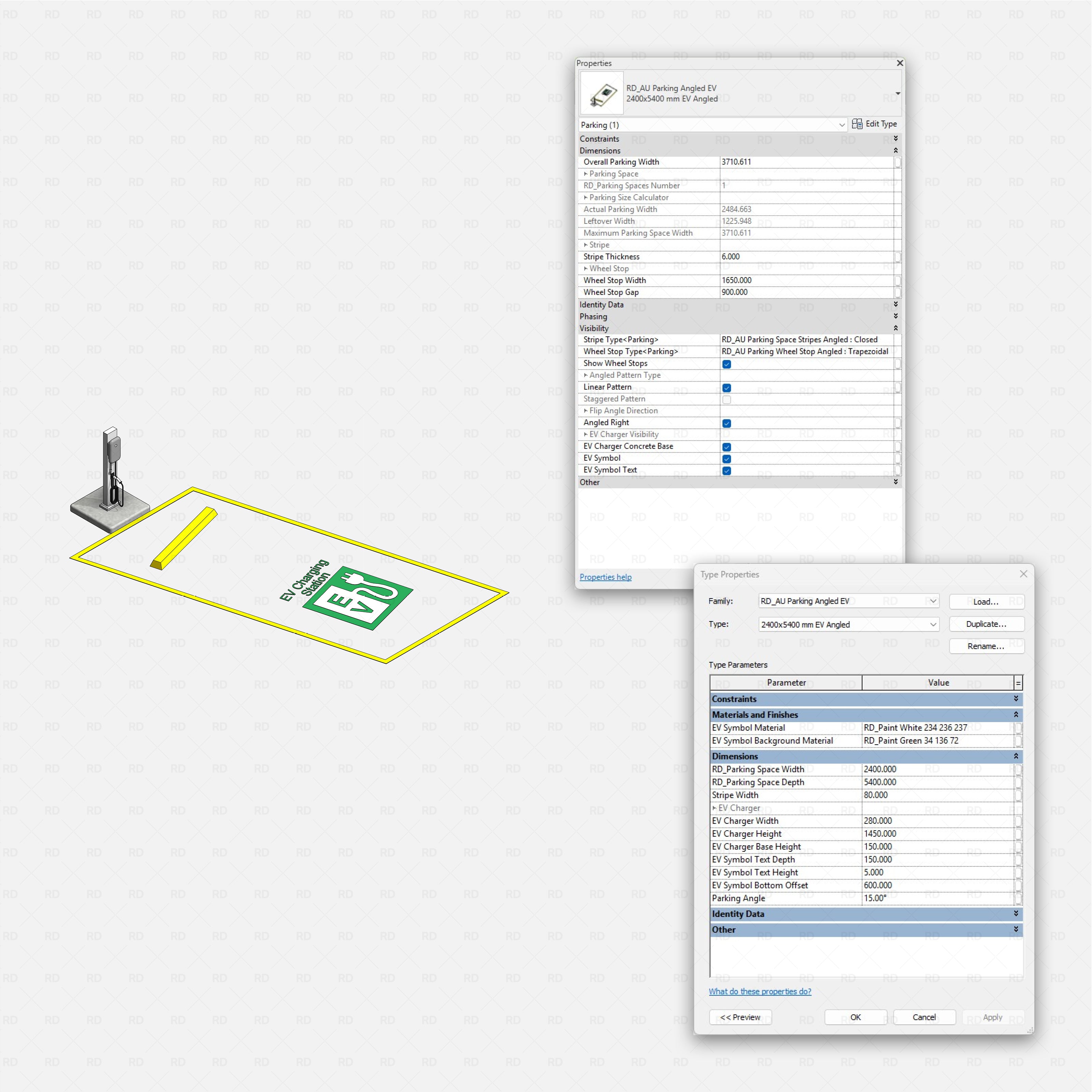

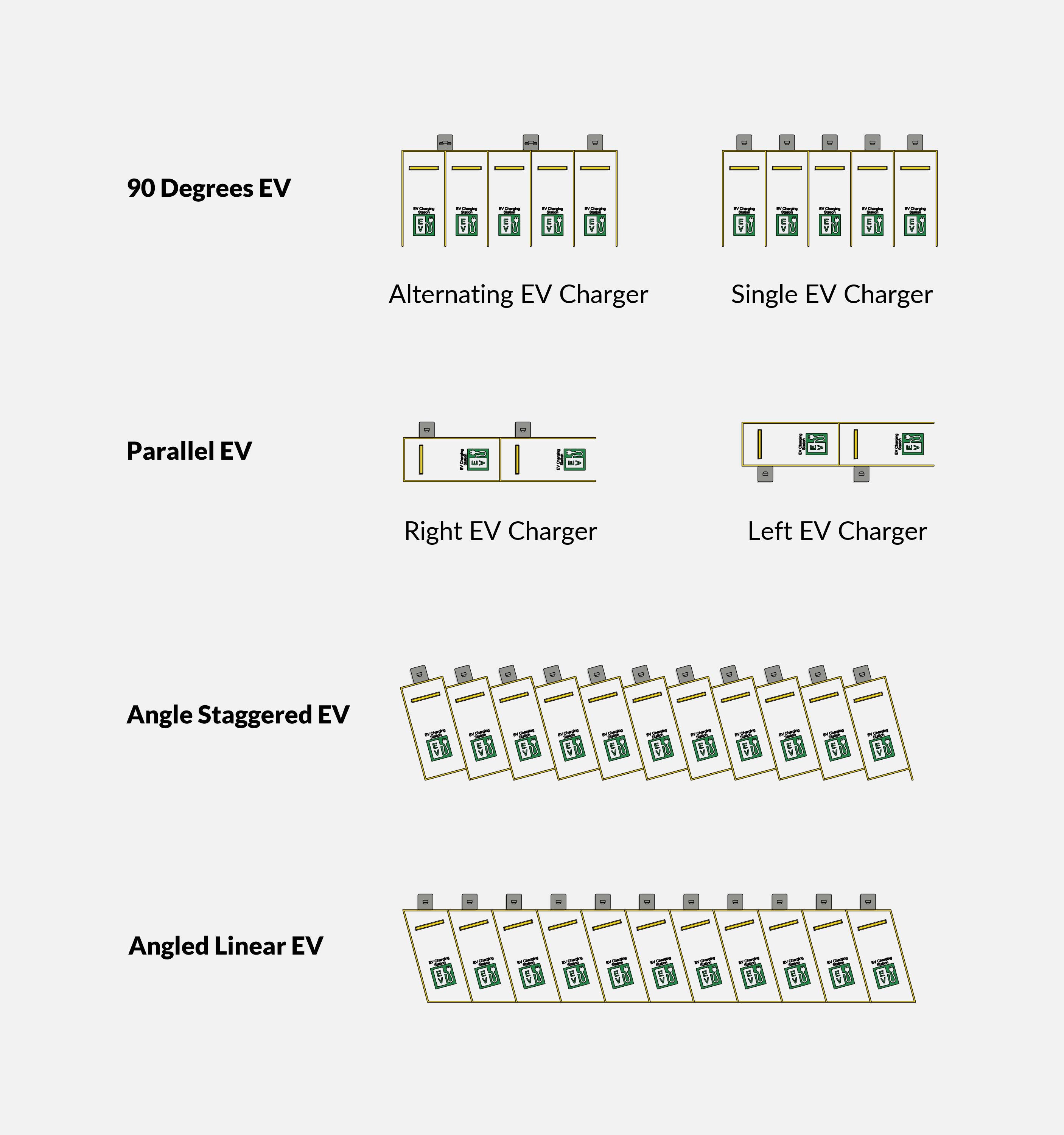

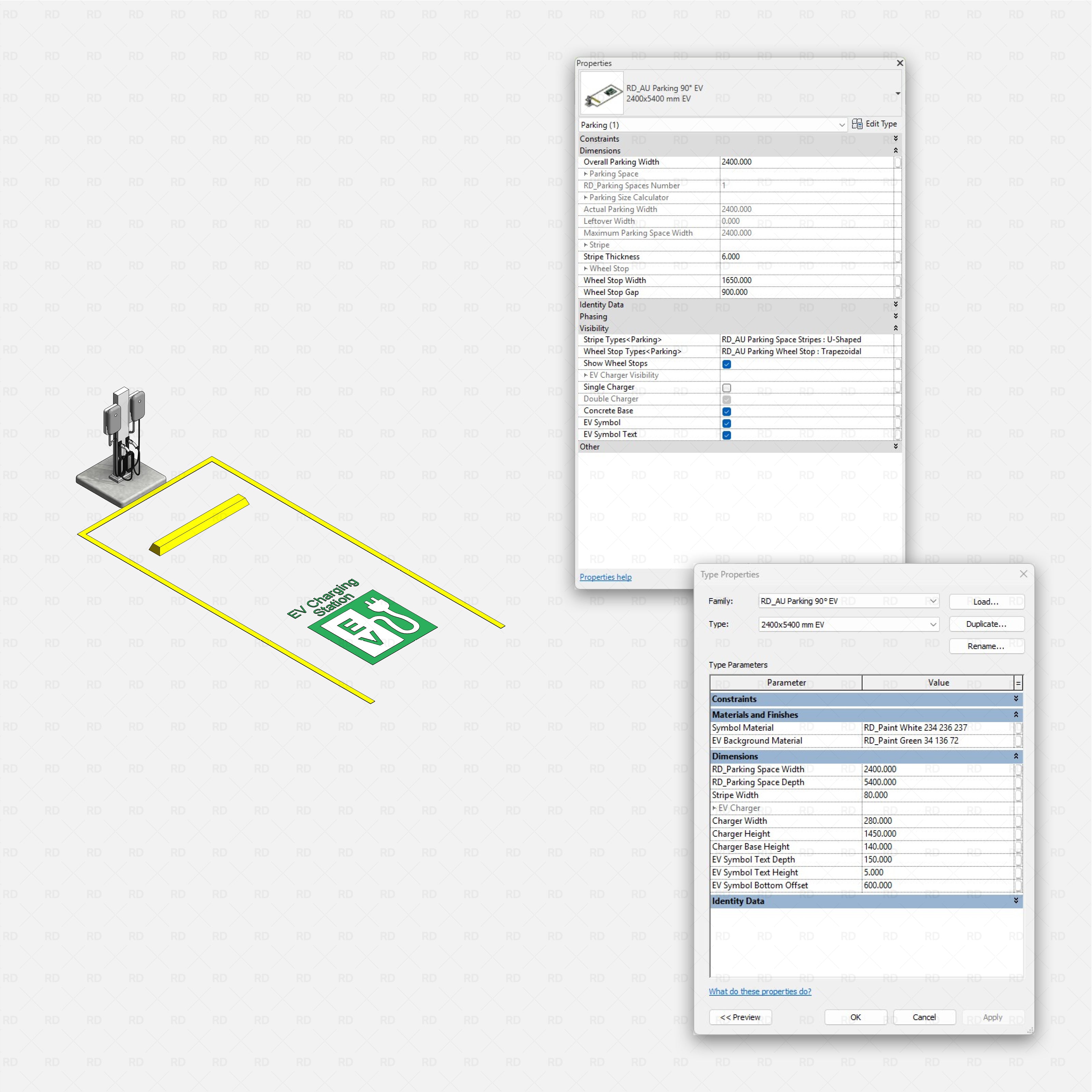

EV Parking Options

Designed for modern developments, the system includes dedicated EV charging parking configurations, helping you easily plan sustainable and future-ready parking areas with clear visual and spatial distinction directly within your site layouts.

Design for the Future

Need to include electric vehicle charging stations? See how quickly a standard stall switches to a dedicated EV parking configuration, complete with distinct visual markers and spatial setups tailored for modern, sustainable site developments.

Parking Stripes Options

Easily control parking stripe visibility and styles, allowing you to switch between different marking configurations for various site conditions and design standards.

Flexible Stripe Customization

Different sites require different markings. Watch how easy it is to control parking stripe visibility and toggle between various marking styles to match specific site conditions and design standards perfectly.

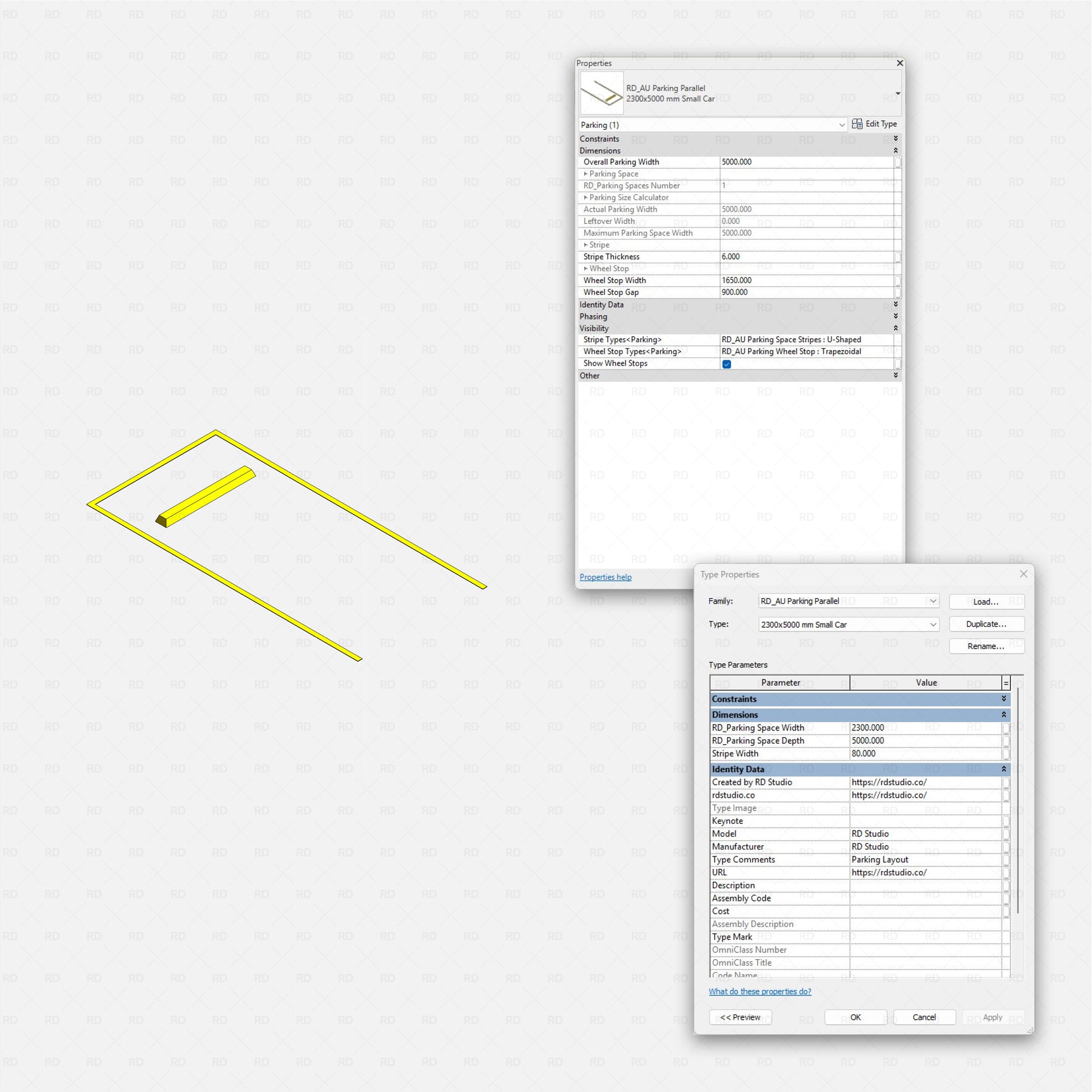

Wheel Stops Options

Add or remove wheel stop elements to improve realism and control vehicle positioning within parking bays, ensuring accurate representation for both design and documentation.

Details that Matter

Bring realism to 3D views and accuracy to documentation. See how effortlessly wheel stops can be adjusted within parking bays using simple parameter toggles.

Detail Level Control

Switch between coarse and fine detail levels to match your workflow - use simplified graphics for clean plans or detailed elements for high-quality presentations and 3D views.

Easy to Schedule Workflow

Designed for efficiency, this system allows you to copy ready-made schedules directly into your project, reducing setup time and ensuring consistency across documentation.

Digital Showroom + Ready-to-Use Tools

Includes a digital showroom file, step-by-step instructions, and pre-built schedules, making it easy to understand, implement, and deploy the system immediately in your Revit projects.

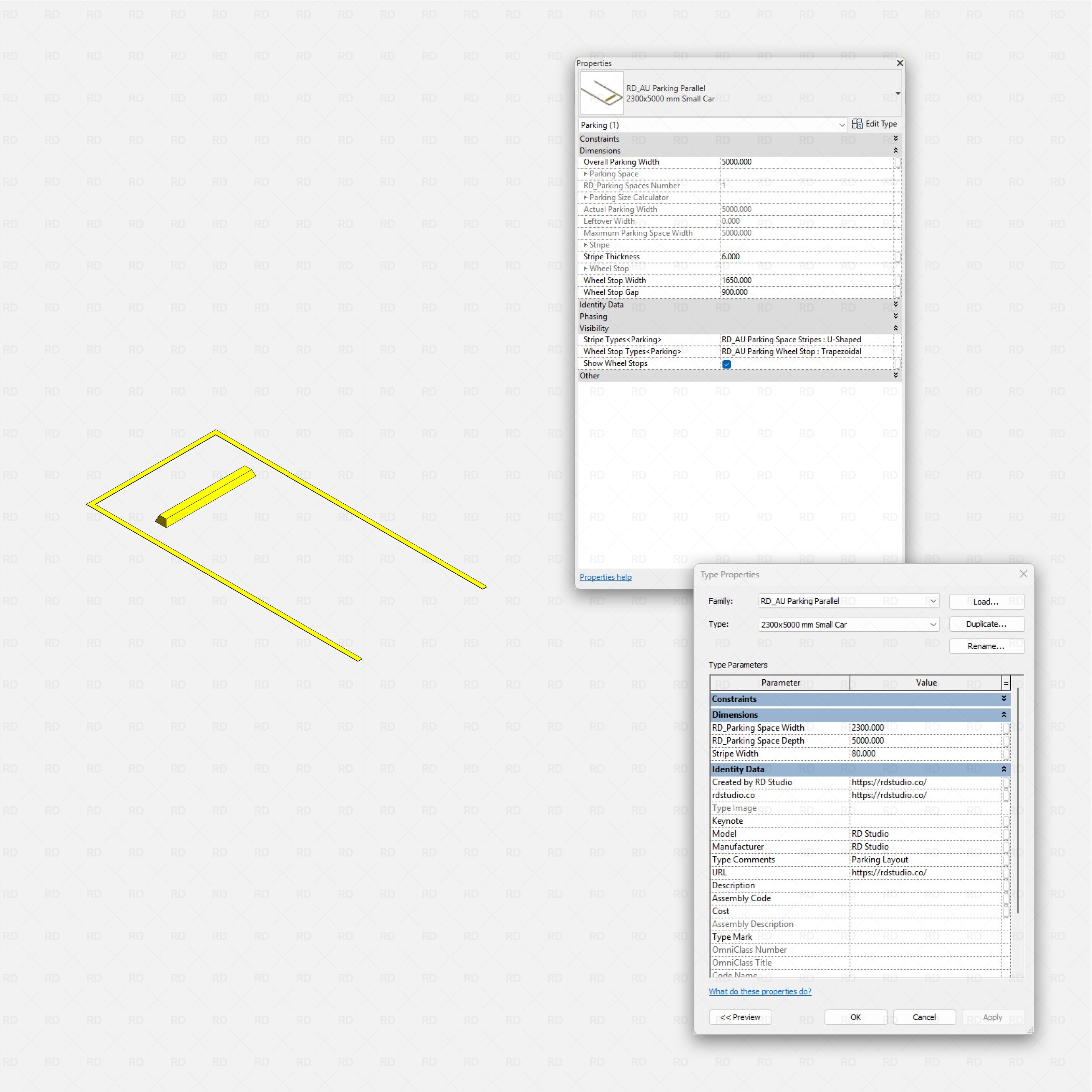

Technical Specifications

• 📐 Work-plane based for precise placement on floors, walls, or custom levels.
• 🎨 Material parameters for full customization and rendering control.
• ⚡ BIM Optimized - Providing clean, lightweight geometry suitable for plans, sections, and 3D visualization without slowing down your master model.

Downloads

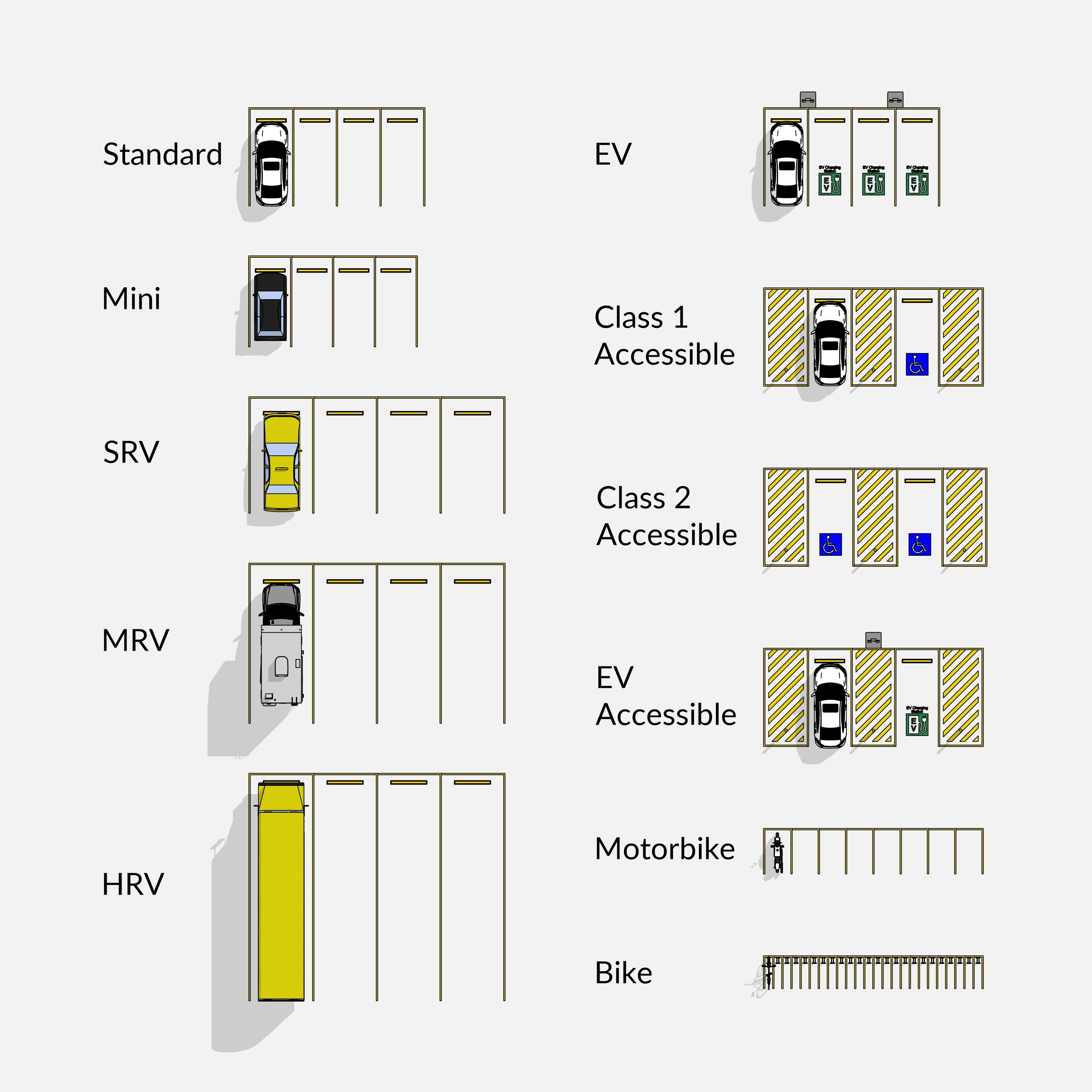

• 📁 Includes: One showroom Revit file + 18 Revit Parking - AU Standard Families.
• 📏 Unit System: Metric and Imperial.
• 💻 Compatibility: Ensure your Revit version supports this product (2020 or newer).
